7

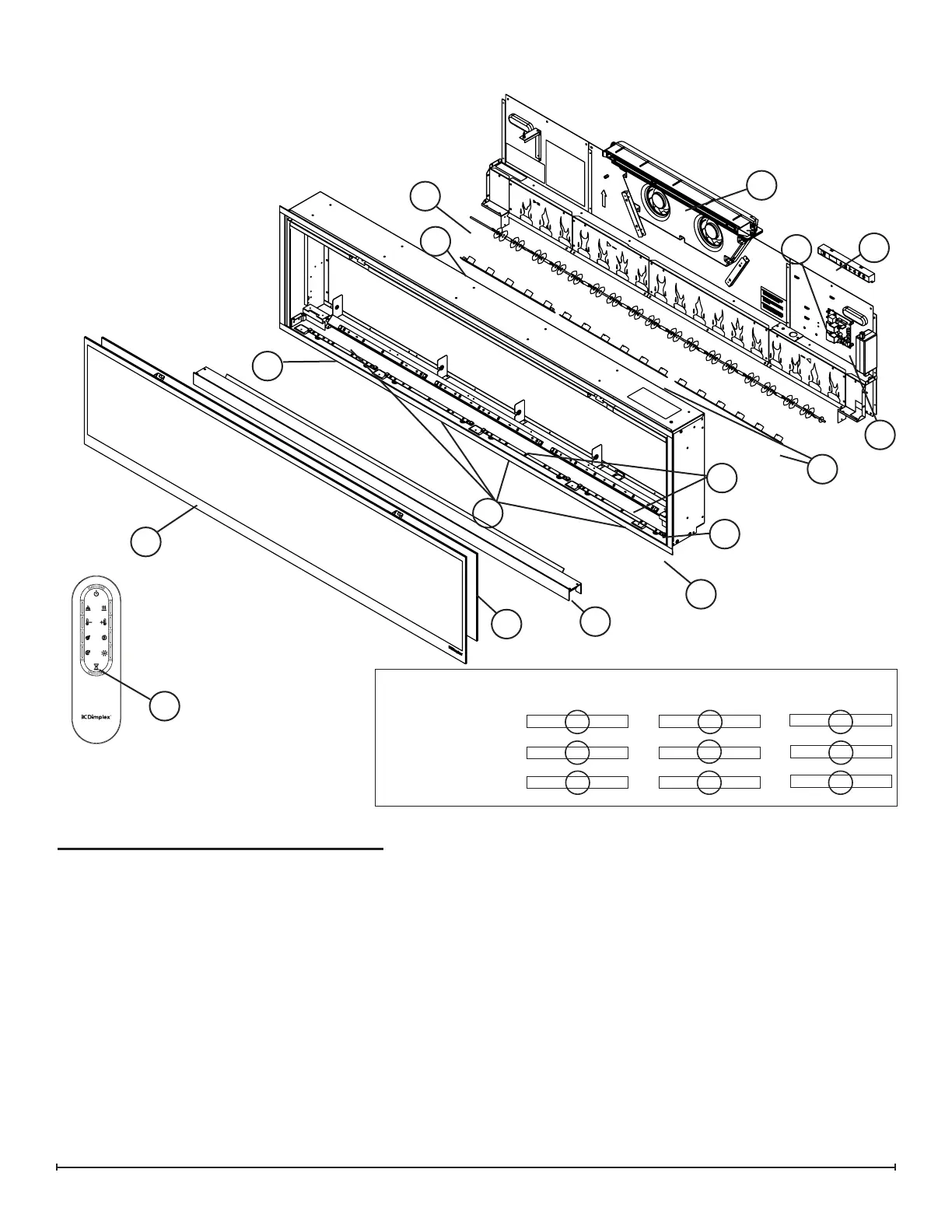

Exploded Parts Diagram - XLF60
1. Heater Assembly (with cutouts) .....2203720300RP
2. Remote Control ..................3001250100RP
3. Main Control Board ...............3001650200RP
MOD A ............... 50002224
4. Capacitive Controls and Display .....3001680200RP
MOD A ............. 500002215
5. Power Supply ...................2100250500RP
6. Thermistor ......................3001560600RP
7. Partially Reective Glass ..........5902890400RP
8. Front Glass .....................5902900200RP
9. Flicker Motor ....................2000480200RP
10. Flicker Assembly ................5902920400RP
11. 5-Light LED Flame Assembly .......3001760300RP
Replacement Parts List - XLF60
12
14
1
2
3
4
10
11
7
13
8
16
9
5
12. 6-Light LED Flame Assembly (2) ....3001760600RP
13. Media Tray .....................5902910400RP
14. 4-Light RGB LED Assembly ........3001960100RP
15. 5-Light RGB Media LED Assembly (4) 3001960200RP
16. 6-Light RGB Media LED Assembly (2) 3001960300RP
17. Mounting Hardware Kit ............9600350100RP
18. Large Acrylic Media ...............1400130300RP
19. Medium Acrylic Media (2) ..........1400150100RP
20. 4-piece Trim ....................9602160200RP
21. Front Glass Screws ...............8099770100RP
22. Screw Covers ...................0442370100RP
23. Power Cord .....................4100360100RP
24. Flicker Assembly Bushing ........ x-8500680100RP
20
15
12
12
16
15
LED Conguration
Flame LED’s (white)
Flame Base (colour)
Media (colour)
11
15 15
16
14
