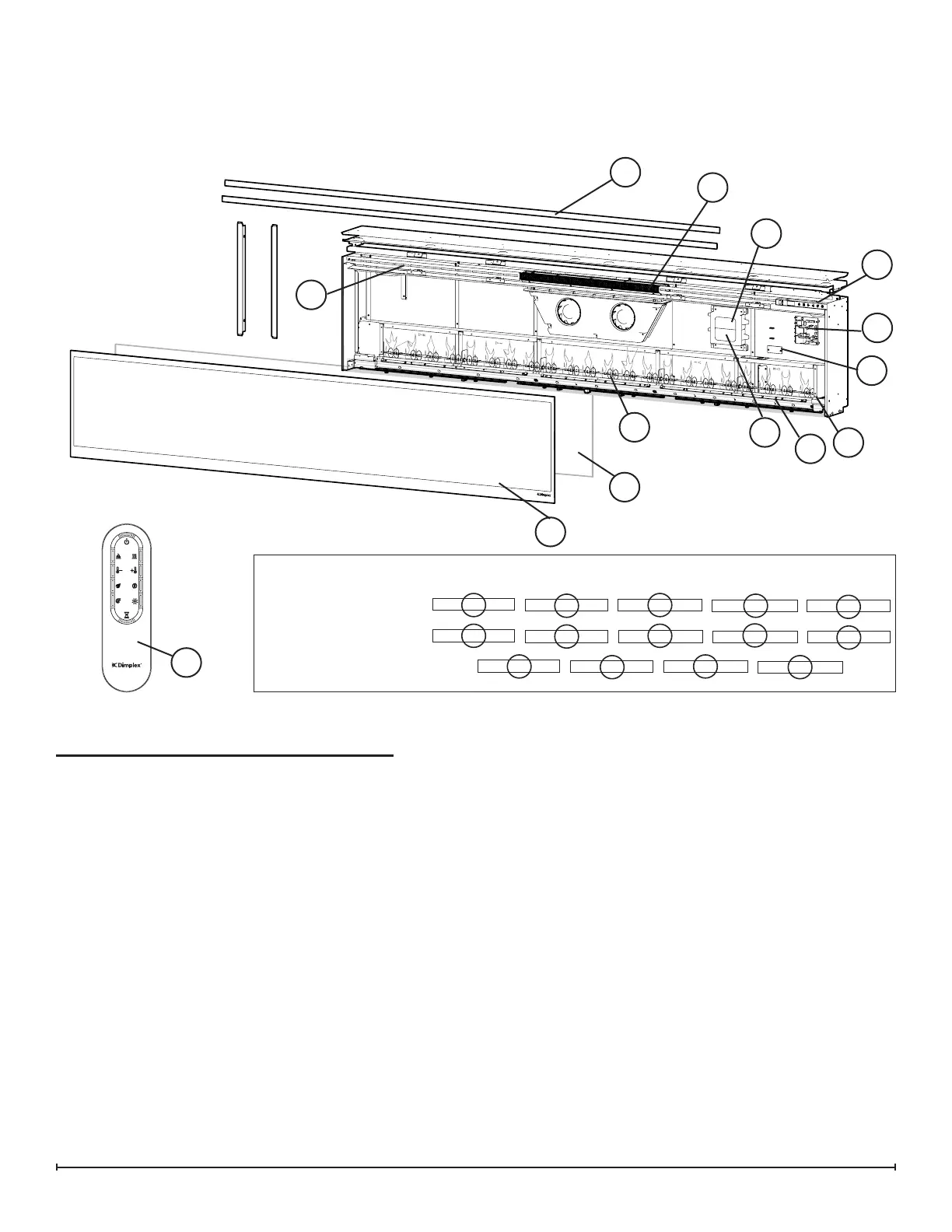

Exploded Parts Diagram - XLF100
Replacement Parts List - XLF100
1. Heater Assembly (with cutouts) ......2203720300RP
2. Remote Control ..................3001250100RP
3. Main Control Board ...............3001650100RP
MOD A & B .........3001650200RP
MOD C+ .............. 500002224
4. Capacitive Controls and Display .....3001680100RP
MOD A & B .........3001680200RP
MOD C+ .............. 500002215
5. Power Supply a) 5 Amp ..........2100250500RP
b) 3 Amp ..........2100250600RP
6. Thermistor ......................3001560700RP
7. Partially Reective Glass ...........5902890300RP
8. Front Glass .....................5902940200RP
9. Flicker Motor ....................2000480200RP
10. Flicker Assembly .................5902920300RP
11. 6-Light LED Flame Assembly (5) .....3001760600RP
12. Media Tray ......................5902910300RP
13. 6-Light RGB Media LED Assembly (5) ... 3001570100RP
MOD B ............. 3001960300RP
14. 8-Light RGB Media LED Assembly (4) ... 3001570300RP
MOD B ............. 3001960400RP
15. Mounting Hardware Kit .............9600350100RP
16. Large Acrylic Media ................1400130200RP
17. Medium Acrylic Media (2) ...........1400150100RP
18. LED Power Distributor ............ 3001720100RP
19. 4-piece Trim .....................9602160400RP
20. Suction cups .....................9600820200RP
21. Front Glass Screws ...............8099770100RP
22. Screw Covers (MOD B) ...........0442370100RP
23. Power Cord (MOD B) .............4100360100RP
24. Flicker Assembly Bushing ........ x-8500680100RP
6
1
2
3
4
18
10
7
12
8
5a
9
5b
11
11
13
13
LED Conguration
Flame LED’s (white)
Flame Base (colour)
Media (colour)
11
14
14
13
11
13
14
11
13
14
19
