9.5 Characteristic curve
temperature sensor indoor unit
9.5.1 Sensor characteristic curves
The temperature sensors to be connected to the heat pump
manager must correspond to the sensor characteristic curve il-
lustrated in Fig. 9.1 on page 29. The only exception is the out-
side temperature sensor included in the scope of supply of the
heat pump (see Fig. 9.2 on page 29)

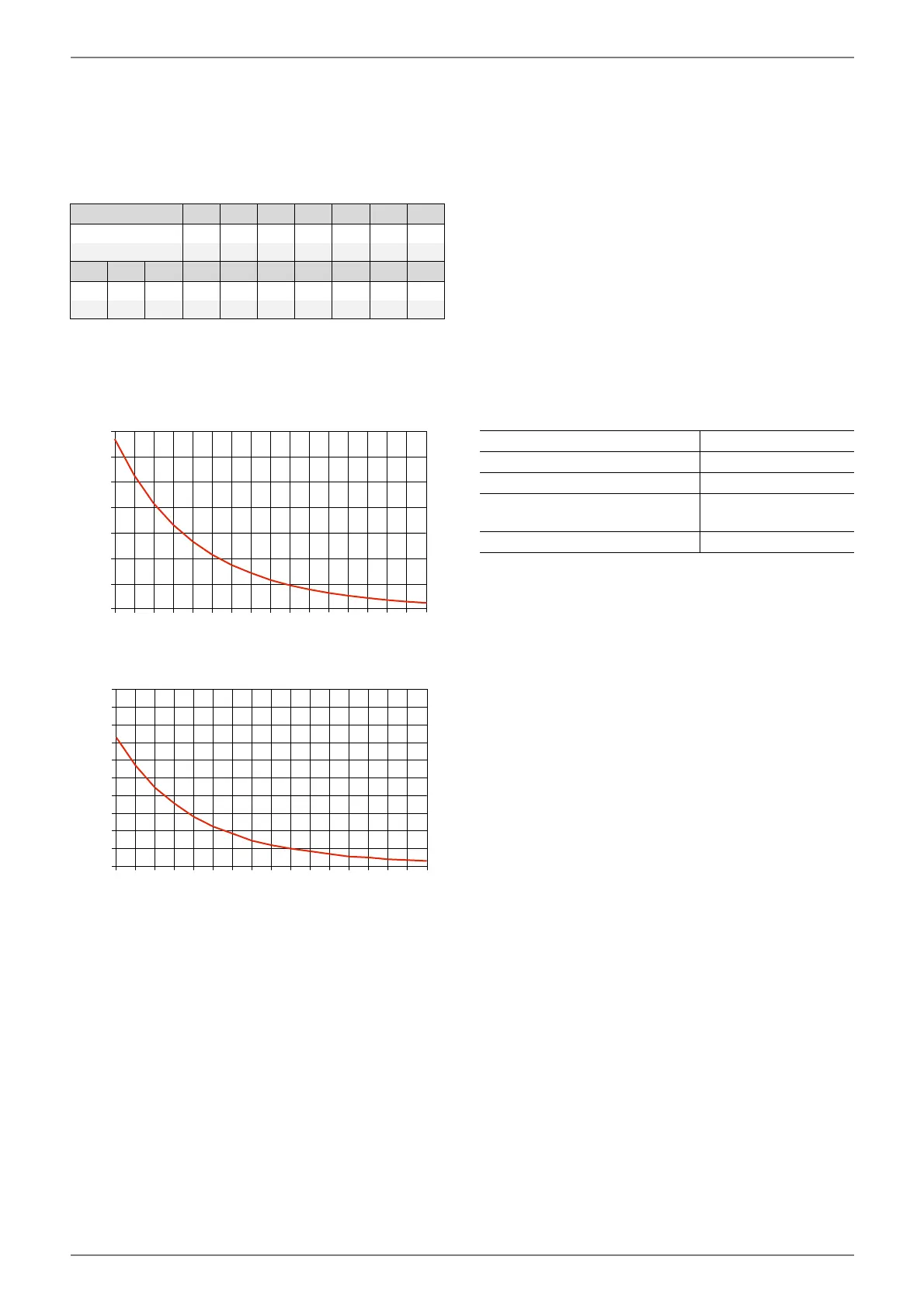

Fig. 9.1: Sensor characteristic curve NTC-10
Fig. 9.2: Sensor characteristic curve NTC-2 according to DIN 44574 Out-
side temperature sensor
9.5.2 Mounting the outside temperature
sensor
The outside temperature is measured via the heat source inlet
sensor on the outdoor unit. Optionally, a separate outdoor tem-
perature sensor can be mounted.
The temperature sensor must be mounted in such a way that all
weather conditions are taken into consideration and the meas-
ured value is not falsified.
Install on the external wall of a heated room, if possible on the
north or north-west side of the building
 Do not install in a "sheltered position" (e.g. in a wall niche or
under a balcony)
 Not in the vicinity of windows, doors, exhaust air vents, ex-
ternal lighting or heat pumps
 Not to be exposed to direct sunlight at any time of year
-
Temperature in °C
-20 -15 -10 -5 0 5 10
NTC-2 in k 14.6 11.4 8.9 7.1 5.6 4.5 3.7
NTC-10 in k 67.7 53.4 42.3 33.9 27.3 22.1 18.0
15 20 25 30 35 40 45 50 55 60
2.9 2.4 2.0 1.7 1.4 1.1 1.0 0.8 0.7 0.6
14.9 12.1 10.0 8.4 7.0 5.9 5.0 4.2 3.6 3.1
0
10
30
40
50
60
70
-20 -15
-10 -5 0
5
10
20
30 4015
25 35
45
50 55
60
20
Temperature [°C]
Resistance value kΩ
0
2
4
6
8
10
12
14
16
18
20
Temperature [°C]
-20 -15
-10 -5 0
5
10
20
30 4015
25 35
45
50 55
60
Resistance value kΩ
Dimensioning parameters sensor cable
Conductor material Cu
Cable length 50 m
Ambient temperature 35 °C
Routing type
B2 (DIN VDE 0298-4 /
IEC 60364-5-52)
External diameter 4-8 mm
