8 www.dimplex.com

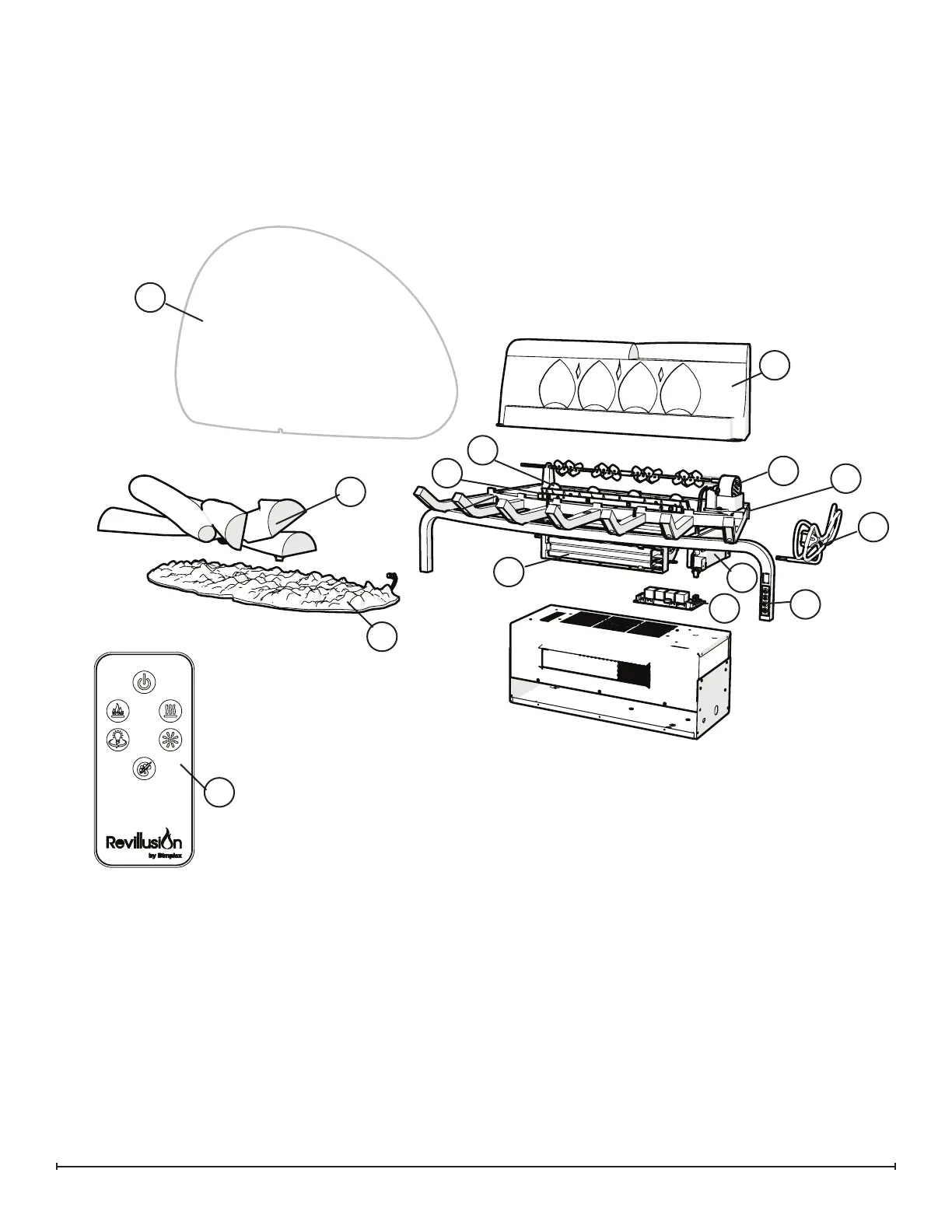

Exploded Parts Diagram - RLG25
10
1
2
3
4
5
11
8
Replacement Parts List - RLG25
1. Logset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0441940100RP
2. Flame LEDs, 4x1W ....................3001760200RP
3. Back Log ............................0441950100RP
4. Mirage™ Flame Panel ..................5902880100RP
5. Flicker Motor, 18RPM, CCW .............2000500900RP
6. Back Light Assembly ...................3001780100RP
7. Coloured Light Assembly (RLG25 only) .....3001570400RP
8. Heater-Blower Assy with Cutout ...........2203730100RP
9. Main Control Board ....................3001740200RP
10. IR Key Board .........................3001750100RP
11. Power Supply .........................2100250100RP
12. Cordset, 3-prong ......................4100190300RP
13. Remote Control .......................6700580200RP
14. Ash Mat ..................................REM-KIT
7
9
6
13
12
14
