Dimplex RLG20BR - Rlg25; Rlg25 Br, Rlg25 Fc

9

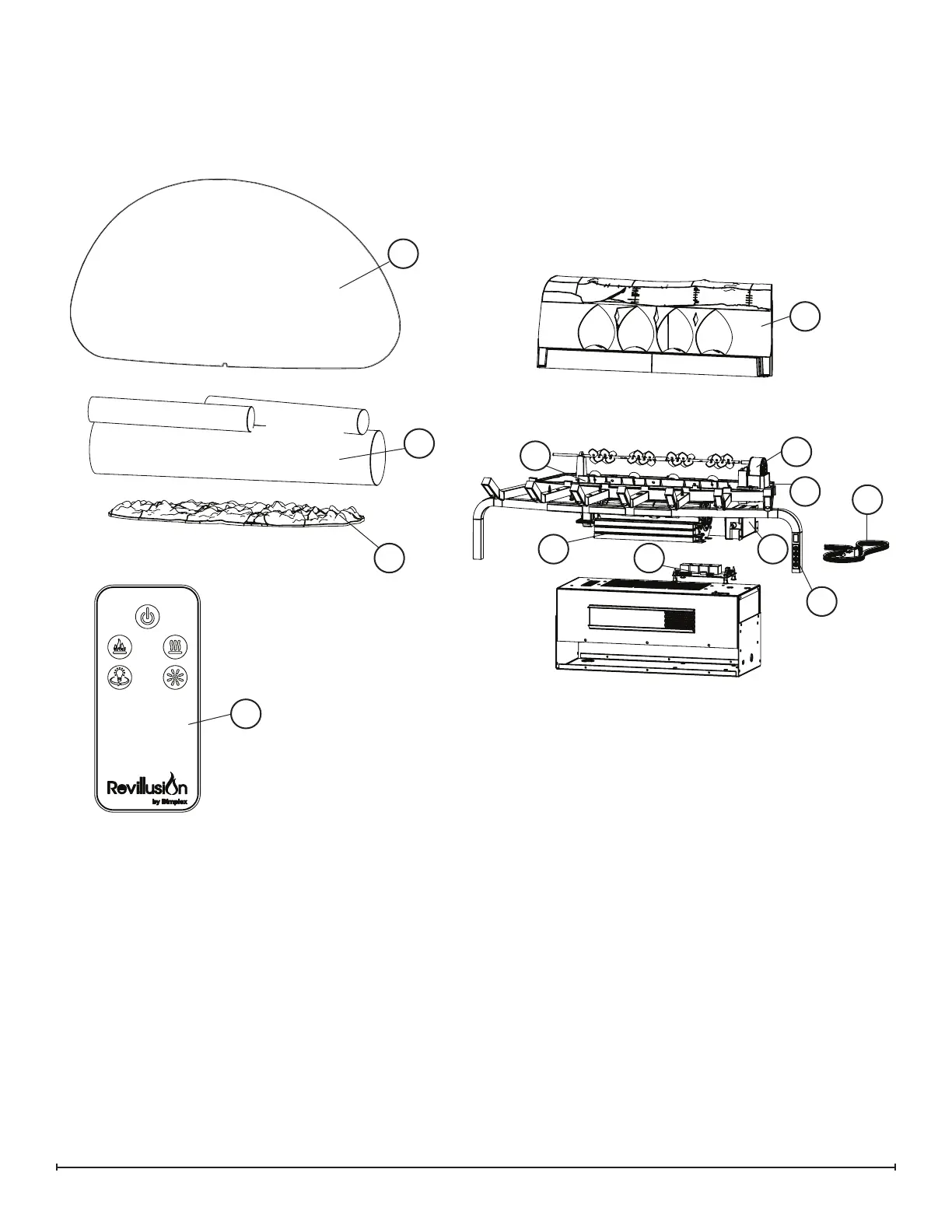

Exploded Parts Diagram RLG25BR, RLG25FC
1. Logset RLG25BR ......................0442610100RP
RLG25FC ......................0442600100RP
2. Flame LEDs, 4x1W ....................3001760200RP
3. Back Log RLG25BR ....................0442760100RP
RLG25FC ....................0442750100RP
4. Mirage™ Flame Panel ..................5902880100RP
5. Flicker Motor, 18RPM, CCW .............2000500900RP
6. Back Light Assembly ...................3001770100RP
7. Heater-Blower Assy with Cutout ...........2203730100RP
8. Main Control Board ....................3001740400RP
9. IR Key Board .........................3001750100RP
10. Power Supply .........................2100250100RP
11. Cordset, 3-prong ......................4100190300RP
12. Remote Control .......................6700580100RP
13. Ash Mat ..................................REM-KIT
Replacement Parts List - RLG25BR, RLG25FC
4
1
13
12
7
2
9
11
10
8
3
5
6
