Dimplex RLG20BR User Manual

7

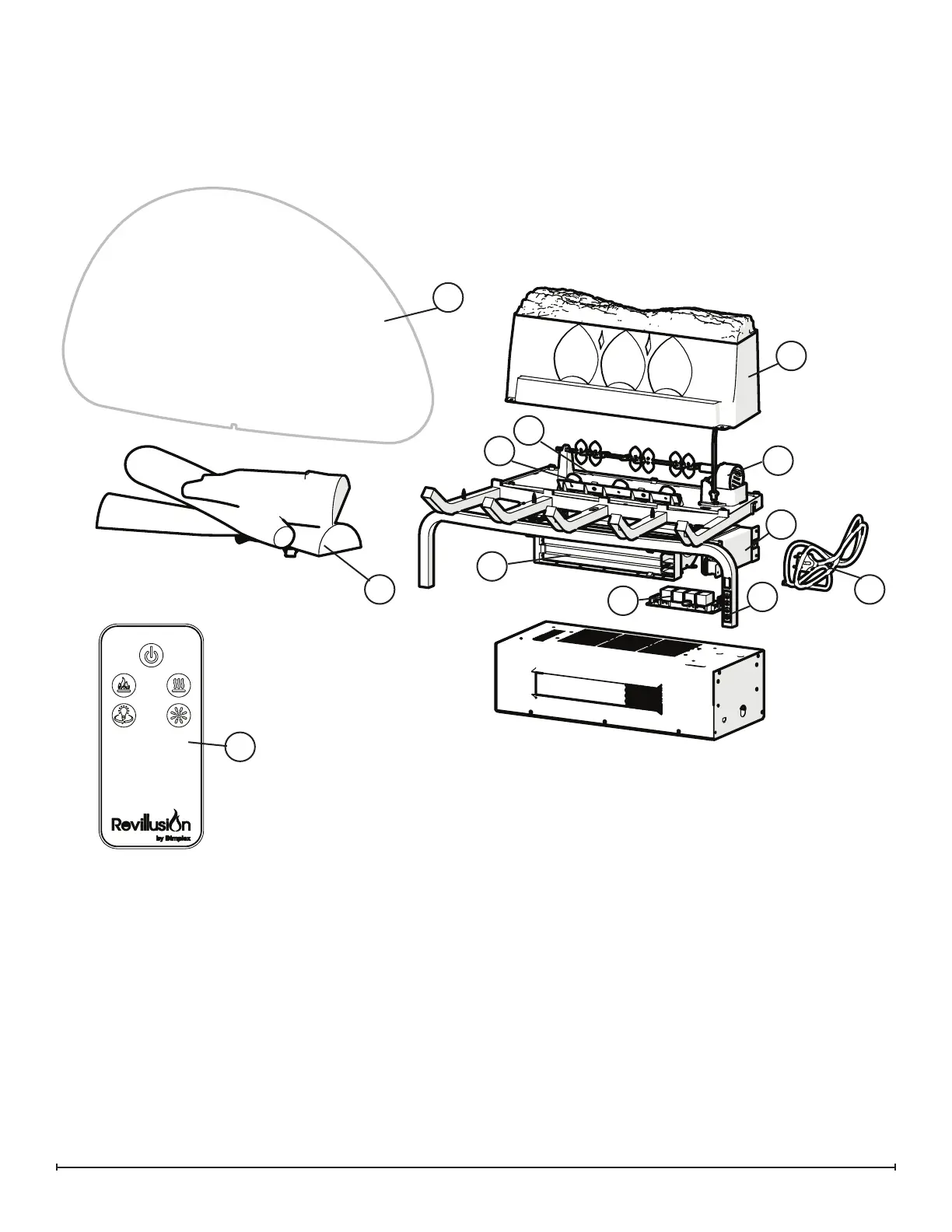

Exploded Parts Diagram - RLG20, RLG20BR, RLG20FC
Replacement Parts List - RLG20, RLG20BR, RLG20FC
1. Logset RLG20 ........................0441910100RP
RLG20BR. . . . . . . . . . . . . . . . . . . . . . 0442780100RP
RLG20FC . . . . . . . . . . . . . . . . . . . . . . 0442770100RP
2. Flame LED Strip RLG20. . . . . . . . . . . . . . . . . 3001760100RP
3. Back Log RLG 20. . . . . . . . . . . . . . . . . . . . . . 0441920100RP
RLG20BR .....................0442740100RP
RLG20FC .................... 0442730100RP
4. Mirage™ Flame Panel ..................5902930100RP
5. Flicker Motor. . . . . . . . . . . . . . . . . . . . . . . . . . 2000500900RP
6. Back Light Assembly ...................3001770100RP
7. Heater-Blower Assy with Cutout. . . . . . . . . . . 2203730100RP
8. Main Control Board ....................3001740100RP
RLG20BR & RLG20FC ...........3001740300RP
9. IR Key Board .........................3001750100RP
10. Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . 2100250100RP
11. Cordset, 3-prong ......................4100190300RP
12. Remote Control .......................6700580100RP
13. Ash Mat (RLG20BR & RLG20FC) ..............REM-KIT
Accessory
14. Ash Mat ..................................REM-KIT
6
1
2
3
4
5
7
8
9
10
11
12

Dimplex RLG20BR Specifications

General

Brand	Dimplex
Model	RLG20BR
Category	Indoor Fireplace
Language	English
