13

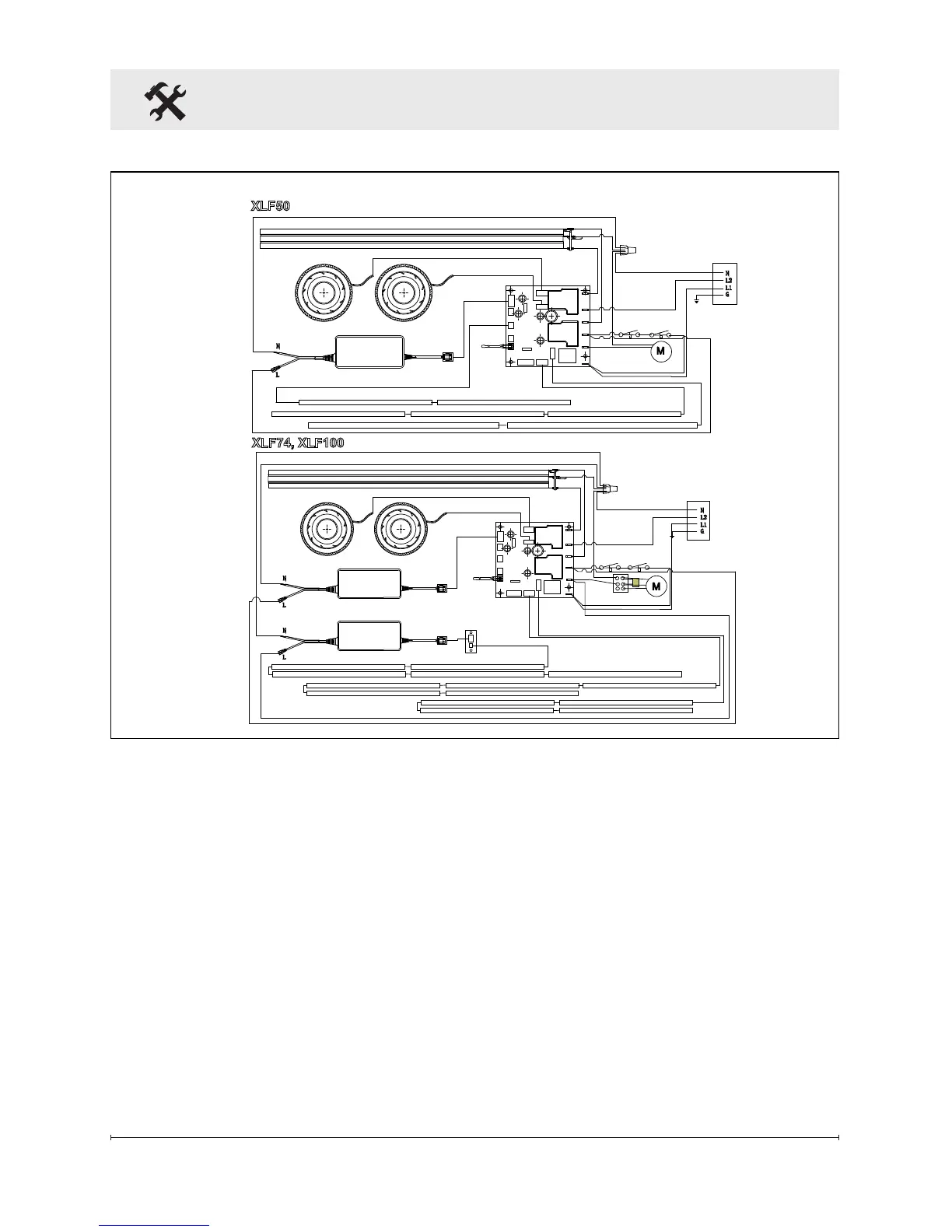

Wiring Diagram
CUTOUTS
THERMAL
CUTOUTS
THERMAL
M
M
FLICKER MOTOR
FLAME LED ASSEMBLY
MEDIA LED ASSEMBLY
MEDIA LED ASSEMBLY
POWER ADAPTER
FAN
FAN
CERAMIC ELEMENT
FLICKER MOTOR
FLAME LED ASSEMBLY
MEDIA LED ASSEMBLY
MEDIA LED ASSEMBLY
POWER ADAPTER
FAN
FAN
CERAMIC ELEMENT
POWER ADAPTER
RELAY BOARD
MAIN CONTROL
BOARD
MAIN CONTROL
BOARD
THERMISTOR
THERMISTOR
XLF50
XLF74, XLF100
