Fireplace Installation

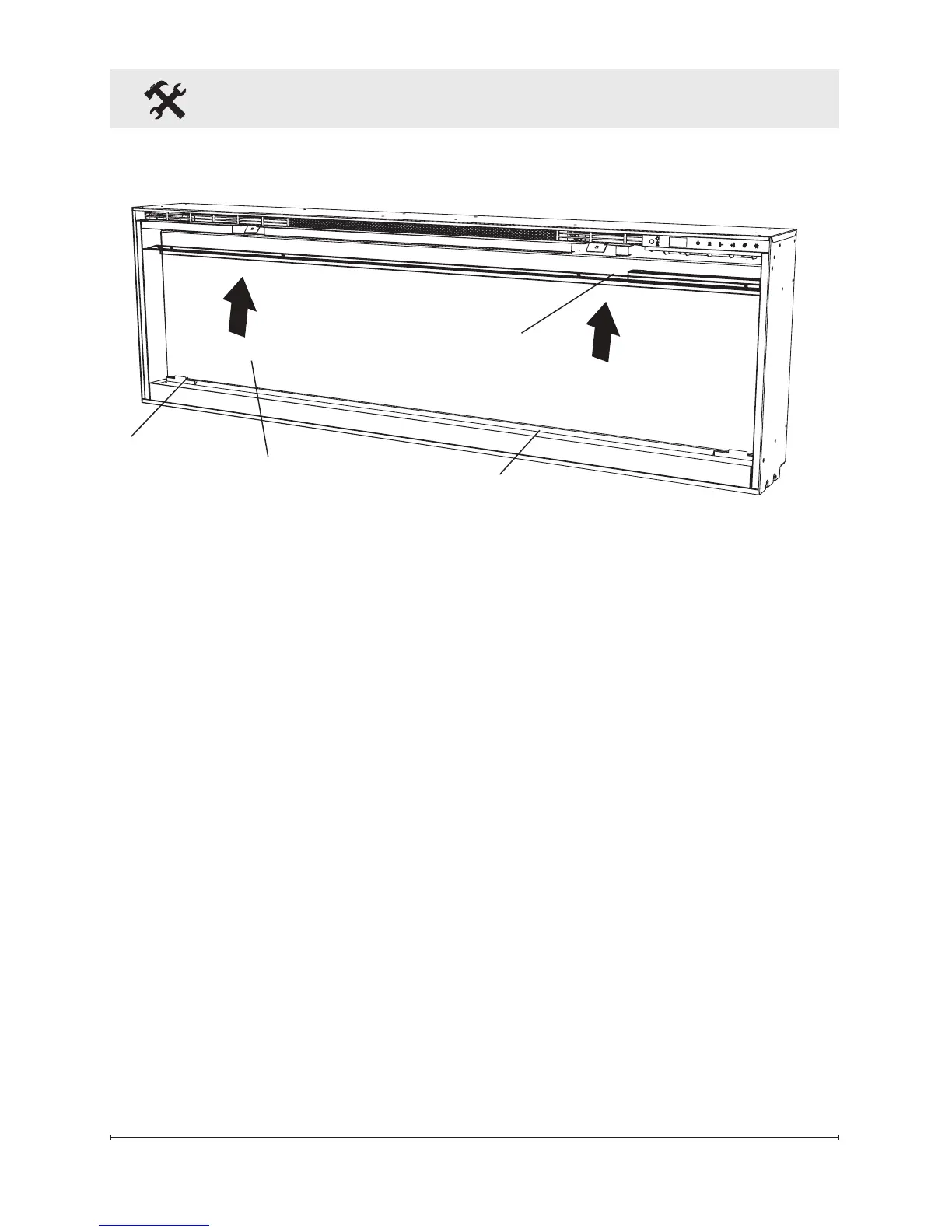

Figure 5
Partially Reective Glass
Retaining Bracket
Media Tray
unit to the L1 wire from the
power supply with a wire nut.
• Connect the L2 wire from the
unit to the L2 wire from the
power supply with a wire nut.
• Connect the N wire from the
unit to the neutral wire from
the power supply.
• Connect the G wire from the
unit to the ground wire from
the power supply with a wire
nut or attach the ground-
ing wire to the cover with the
provided grounding screw, by
placing the wire in-between
screw and lock washer and
tighten (Figure 2).
• Ensure that all wires are se-
cure and do not protrude past
the ame panel, so as not to
Glass Openings
be visible after nal assembly.
• Continue to the nal assembly
instructions.
For Bathroom Use
If this unit is installed in a bath-
room it must be protected by a
GFI receptacle or circuit. If recep-
tacle is used it must be readily
accessible.
To prevent electrical shock this
unit is an electrical appliance that
is NOT watertight and must be
installed as to prevent water from
entering unit. This must be in-
stalled away from showers, tubs,
etc. Never locate replace where
it may fall into a bathtub or other
water container.
