DINGLI S036-RS - Component Legend; Machine Component Identification

OPERATOR’S MANUAL with Maintenance Information
Legend
8

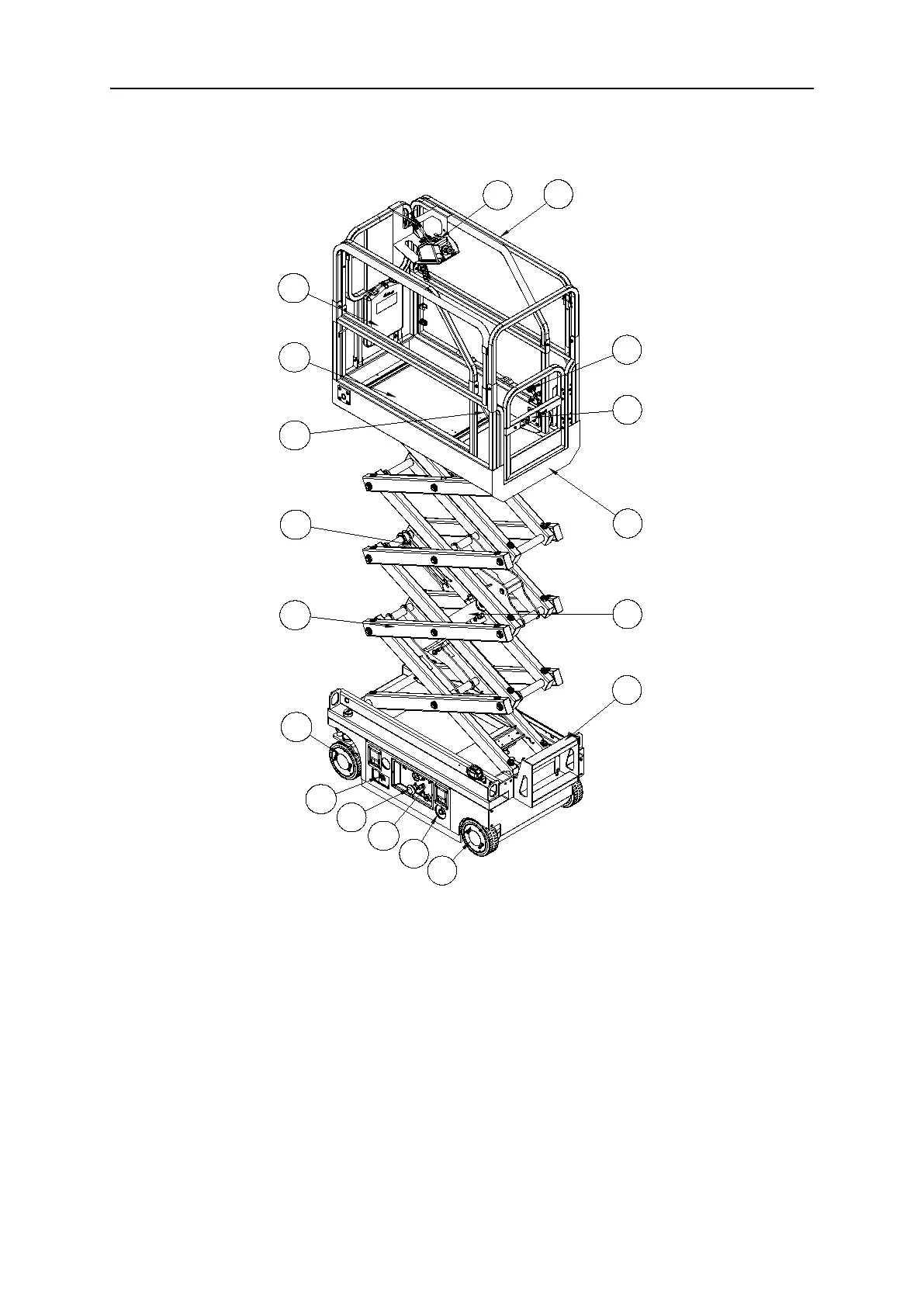

Legend
1 Platform control
2 Platform guard rails
3 Platform extension release pedal
4 Platform entry gate
5 Main platform
6 Lift cylinder
7 Entry ladder
8 Drive wheels
9 Emergency lowering knob
10 Ground control
11 Main power switch
12 Battery charger
13 Main power switch
14 Steer wheels
15 Scissor arms
16 Safety arm
17 Lanyard anchorage point
18 Platform extension
19 Manual storage container
18
2
1
4
5
6
7
8
12
16
15
13
14
17
3
9
10
11
