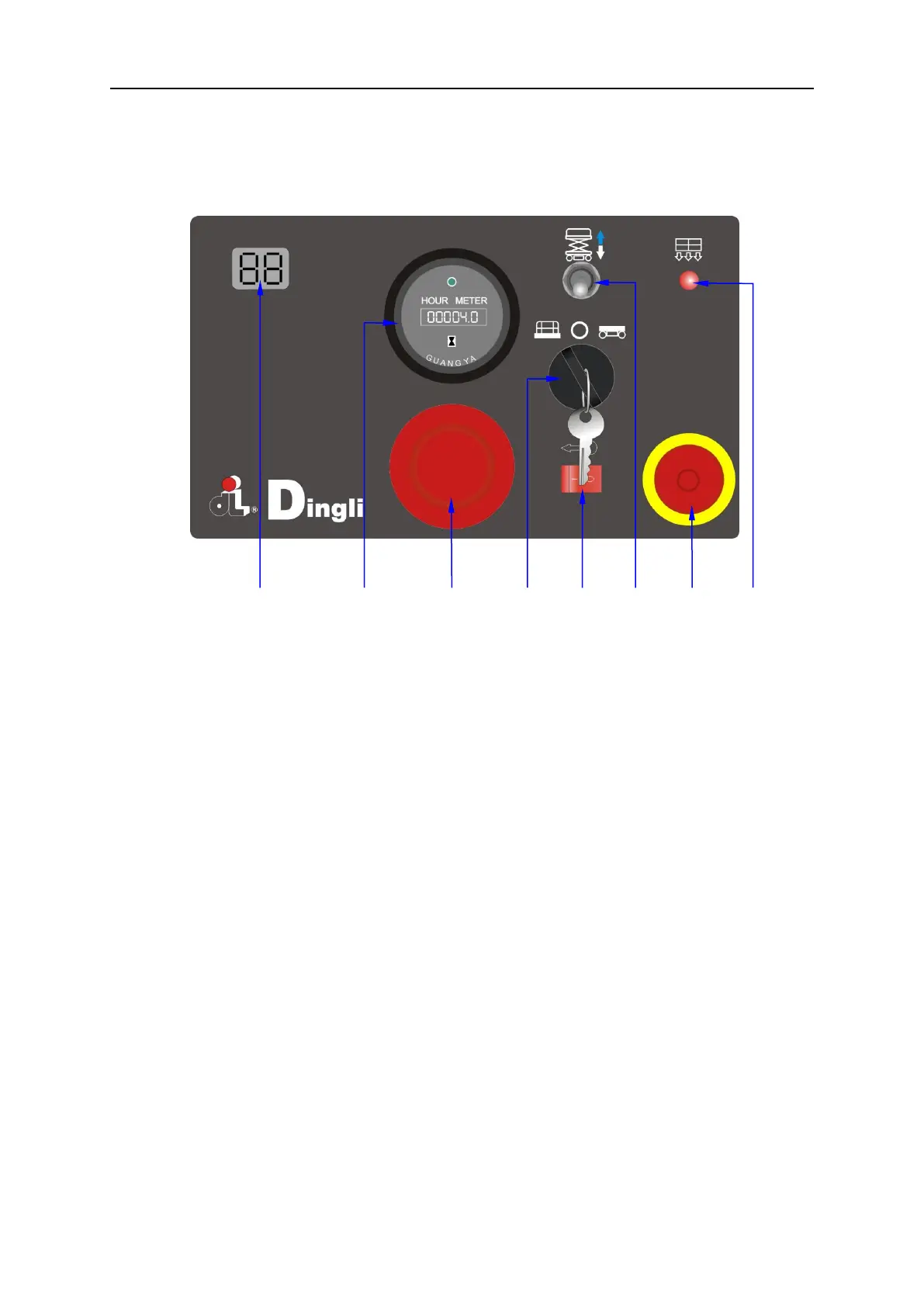

Ground Control Panel
1 LED readout screen
Diagnostic readout
2 Hour meter
The hour meter displays the number of hours
the machine has operated.
3 Main power switch
Push in the Main power switch to turn off the
power. Pull out the Main power switch to turn
on the power.
4 Key switch
Turn the key switch to the platform position
and the platform controls will operate. Turn the
key switch to the off position and the machine
will be off. Turn the key switch to the ground
position and the ground controls will operate.
5 Brake release switch.
Press this switch to “ON” position to activate
the brake release function.
Press this switch.to “OFF” position to turn off
the brake release function.
6 Platform up / down switch
Move the switch up and the platform will raise.
Move the switch down and the platform will
lower.
7 Red Emergency Stop button
Push in the red Emergency Stop button to the
off position to stop all functions. Pull out the
red Emergency Stop button to the on position
to operate the machine.
8 Overload indicator light
Light on indicates when overloaded.
