Assembly
USER_MAN_ENG_TPW_v4

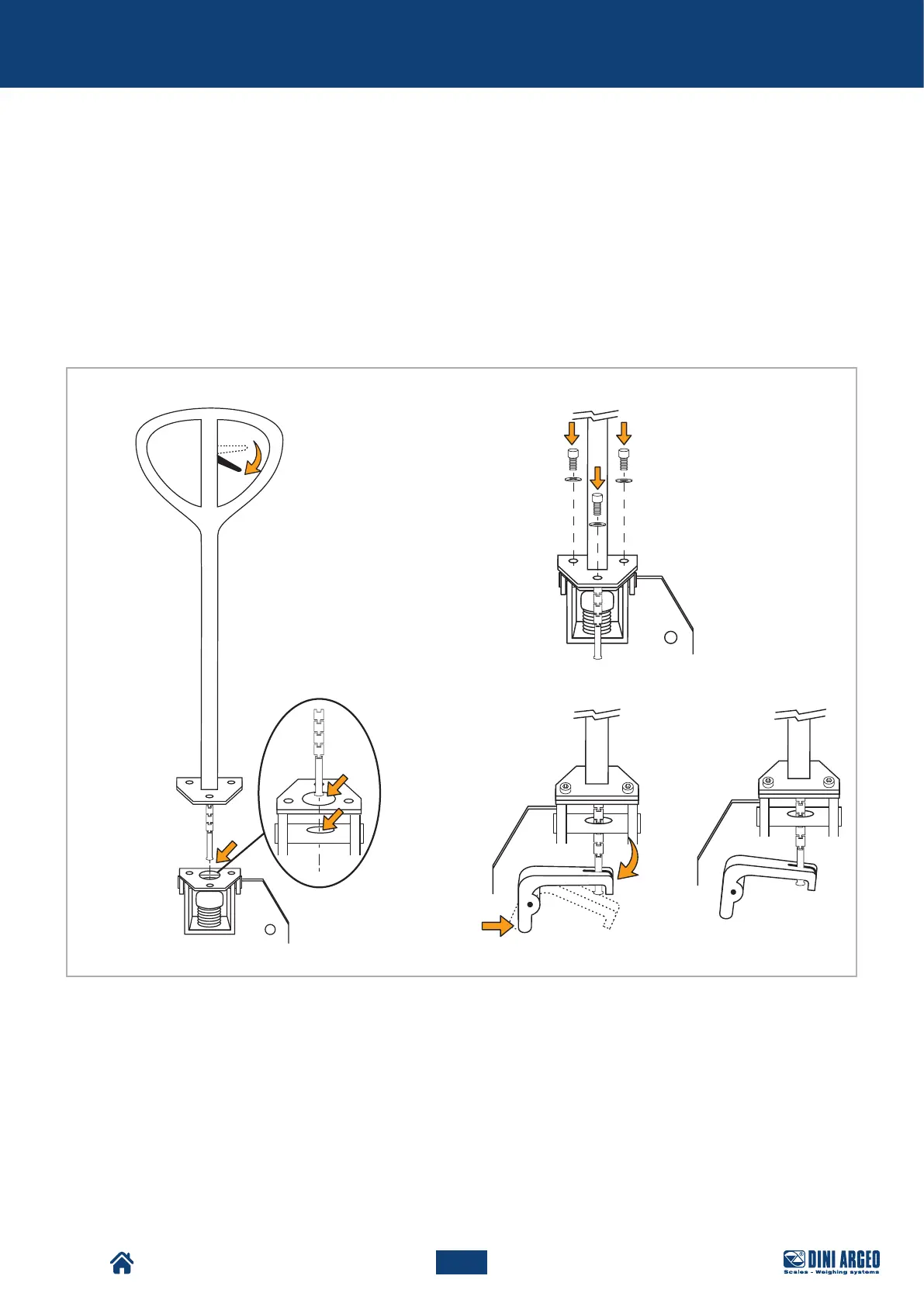

B. Assemble the tiller “version 1” or “version 2”, depending on the pallet truck model purchased.
VERSION 1
B.1. Make sure the lifting lever is in “lowered” position.
B.2. Position the tiller vertically above the carriage, making sure that the chain falls at the hole.
B.3. Fix the tiller to the carriage by using the 3 bolts supplied.
B.4. Hook the chain pin to the specific lever.
