TPW
35
A
B
C
D E F
G H
Assembly
USER_MAN_ENG_TPW_v4

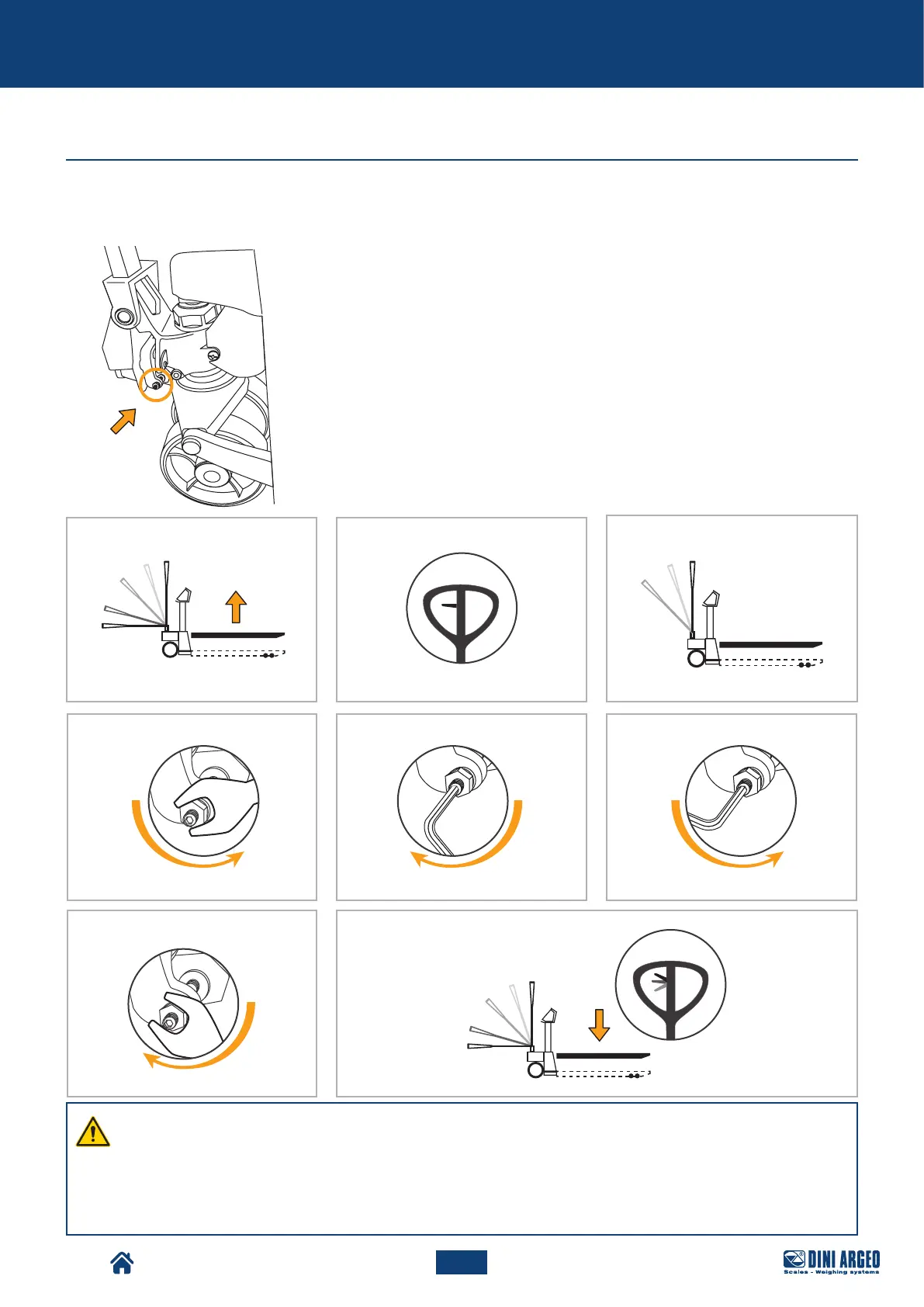

Descent adjustment
The machine is already adjusted for correct operation. However, should it be required to perform descent adjustment,
refer to the procedure described below:
A. Place the forks at the maximum height.
B. Place the tiller control lever in POS. 1 (centre).
C. Make sure the tiller is in the upright position.
D. Unscrew the locknut, to unlock the adjustment screw.
E. Slowly turn the adjustment screw clockwise until the forks start moving
downwards.
F. As soon as the forks start lowering, turn the adjustment screw one and a half
turns anti-clockwise.
G. Tighten the locknut, to lock the adjustment screw.
H. Using the control lever, the downwards movement can be carried out from
any tiller position.
WARNING!
Make sure that with the tiller in its transport position, it is not possible to raise the forks.
Otherwise:
• release the locknut,
• turn it half a turn clockwise,
• tighten the locknut back up again.
