Directed Electronics 3100 User Manual

4
© 2011 Directed Electronics. All rights reserved.

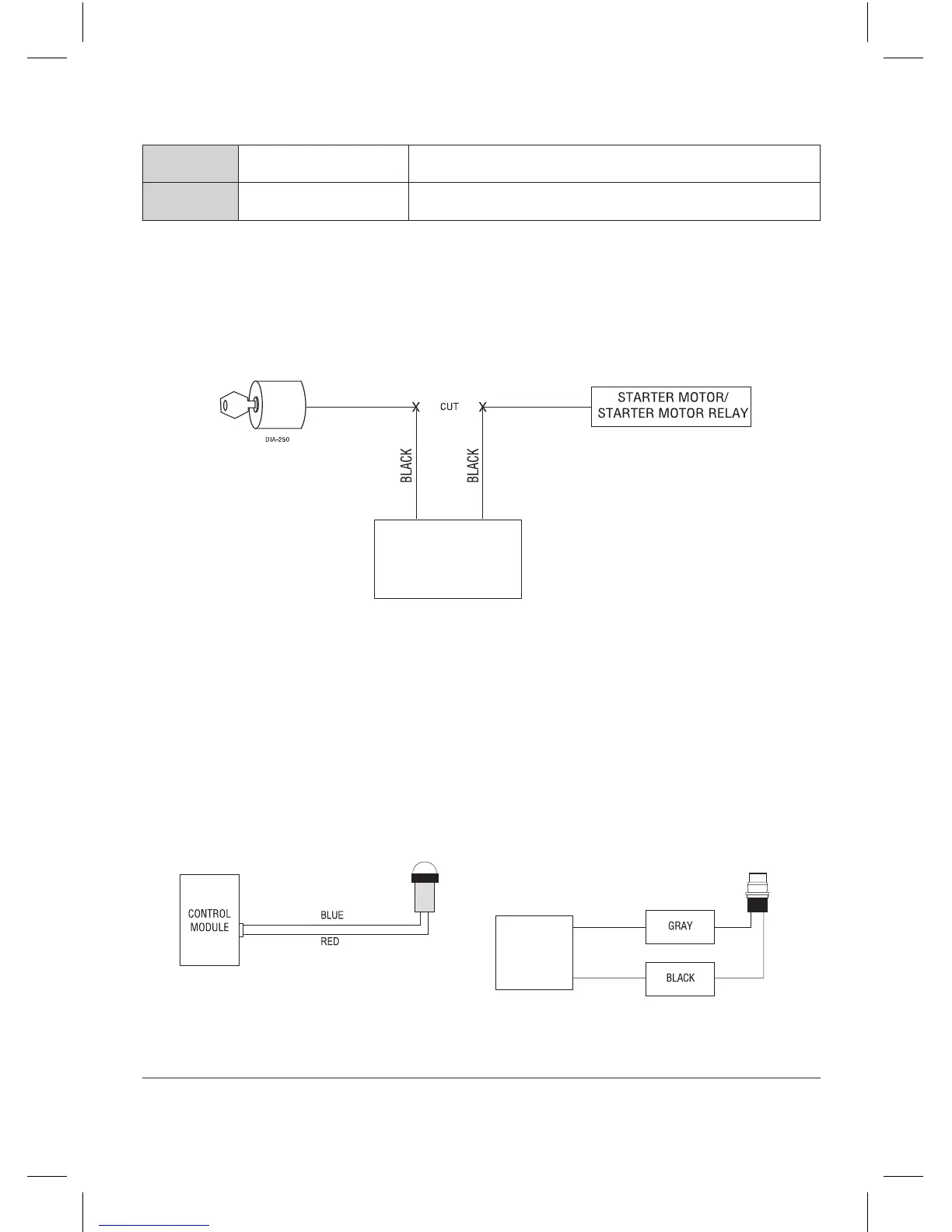

Starter Interrupt Harness (H3)
1 BLACK Starter interrupt input
2 BLACK Starter interrupt output
Use one of these wires as a starter interrupt input and the other as a starter
interrupt output wire
Important: These two black wires are interchangeable.
Control Module
Plug-in LED and Valet Program switch
These plug into the control module. The status LED plugs into the white 2-pin
socket, while the valet program switch plugs into the blue 2-pin connector. The
status LED and valet switch each fit into a 9/32 inch hole.
Control
Module
Blue 2-pin port
Valet Program
button
White 2-pin port
LED
