Onboard Dual Stage Zone 2 Impact Sensor

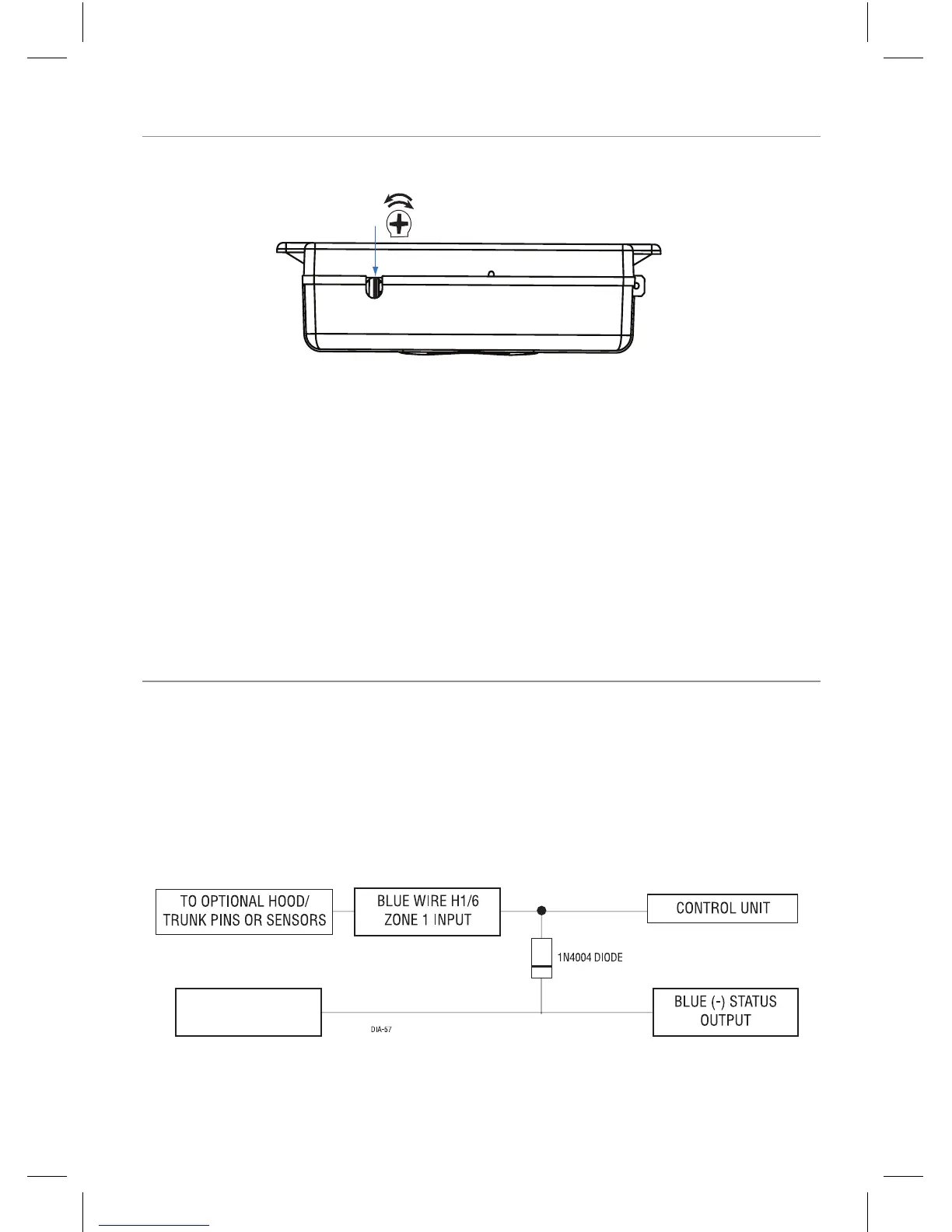

There is a dual-stage impact sensor inside the control unit. Adjustments are
made via the rotary control as indicated above. Since the impact sensor does
not work well when mounted firmly to metal, we recommend against screwing
down the control module. We recommend mounting the control module to a
large wiring loom.
Important:
When adjusting the sensor, it must be mounted in the same loca-
tion where it will be after the installation is completed. Adjusting the sensor
and then relocating the module requires readjustment.
Bypassing Sensor Inputs
Sensors can be bypassed during auxiliary channel and add-on accessory op-
erations. During an auxiliary channel output apply ground to the H1/6 wire,
the sensors will be bypassed and will not trigger the alarm until several seconds
after the ground ceases. This is ideal for add-on remote starters and window
control modules:
ADD-ON REMOTE
START UNIT
Impact sensor adjuster
