403.VW08 1.35 2020 Audi Q7 (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Immobilizer interface
For vehicles with Keyless Entry you must remove battery from OEM key (the OEM remote may differ from
the models shown in the illustrations).
1412
10
42
Common Relay 2 (conn. side): Yellow/Red: 11
N.C Relay 2 (veh. side): Orange/Red: 10
N.O. Relay 2: Brown/Red: 12

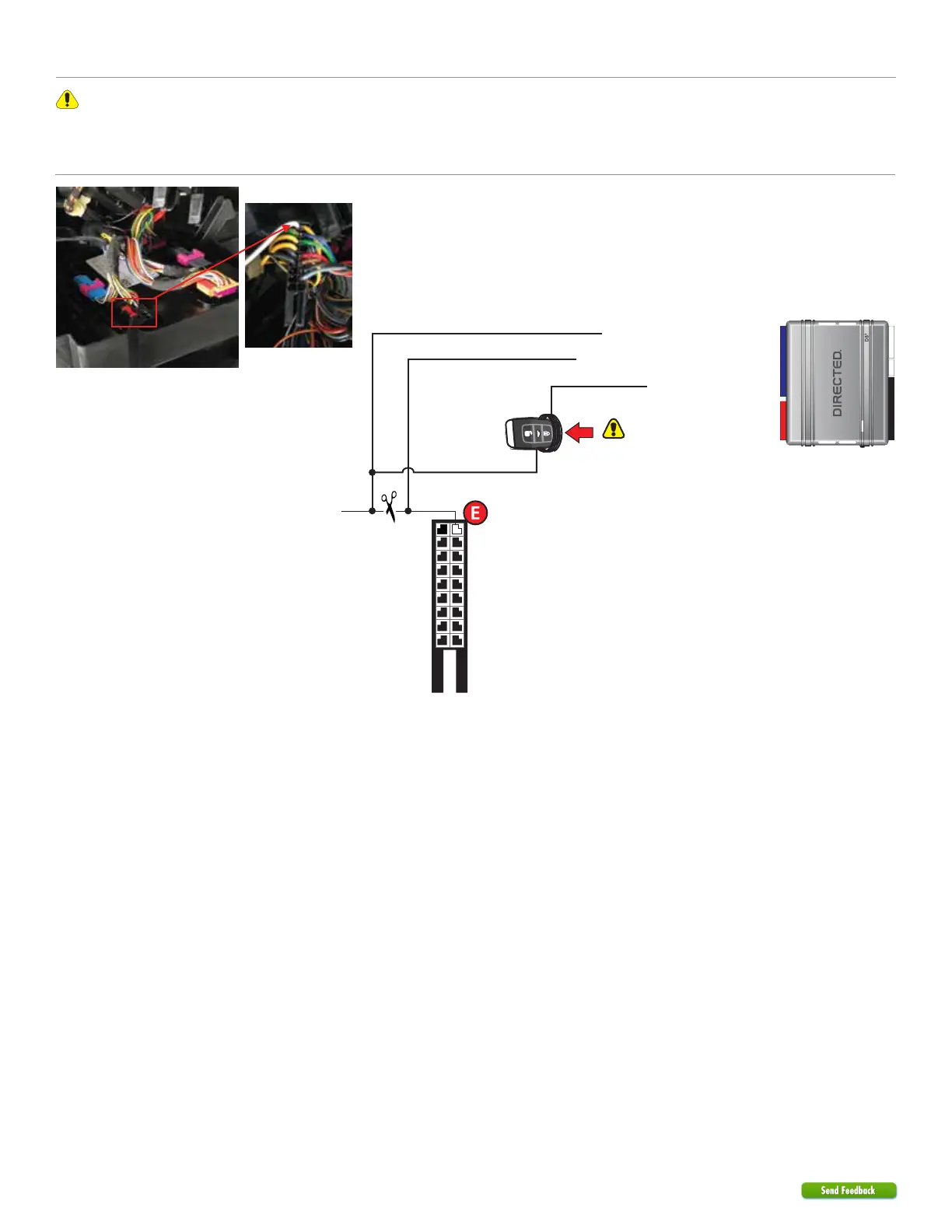

Immobilizer interface (alternative installation)
For vehicles with Keyless Entry you must remove battery from OEM key (the OEM remote may differ from
the models shown in the illustrations).
Key Wrap for Push-to-Start (PTS)
Remove battery
from OEM
Remote Control
4-6 loops
- Test and secure mounted loops before reassembling the vehicle.
- Make 4-6 loops and place them around the front of the plastic body of the vehicle’s coded key as shown above.
- Make connections to the OEM Immobilizer Receiver as shown above.
Note: OEM Immobilizer receiver is located in
center console near the arm rest.
This diagram shows the alternative location and connections.
IMMO Antenna:
Yellow, pin 11
Cut
11
To Next Page
