11
DS4+ FORD6
© 2017-12-13 Directed. All rights reserved.

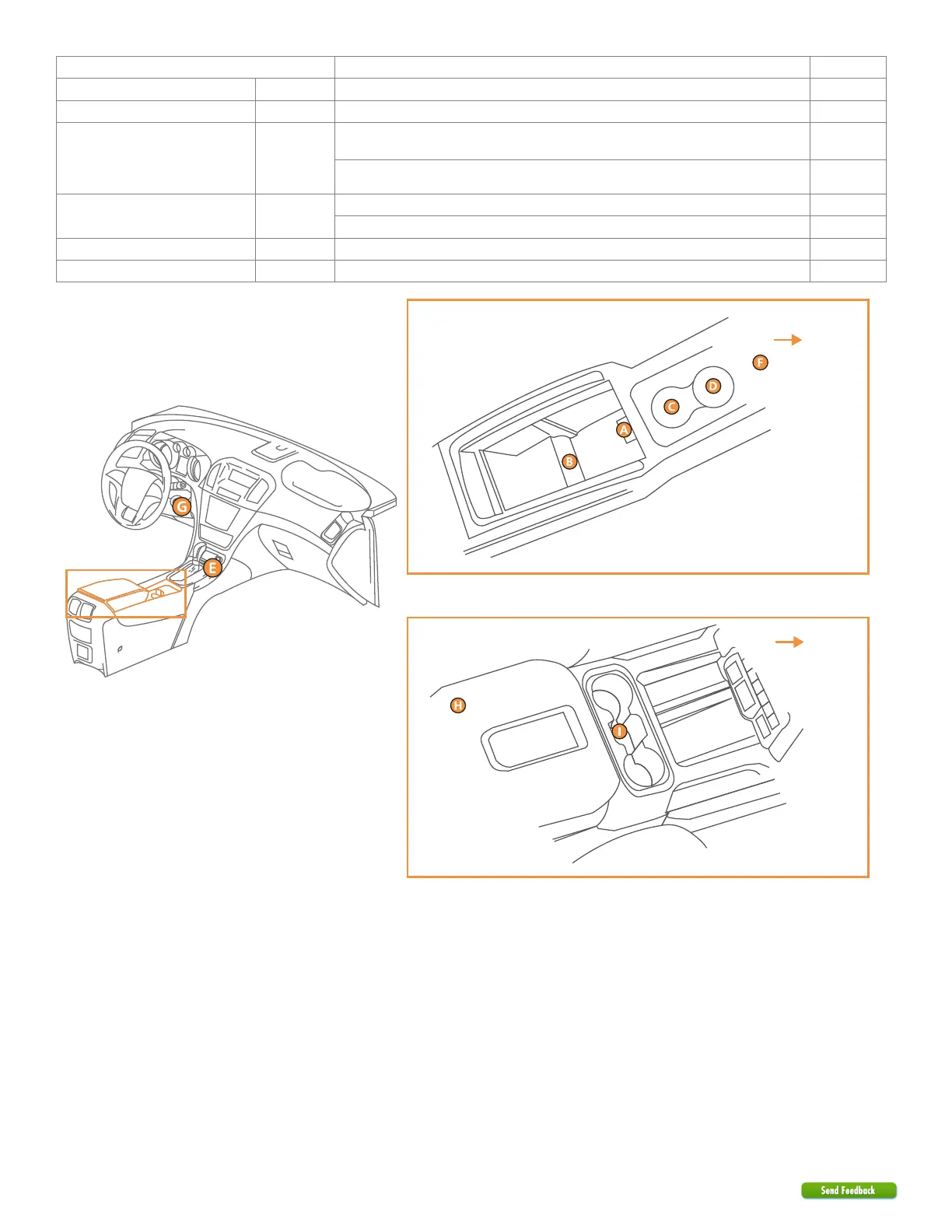

Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Ford Explorer 2008-2010
RX Violet/Gray 4 Data (PATS) connector. Black 4 A
TX Yellow/Orange 3 Data (PATS) connector. Black 4 A
12V Violet/Red 4 (+) Ignition switch. Black 7 B
Starter Blue/White 7 (+) Ignition switch. Black 7 B
Ignition White/Orange 1 (+) Ignition switch. Black 7 B
Accessory Violet/Green 6 (+) Ignition switch. Black 7 B
Keysense Blue/Gray 5 (+) Ignition switch. Black 7 B
HS CAN High White/Blue 6 Data OBDII. Black 16 C
HS CAN Low White 14 Data OBDII. Black 16 C
MS CAN High Gray/Orange 3 Data OBDII. Black 16 C
MS CAN Low Violet/Orange 11 Data OBDII. Black 16 C
Parking Lights Blue/White 11 (+) Fuse/SJB under drivers dash. Brown 32 H
Driver Door Trigger Green/Violet 17 Cut Fuse/SJB (Smart Junction Box) under
drivers dash.
Black 32 G
Lock Gray/Yellow 27 (-) Fuse/SJB under drivers dash. Black 32 G
Unlock Yellow/Violet 8 (-) Fuse/SJB under drivers dash. Black 32 G
Tach Not Violet N/A (AC) Any fuel injector. N/A N/A N/A
Ford Explorer 2011-2015
RX Violet/Red or Violet 4 Data (PATS) connector. Black 4 A
TX Yellow/Orange or Yellow 3 Data (PATS) connector. Black 4 A
12V Green/Red 4 (+) Ignition switch. Black 7 B
Starter Blue/White 7 (+) Ignition switch. Black 7 B
Ignition White/Orange 1 (+) Ignition switch. Black 7 B
Accessory Violet/Green 6 (+) Ignition switch. Black 7 B
Keysense Blue/Gray 5 (+) Ignition switch. Black 7 B
Power Liftgate Gray/Yellow 7 (-) Power liftgate switch. Black 8 F
Parking Lights Yellow/Blue 6 (+) BCM under drivers dash. Gray 10 H
HS CAN High White/Blue 6 Data OBDII. Black 16 C
HS CAN Low White 14 Data OBDII. Black 16 C
MS CAN High Gray/Orange 3 Data OBDII. Black 16 C
MS CAN Low Violet/Orange 11 Data OBDII. Black 16 C
Driver Door Trigger Green/Violet 9 Cut BCM under drivers dash. Black 26 G
Lock Blue/Green 6 (-) BCM under drivers dash. Black 26 G
Unlock Yellow/Violet 8 (-) BCM under drivers dash. Black 26 G
Tach Green/Blue, Gray/Yellow,
Violet/Gray, Yellow/
Orange, Brown or Green/
White
1 (AC) Any fuel injector. Black 2 N/A
