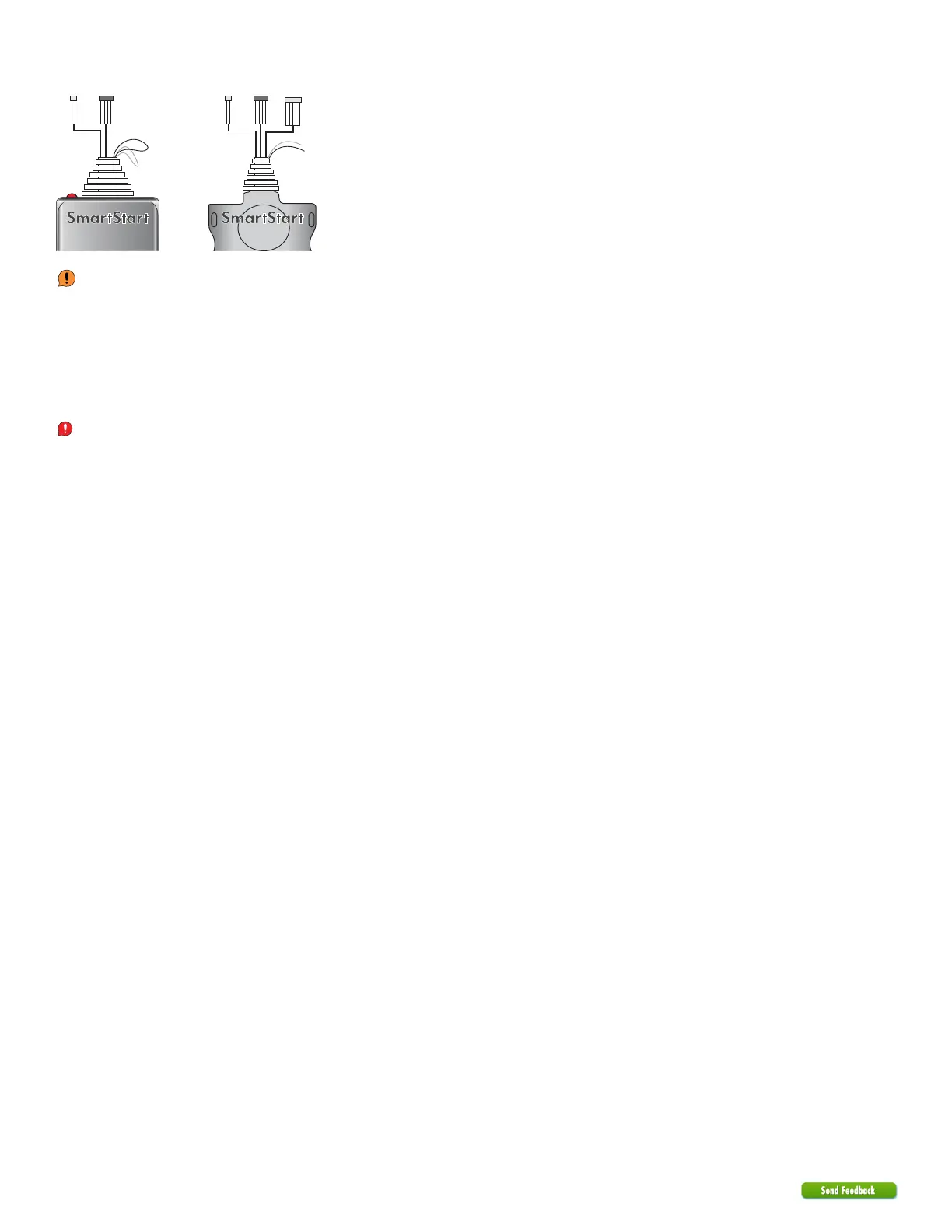

DS4+ FORD6

Wire Information Connector Information

Function Color Pin Polarity Location Color Pins Ref.

Mercury Mountaineer 2008-2010

RX Violet/Gray 4 Data (PATS) connector. Black 4 A

TX Yellow/Orange 3 Data (PATS) connector. Black 4 A

12V Violet/Red 4 (+) Ignition switch. Black 7 B

Starter Blue/White 7 (+) Ignition switch. Black 7 B

Ignition White/Orange 1 (+) Ignition switch. Black 7 B

Accessory Violet/Green 6 (+) Ignition switch. Black 7 B

Keysense Blue/Gray 5 (+) Ignition switch. Black 7 B

HS CAN High White/Blue 6 Data OBDII. Black 16 C

HS CAN Low White 14 Data OBDII. Black 16 C

MS CAN High Gray/Orange 3 Data OBDII. Black 16 C

MS CAN Low Violet/Orange 11 Data OBDII. Black 16 C

Parking Lights Blue/White 11 (+) Fuse/SJB (Smart Junction Box) under

drivers dash.

Brown 32 G

Driver Door Trigger Green/Violet 17 Cut Fuse/SJB under drivers dash. Black 32 H

Lock Gray/Yellow 27 (-) Fuse/SJB under drivers dash. Black 32 H

Unlock Violet/Gray 26 (-) Fuse/SJB under drivers dash. Black 32 H

Trunk/Hatch Release Brown 29 (-) Fuse/SJB under drivers dash. Black 32 H

Tach NOT Violet N/A (AC) Any fuel injector. N/A N/A N/A
