933.GM9 2.46.198.9 2022 Chevrolet Equinox (Smart Key)
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).

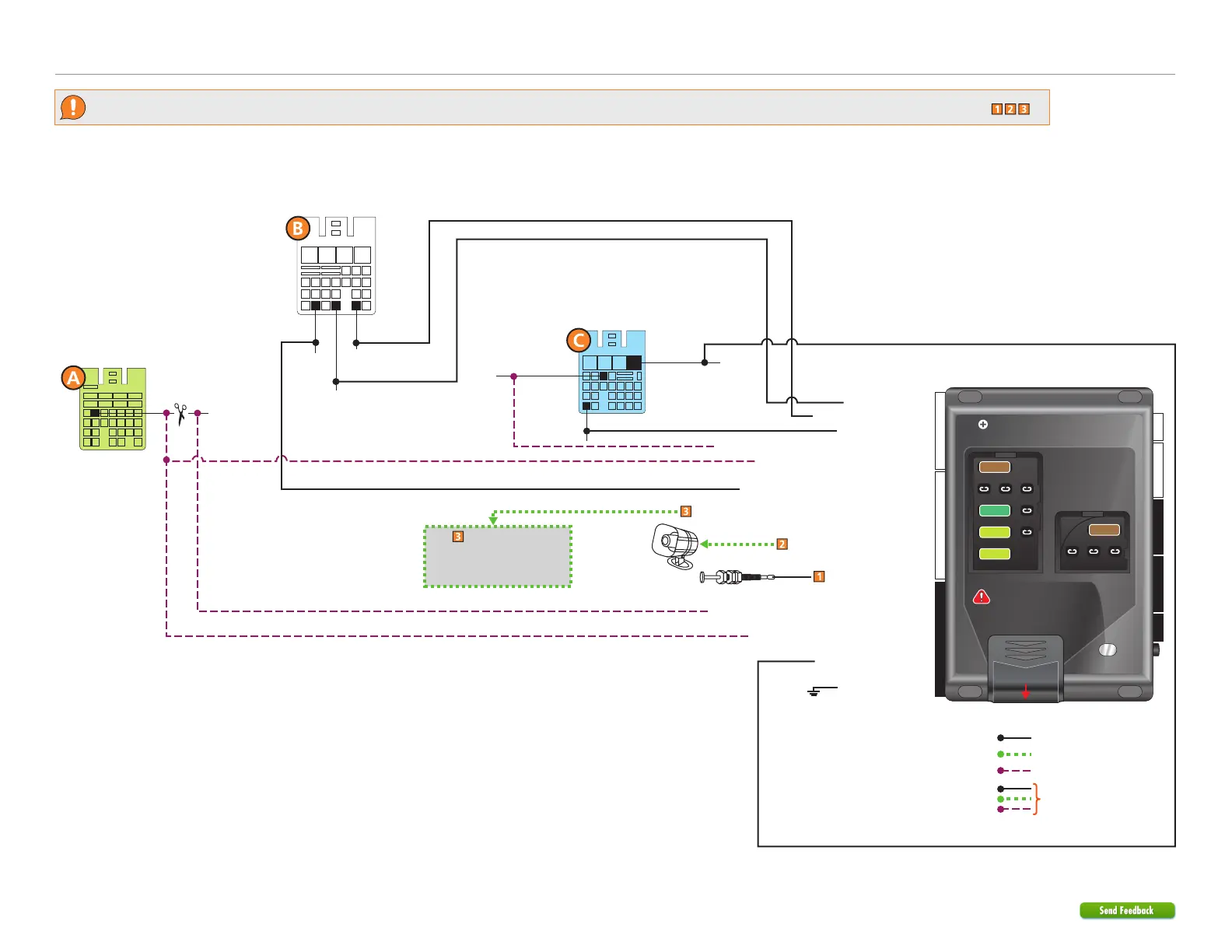

Wiring diagram
Immo. Data Interrupt (vehicle side.): Blue/White: 1
Immo. Data Interrupt (conn. side): Blue: 3
HS CAN Low: Tan: 1
(-) Parking Light Output: Lt. Green/Black: 1
HS CAN High: Tan/Black: 2
Immo.Data (conn.side): Yellow/Black: 8
(MUX) Brake Activation Output: Violet/Brown: 6
SW CAN: Lt. Green: 5
Siren
Hood Pin
(+) 12V Input: Red: 6 & 12
(-) Hood Input: Gray: 21
(+) Siren Output: Brown/Red: 11
Cut
1
8 9
10 11 12 131 4
17
23
15
21
16
22
18
24
1920
25
2 3 4 5 6 7
Immo. Data:
Green/Violet
or Lt. Blue, pin 2
242322
17
7
431
65
8
9 10 11 12 13 14 15
16
18 19 20 21
25 26 27
2
(+) 12V:
pin 4
Single Wire CAN: pin 22
(-) Ground When Armed (GWA) Output: Blue/White: 2
(MUX)
Brake: pin 7
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT(15A) (+)
5
5
30
20
20
Refer to the
Optional starter disable
connection section for relay
and connection details.
1 2 3 4
5
8 9
10 11 12 1314
15 17 19
23 25
16
22
18 20
24 26
6 7
21
HS CAN Low:
White, pin 24
HS CAN High:
Blue, pin 25
(-) Parking Lights:
pin 22
BCM
(green conn. front of
center console)
BCM
(white conn. front of
center console)
BCM
(blue conn. front of
center console)
(-) Ground: Black: 10
