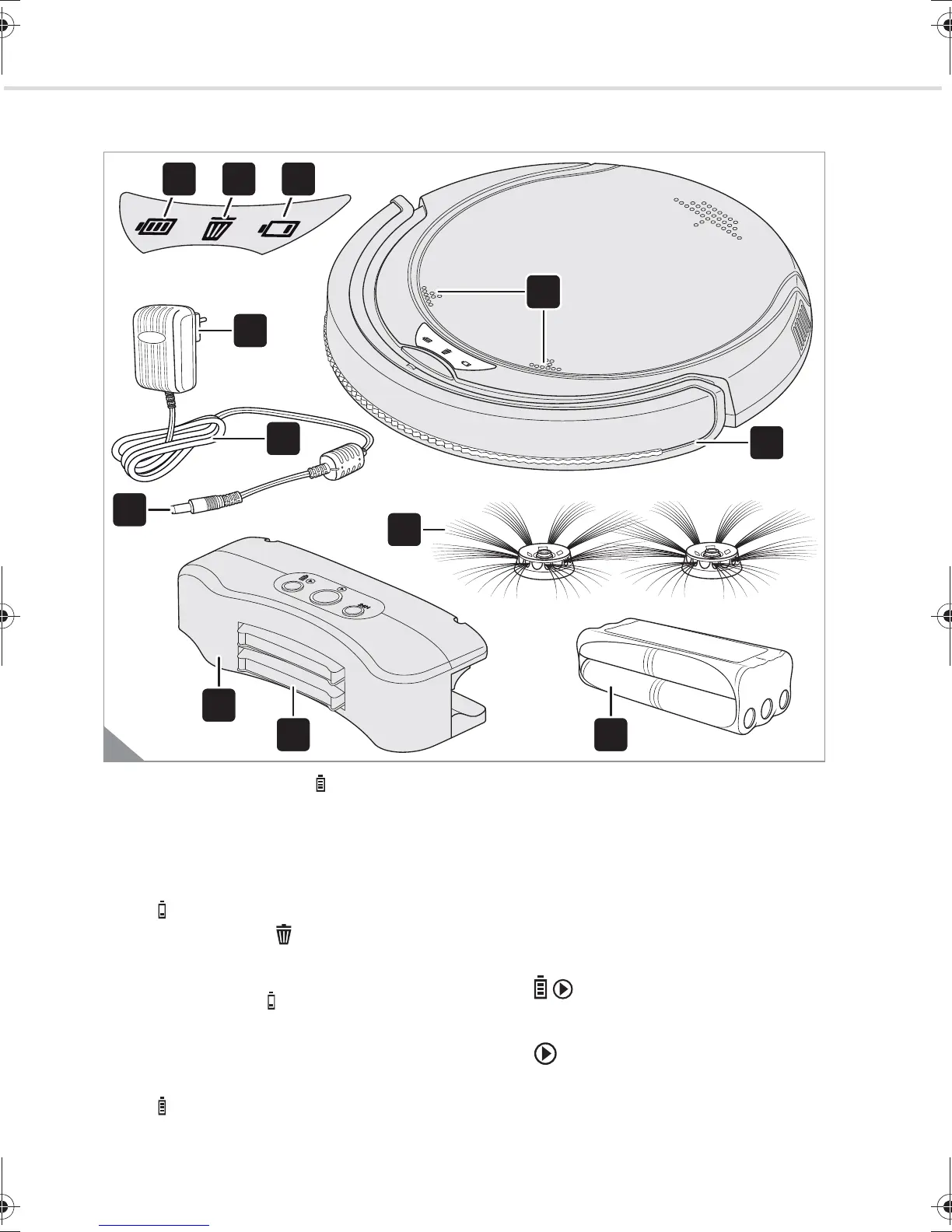

1 Overview
1Overview
1.1 Scope of delivery
1 Charging indicator light “ ”:
- Flashes green, when the battery pack is
charging
- Lights up with constant green light when
the battery pack is fully charged
- In operation flashes alternately with
""
2 Cleaning indicator “ ”:
- Is illuminated red when the dirt bin must
be emptied
3 Battery indicator " ":
- Is illuminated red, when the battery pack
must be charged or if the appliance has
no floor contact
- In operation flashes alternately with
""
4 Pressure points for releasing the housing
cover
5 Bumper
6 Round broom
7 AC adapter plug
8 AC adapter cord
9 AC adapter
10 Battery pack
11 Docking station contact points
12 Docking station
- -Button ("Full Go"): The appliance
sets off as soon as the rechargeable
battery is charged
- -Button ("Go"): The appliance sets
off immediately after pressing, regard-
less of charge status
-"24H" button: The appliance sets off 24
hours after this button has been pressed
2
7
8
10
9
5
4
3
1
6
11
12
