DISCOVER ELEMENT - Equipment Ground; Theory of Operation; Ingress Protection IP20

14

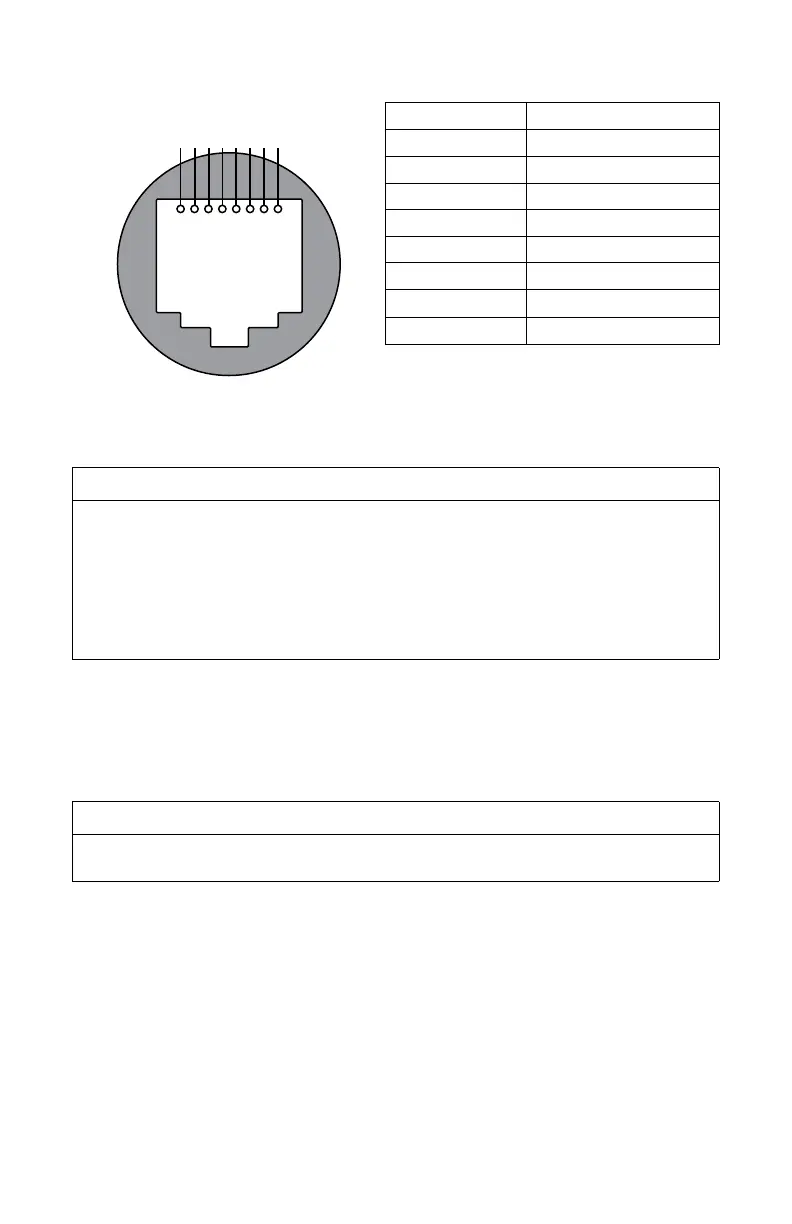

6.4.1 LYNK Port Communication RJ45 Pin Assignment
1 2 3 4 5 6 7 8
Figure 4. LYNK Port Communication
RJ45 pin assignment
Pin Number Function
1
(1)
Reserved. Do not use.
2
(1)
Reserved. Do not use.
3
(1)
Reserved. Do not use.
4 CAN Low
5 CAN High
6
(1)
Reserved. Do not use.
7 CAN Ground
8 CAN Ground
(1)
Do not populate. Do not terminate to power. Do not
terminate to ground. Do not terminate to CAN_L or
CAN_H.
NOTICE
• Use a straight-through cable. Do not use a cross-over cable.
• Isolate unused pins. Crossing PIN functions may cause system damage.
• Do not terminate unused wires to ground, power, or other functions.
• Mixing the LYNK Network with other networks may result in equipment malfunction
and damage.
6.5 Equipment Ground
Ground each module to the chassis ground using #6 gauge wire or a larger
diameter. Ground the entire chassis to the grounding #4 gauge wire or a larger
diameter.
NOTE
Refer to the applicable code and check with the authority having jurisdiction to confirm
local requirements.
7. THEORY OF OPERATION
7.1 Ingress Protection IP20
Ingress protection rates the degree of protection provided by mechanical casings
and electrical enclosures against intrusion, dust, accidental contact, and water under
specified conditions. The IP20 rating indicates that the product is touch-proof and
resistant to dust or objects larger than 12 mm. However, it has no protection against
liquids, so it is susceptible to damage if it comes into contact with water sprays.
IP codes guide suitability for use under different environmental conditions. IP
ratings do not indicate fitness for purpose or confer a performance guarantee.
