21
9.5 Terminal Connections and Hardware
Amphenol RadLok connectors with the following part numbers are used to mate
with the receiving pins on the battery module face plate.
Positive (+) Red - C10-730186-200
Negative (-) Black - C10-730186-100
1. Plug the Connector Into the Receiving Pin. Connect all power connectors
appropriately to the receiving pin.
2. Engage the Lock. Ensure the mating lock is engaged.
Lock

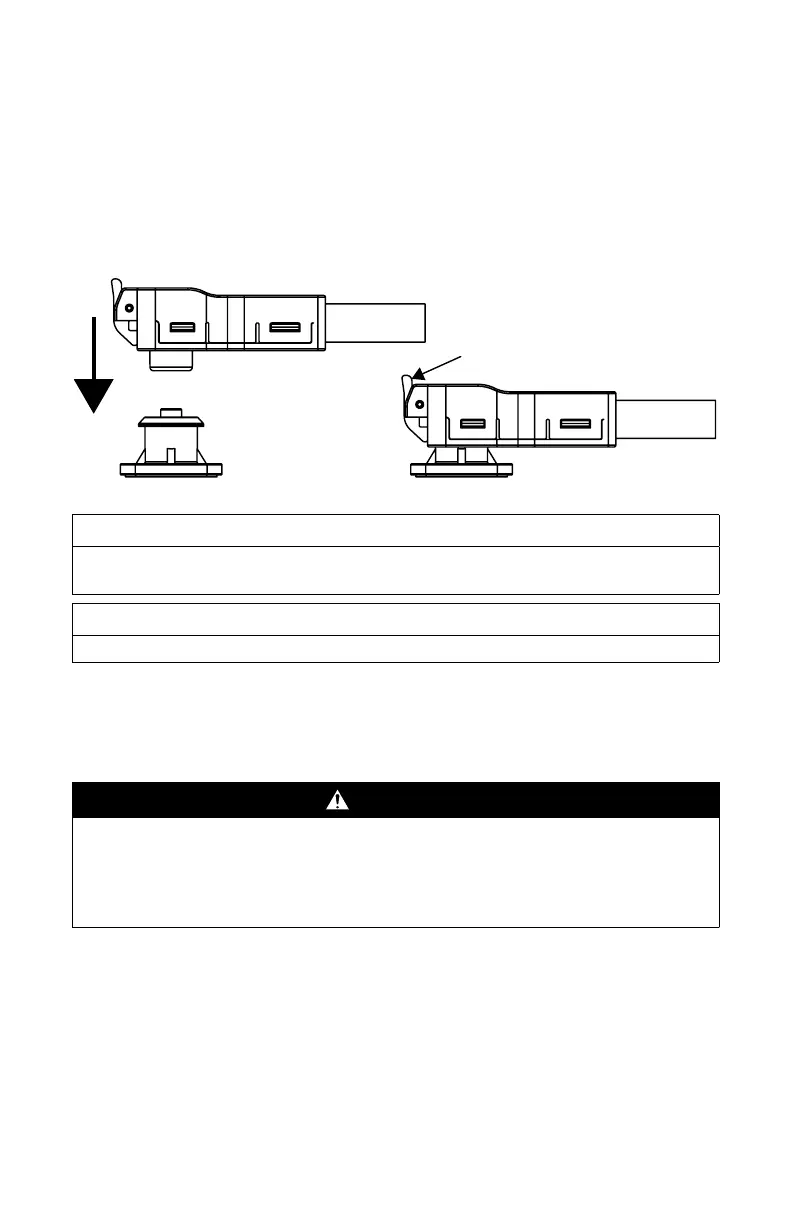

Figure 6. Battery Terminal connection
NOTICE
Failure to securely engage the mating lock on a terminal connection will increase
resistance and lower voltage, leading to burnout of the terminals.
NOTE
Without exception, a product experiencing terminal burnout will void the warranty.
9.6 Single Battery Module Installation Procedure
Install equipment following the standards set by the local authority having
jurisdiction.
CAUTION
FIRE HAZARD
Use cables that meet specifications. Undersized cables can become hot and potentially
catch fire.
Failure to follow these instructions can result in minor to moderate injury.
To optimize performance, battery cables (battery module to load and battery
module to charger) must meet the following requirements:
1. Minimum cable length. Select a location that minimizes the length of battery
cables to reduce the voltage drop.
2. Equal cable gauge. The battery cables should be the same gauge.
3. Equal cable length. The battery cables should be of equal length.
