DISCOVER ELEMENT - Mechanical Specifications

7
NOTE
Reduce the charge termination current to increase the time available for the internal
balancing function.
3.2 Mechanical Specifications
Table 3-2, ELEMENT ESS Mechanical Specifications
Mechanical Specifications 48-48-5120 / 48-48-5120-H
Chemistry LiFePO
4
Total Length 497.3 mm (19.6 in)
Body Width 439.2 mm (17.3 in) (19U)
Front Face Width 482.6 mm (19 in)
Height 133.5 mm (5.3 in) (3U)
Terminal
Amphenol RadLok
Positive (+) Red - C10-730186-200
Negative (-) Black - C10-730186-100
Weight 44.0 kg (97.0 lb)
IP Rating IP20
Case Material Galvanized Steel Sheet
133.5 mm (5.26 in)
38.00 mm
(1.50 in)
465.90 mm (18.34 in)
497.30 mm (19.58 in)
459.30 mm (18.08 in)
FRONT SIDE
TOP
90 mm (3.54 in)
440 mm (17.32 in)
482.60 mm (19.00 in)
21.7 mm
(0.85 in)
21.7 mm (0.85 in)

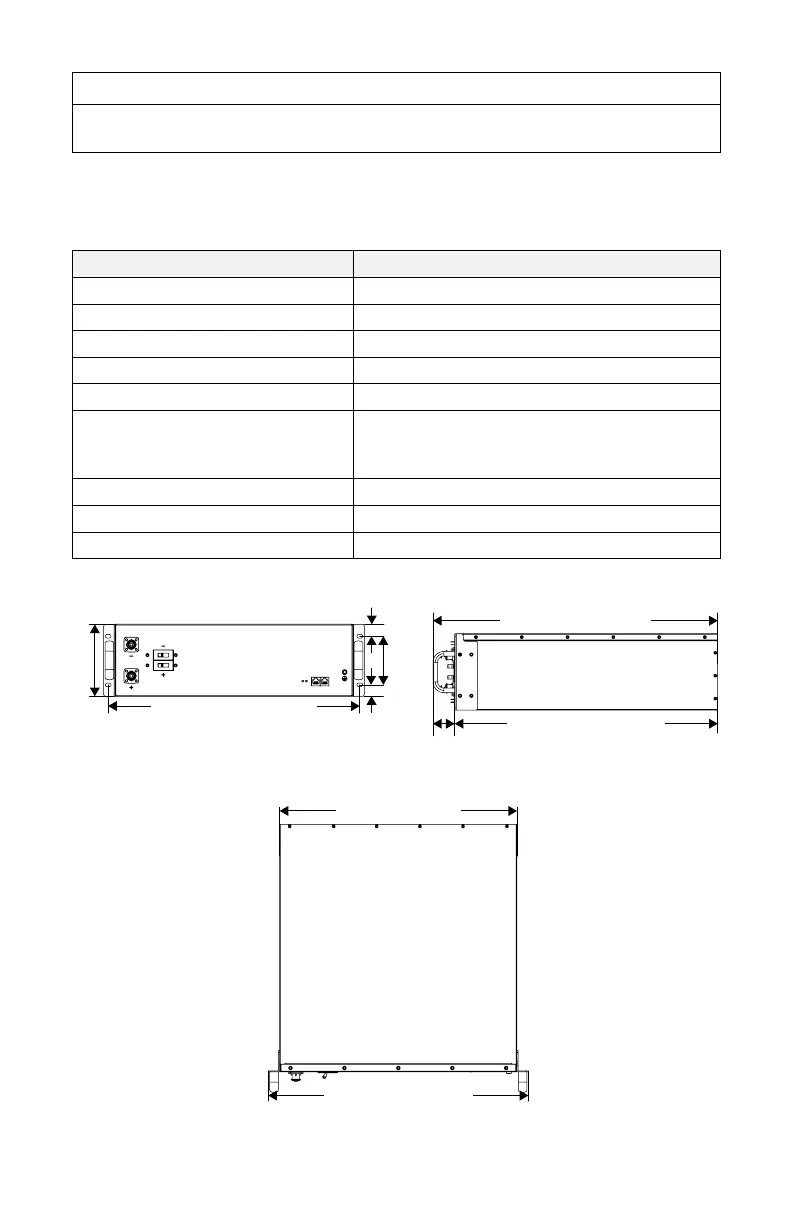

Figure 1. ELEMENT ESS Battery Module Dimensions
