9.2 Location
44.45 mm
(1.75 in) (1U)
44.45 mm
(1.75 in) (1U)

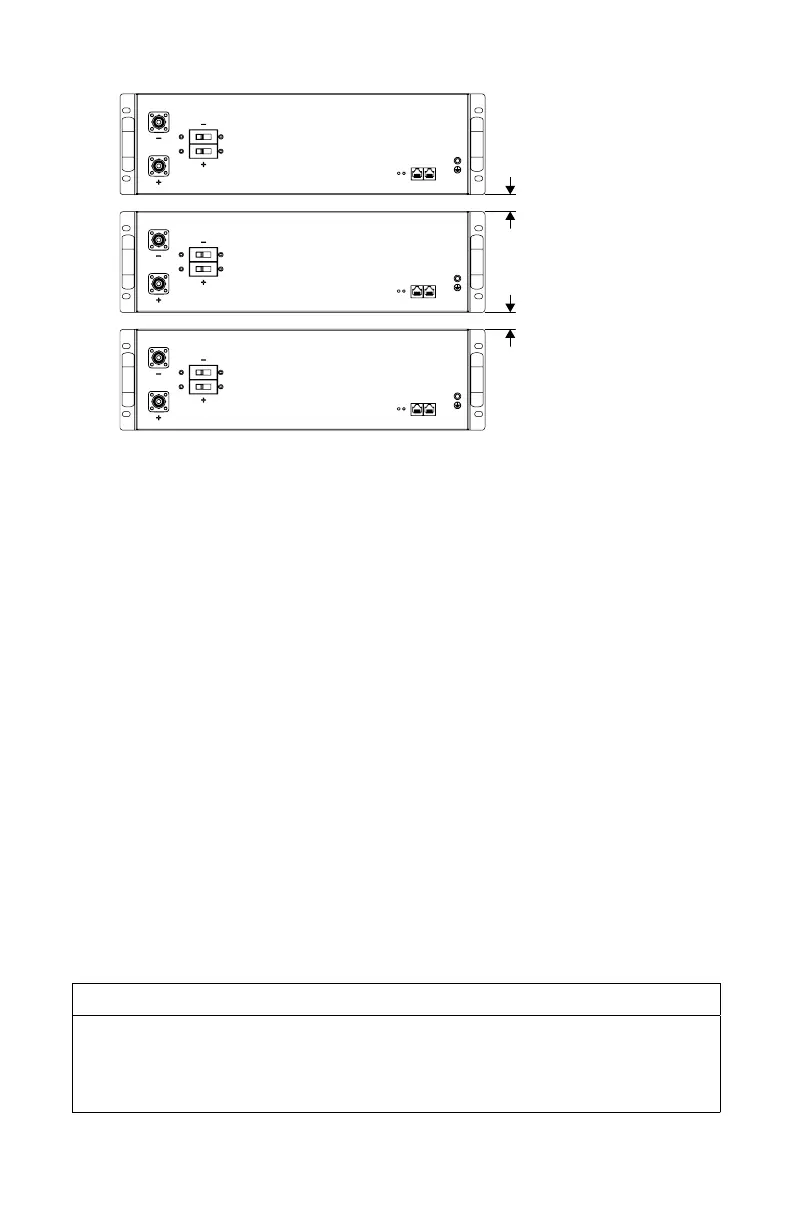

Figure 5. Battery spacing
Install the battery module in locations that meet the following requirements:
1. Do not install in direct sunlight. Avoid installing the battery module in an area
with high ambient temperature.
2. Moderate temperature. The ambient temperature should be between 0°C and
40°C (32°F and 104°F). Ambient temperatures of 15°C to 20°C (59°F to 68°F) are
ideal for extending LiFePO
4
battery life.
3. Ventilation. Do not install in zero-clearance compartments.
Allow spacing of at least 44.45 mm (1.75 in) (1U) above the top cover, between
battery modules, and to the sides for airflow.
4. Away from water. Do not install in locations that are susceptible to flood or water
leakage.
5. Orientation. Install the battery module in any direction other than face down. Do
not install face-down.
Additional requirements for mobile or in-vehicle installations:
1. Do not install in an engine compartment. Do not install the battery module in an
area where gasoline fuel is present. Avoid installing the battery module in an area
with high ambient temperature.
2. Secure the battery. Locate the battery module in a battery compartment. Secure
the battery module with strapping or a bracket to prevent movement and strain
on the battery module and cables.
NOTE
• Do not attach the battery module to a frame or mounting location with
excessive vibrations.
• Using this product in a location that does not meet requirements will void the
warranty
