Dish Network 311 - Chapter 2 Parts of the System; Front Panel; Back Panel

Page 5
Chapter 2
Parts of the System

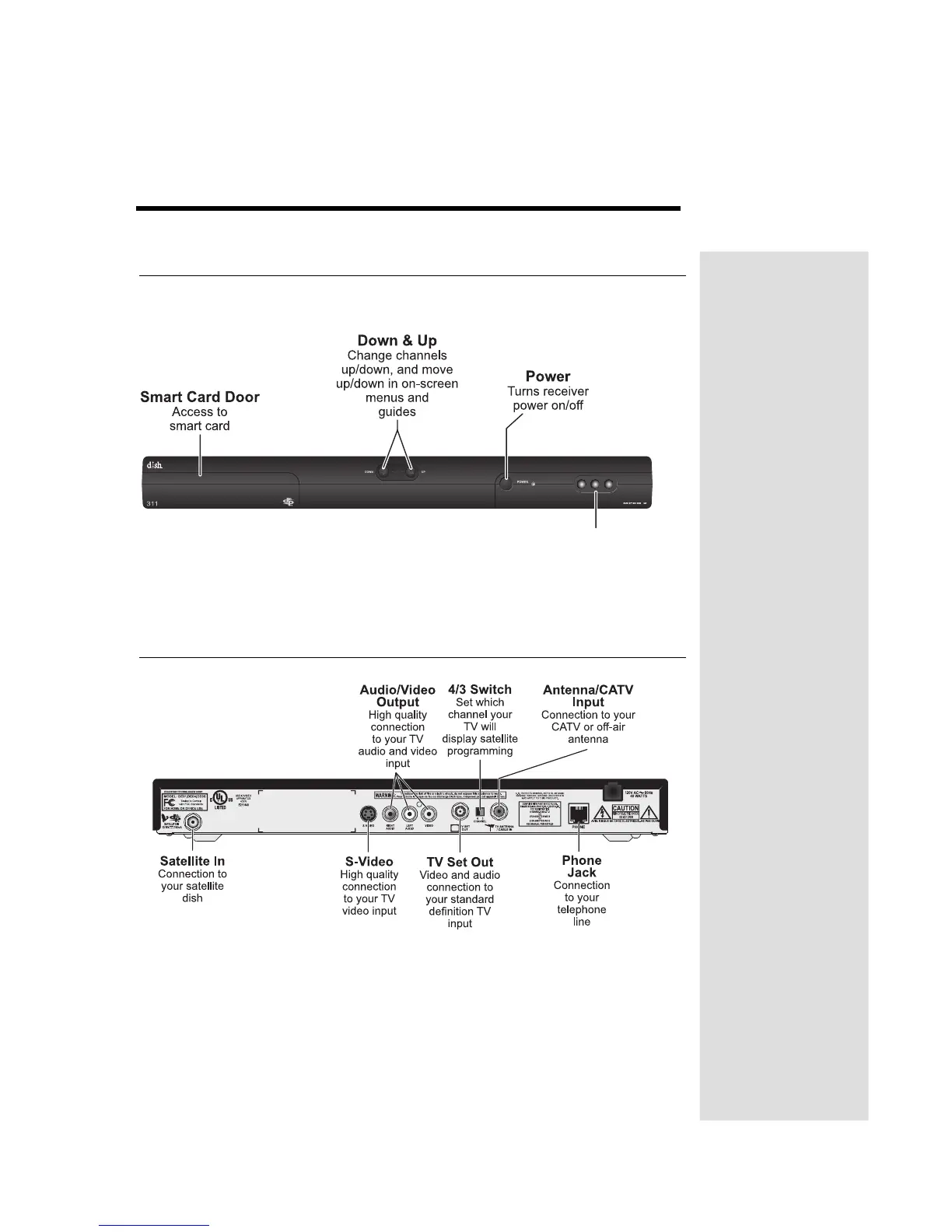

FRONT PANEL
BACK PANEL
Infrared Sensor/Blaster
Receives IR signals from
the remote control and
sends IR signals to DVD/VCR
(if programmed)
Tip: Tighten the
coaxial cable
connections only
by hand.
Tip: Using cable
labels makes it
easy to tell which
cables connect to
the right receiver
ports. The labels
are inside the front
cover of this
guide.
