Distech Controls ECLYPSE Installation Guide

4 / 22
0.06" 1.44
103.654.08"
5.24 133.03
4.74" 120.31
0.44" 11.13
3.83" 97.33
Front
0.01" 0.40
Inter-Connection Gap:
3.18" 80.82
18.390.72
21.130.83
Back
Inches Millimeters
2.31" 58.56

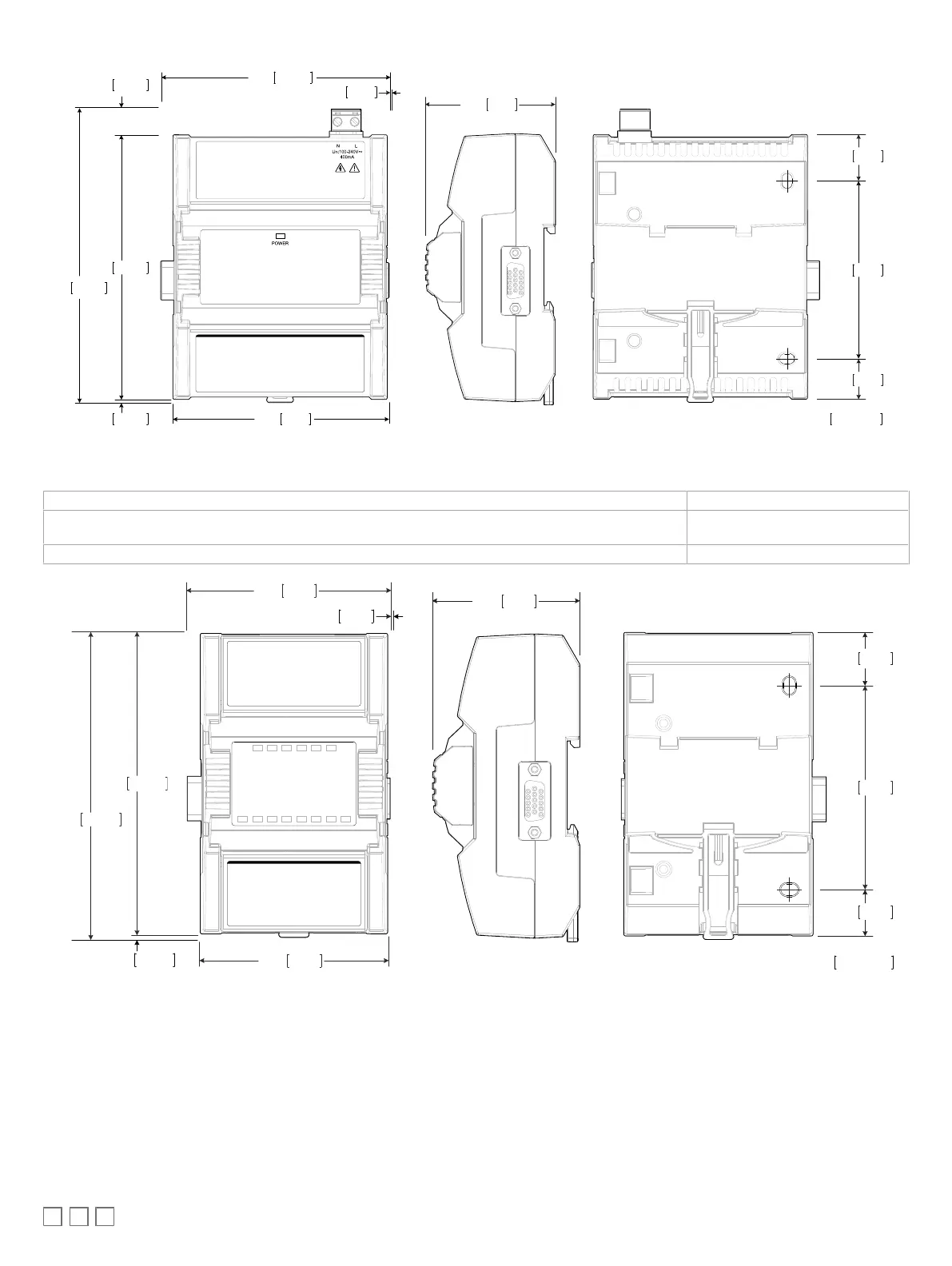

Figure5: 100 to 240 VAC Power Supply
IO Modules come in the following widths.
Models Width
Narrow models: ECY-8UI, ECY-16DI, ECY-6UO, ECY-6UO-HOA, ECY-4UI4UO, ECY-4UI4UO-HOA,
ECY-8UI6UO, ECY-8UI6UO-HOA, ECY-8UI6DOT, and ECY-8UI6DOT-HOA
3.20 inches (81.17mm)
Wide models: ECY‑8DOR and ECY‑8DOR‑HOA. 5.15 inches (130.07mm)
2.95" 74.99
4.74" 120.31
3.20" 81.17
Inter-Connection Gap: 0.01" 0.40
Front
4.80" 121.75
0.06" 1.44
2.31" 58.56
3.18" 80.82
18.540.73
21.080.83
Inches Millimeters
Back
Figure6: IO Module: Narrow Width
