Distech Controls ECLYPSE Installation Guide

5 / 22
4.74" 120.31
Front
O6O3O1 O4 O7 O8O5O2
MAN
AUTO
OFF
Inter-Connection Gap: 0.01" 0.40
5.15" 130.07
4.94" 125.32
0.06" 1.44
4.80" 121.75
Back
3.18" 80.82
18.540.73
21.080.83
Inches Millimeters
2.31" 58.56

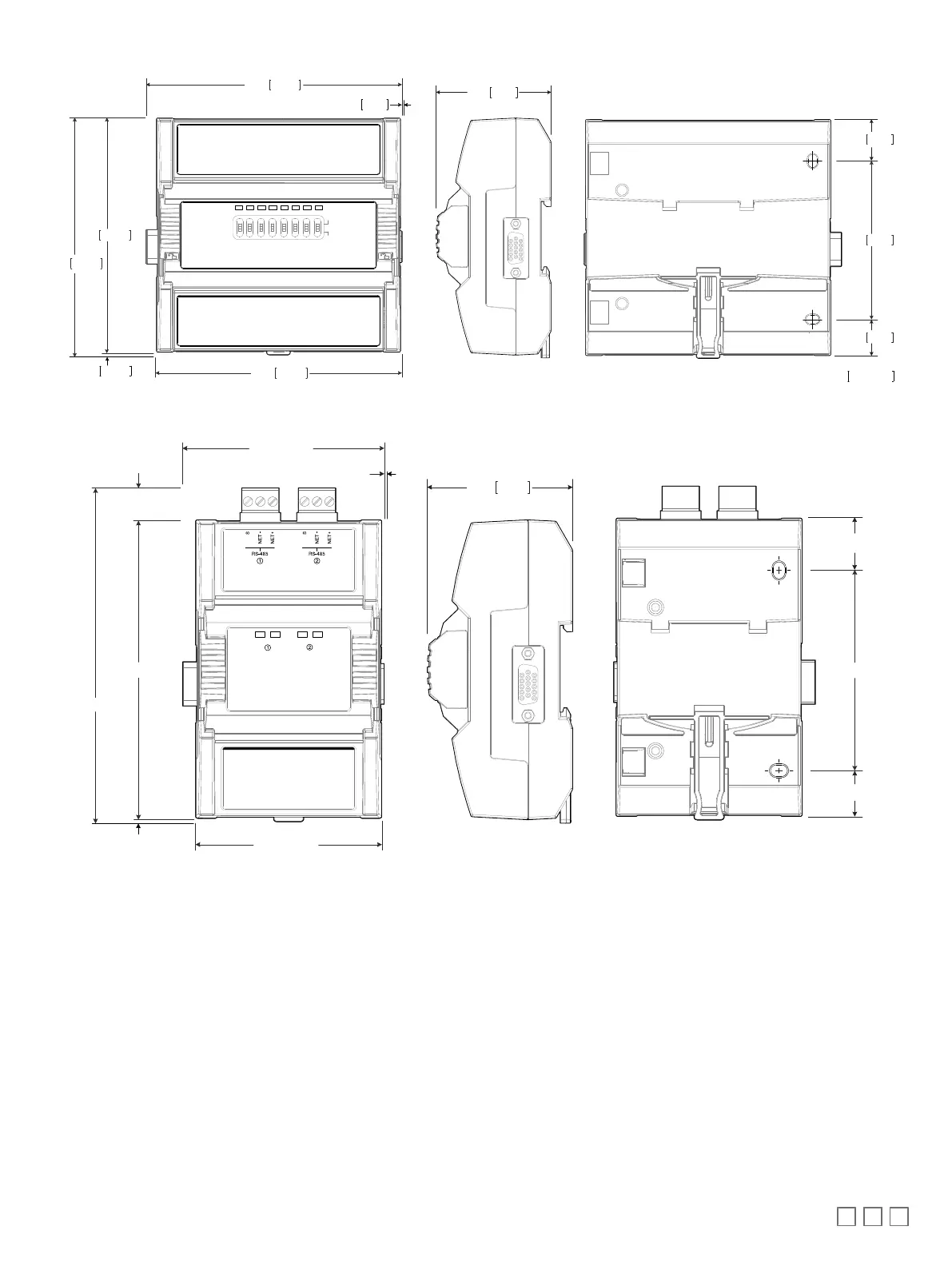

Figure7: IO Module: Wide Width
3.18 [80.82]
0.73 [18.54]
0.83 [21.08]
Back
Inches [Millimeters]
2.95 [74.99]
4.74 [120.31]
3.20 [81.17]
Inter-Connection Gap: 0.01 [0.40]
Front
0.06 [1.44]
5.30 [134.65]
0.51 [12.90]
RX2 TX2RX1 TX1
2.31" 58.56
Figure8: RS-485 Communication Module

Distech Controls ECLYPSE Specifications

General

Brand	Distech Controls
Model	ECLYPSE
Category	Controller
Language	English
