Ditch Witch Cx Series User Manual

Specifications - 116 Cx Series Operator’s Manual
C30x
C30x

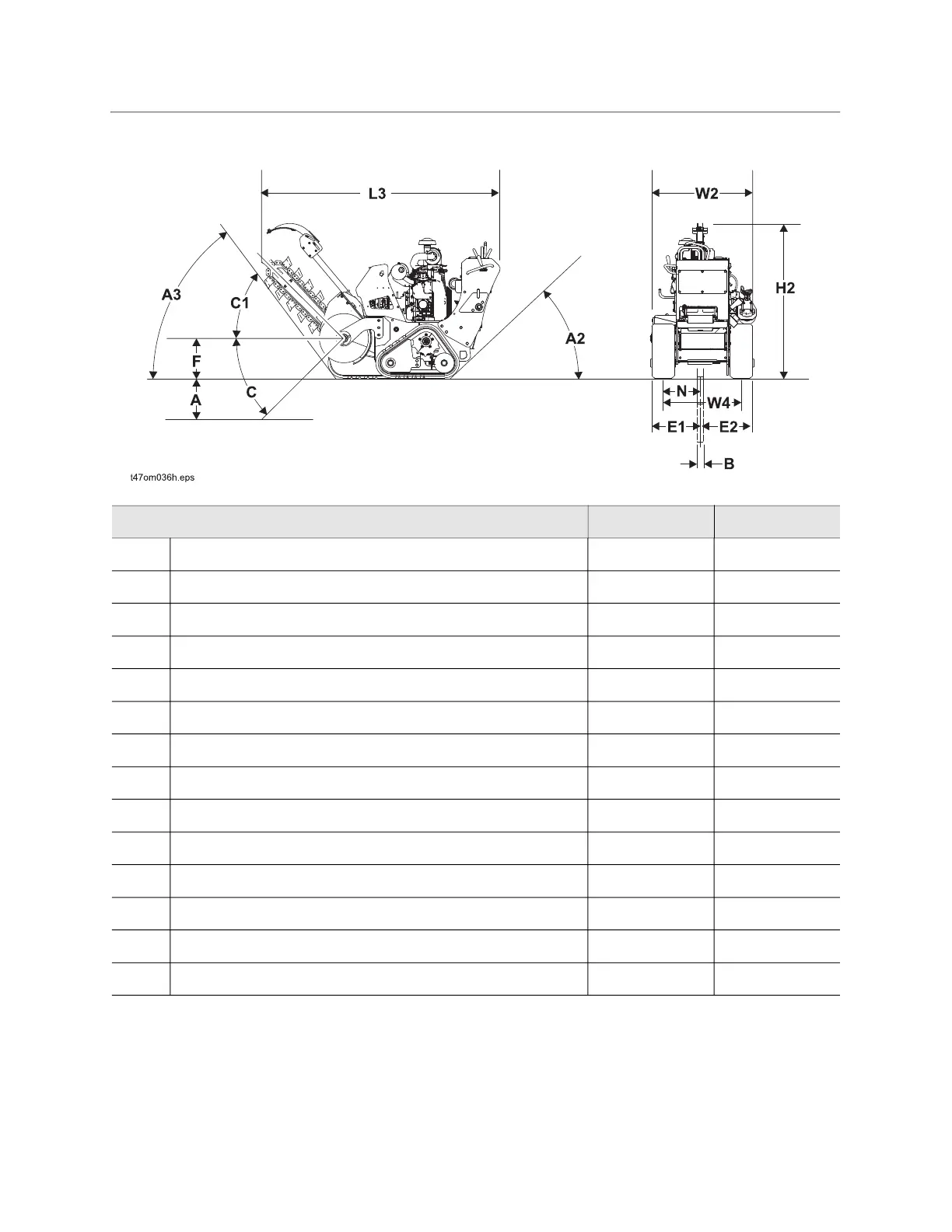

Unless otherwise noted, dimensions are based on 48” (1220mm) boom in transport position.
Dimensions US Metric
A Trench depth, max 48” 1.2m
A2 Angle of departure 45° 45°
A3 Angle of approach 51° 51°
B Trench width 4.3-6” 110-150mm
C Boom travel down 63° 63°
C1 Boom travel up 60° 60°
E1 Centerline trench to outside edge of machine, left 17.2” 437mm
E2 Centerline trench to outside edge of machine, right 18.6” 472mm
F Headshaft height, digging chain 13.7” 348mm
H2 Height 66” 1680mm
L3 Length, max 101” 2570mm
N Spoil discharge reach 14.1” 358mm
W2 Width 35.8” 909mm
W4 Tread 27” 686mm
