Counterweights
Counterweights

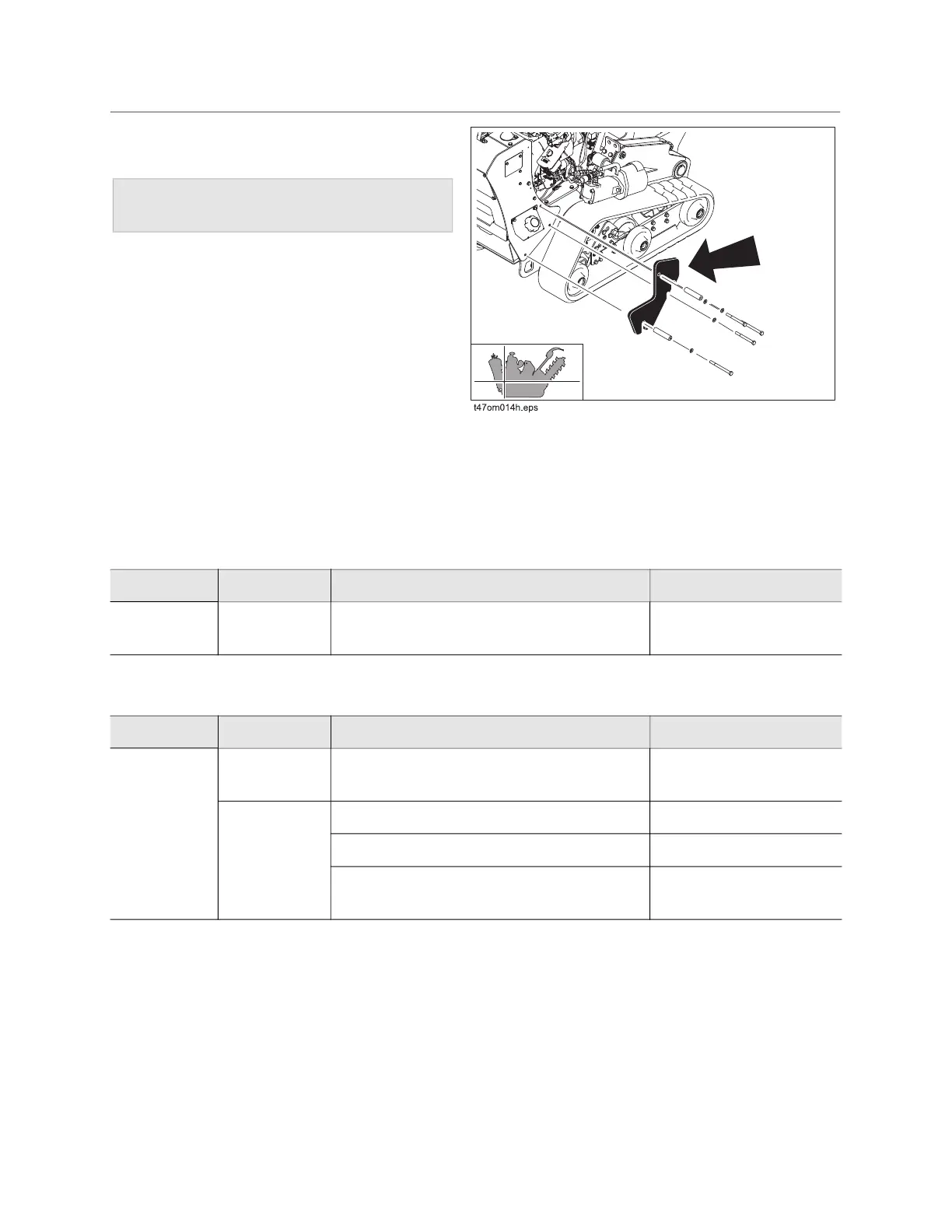

Use counterweight charts to determine the
correct number of counterweights. Install
appropriate counterweight configuration on
console as shown.
C12x
No counterweighting is required.
C16x and C24x
C30x
IMPORTANT: Configurations not listed require
no counterweighting.
Chain Type Boom Length Tooth Type Counterweight Required
35K 36” (915mm) Shark® Chain II, 4” (102mm) and 6”
(152mm) widths
8 (4 left, 4 right)
Chain Type Boom Length Tooth Type Counterweight Required
35K 36” (915mm) Shark Chain II, 4” (102mm) and 6” (152mm)
widths
8 (4 left, 4 right)
48” (1.2m) Duratooth Cup 9 (4 left, 5 right)
Duratooth Combos (Shark/Alligator) 9 (4 left, 5 right)
Shark Chain II, 4” (102mm) and 6” (152mm)
widths
12 (6 left, 6 right)
