Backfill Blade
Backfill Blade
The optional backfill blade can be used to return spoils to the trench.

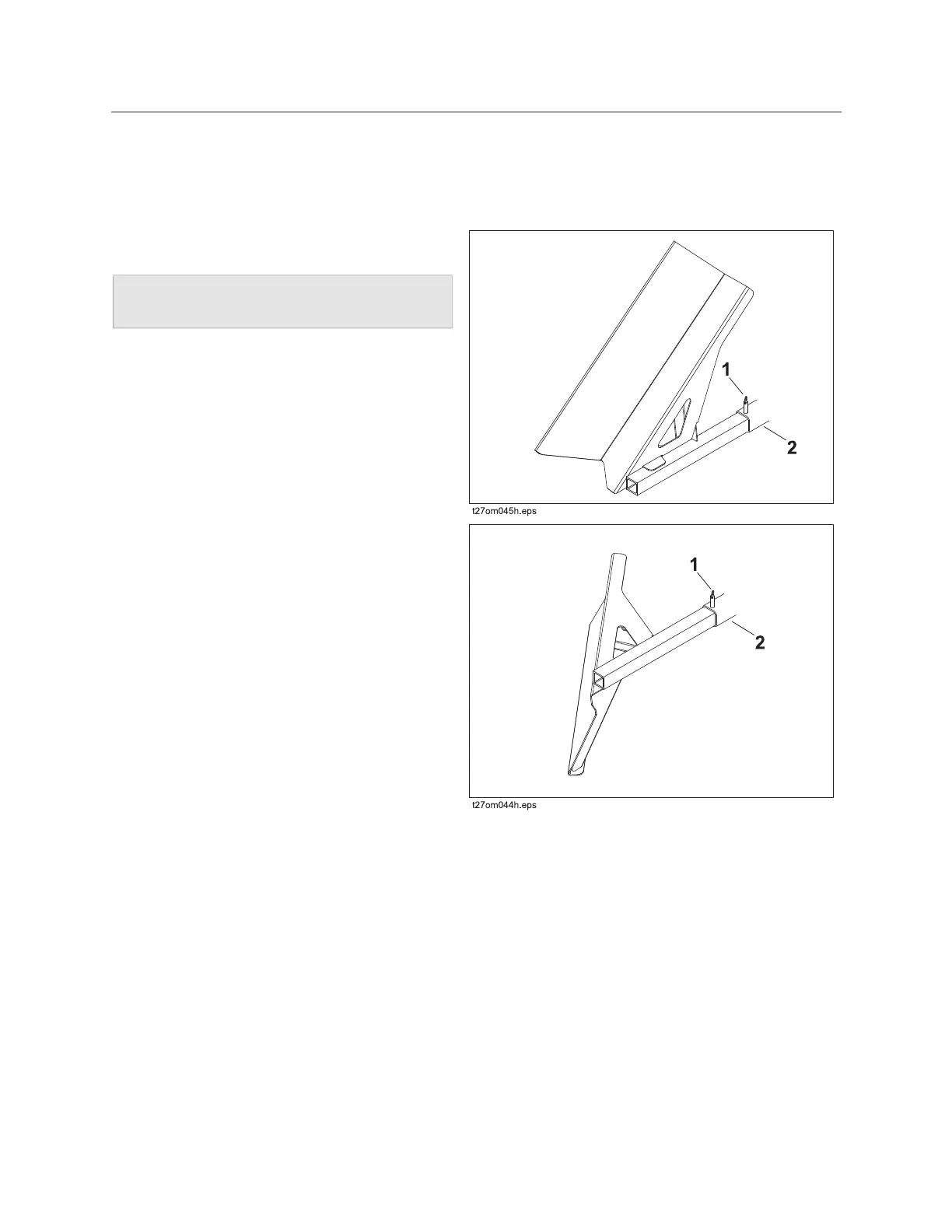

Stowed Position
Install backfill blade in stowed position for
transport and drilling.
1. Shut off machine.
2. Insert backfill blade in upright position onto
mounting stub (2).
3. Secure with pin (1).
Work Position
Install backfill blade in work position only for
backfilling.
1. Shut off machine.
2. Insert backfill blade in work position on
mounting stub (2).
3. Secure with pin (1).
IMPORTANT: Completely remove backfill
blade for trenching.
