Cx Series Operator’s Manual Drill - 59
Set Up

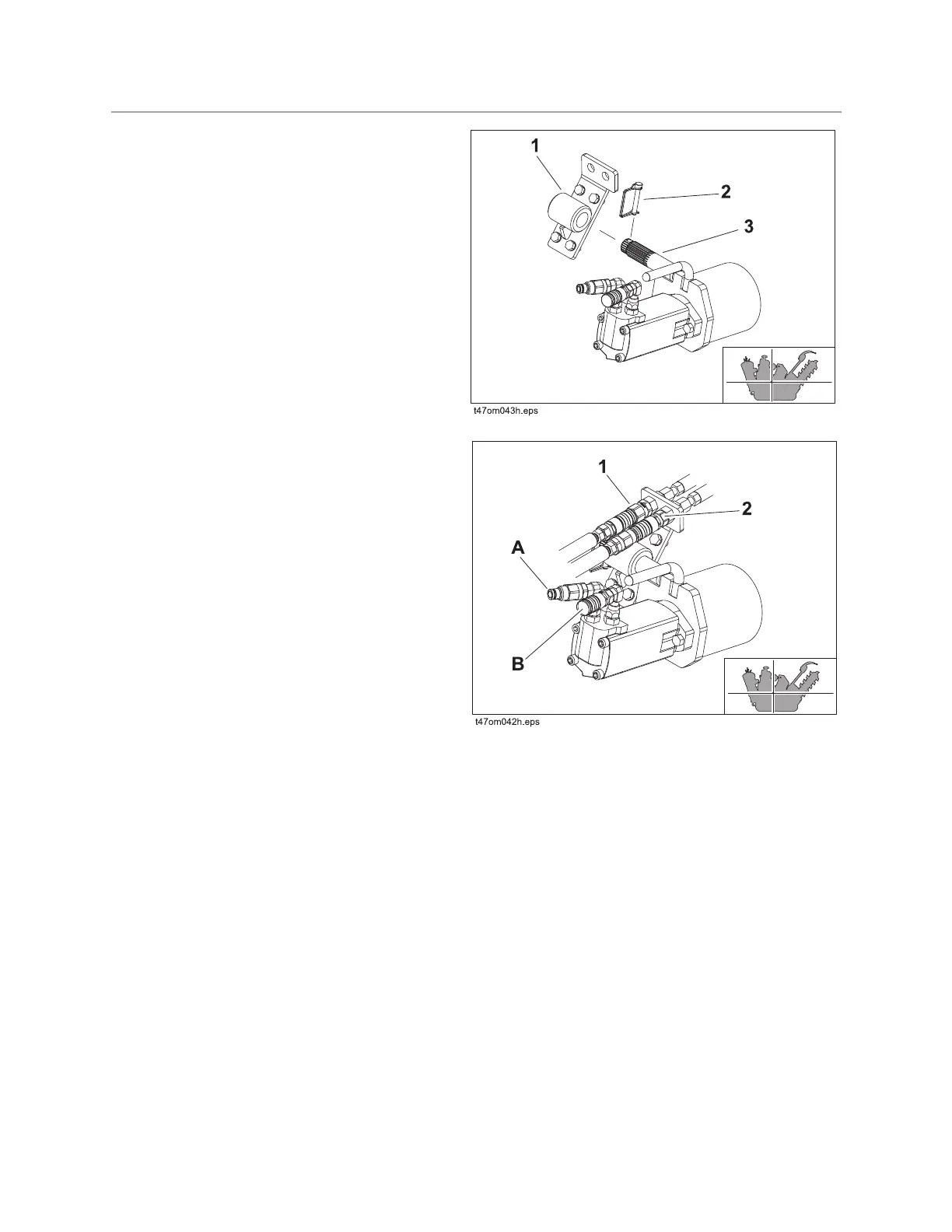

Install Drilling Attachment
The operating position of the drilling attachment
is on the right side of the machine.
1. Shut off machine.
2. Remove attachment from storage position.
See “Remove Drilling Attachment” on
page 68.
3. Fully insert mount pin (3) in cylinder of
attachment plate (1), aligning drilling
attachment with drill string.
4. Secure assembly with pin (2).
Connect Hydraulic Lines
1. Remove dust covers from connectors (A, B).
2. Disconnect hydraulic connector (1) and
connect with connector (A).
3. Disconnect hydraulic connector (2) and
connect with connector (B).
