Drill - 58 Cx Series Operator’s Manual
Set Up
Set Up

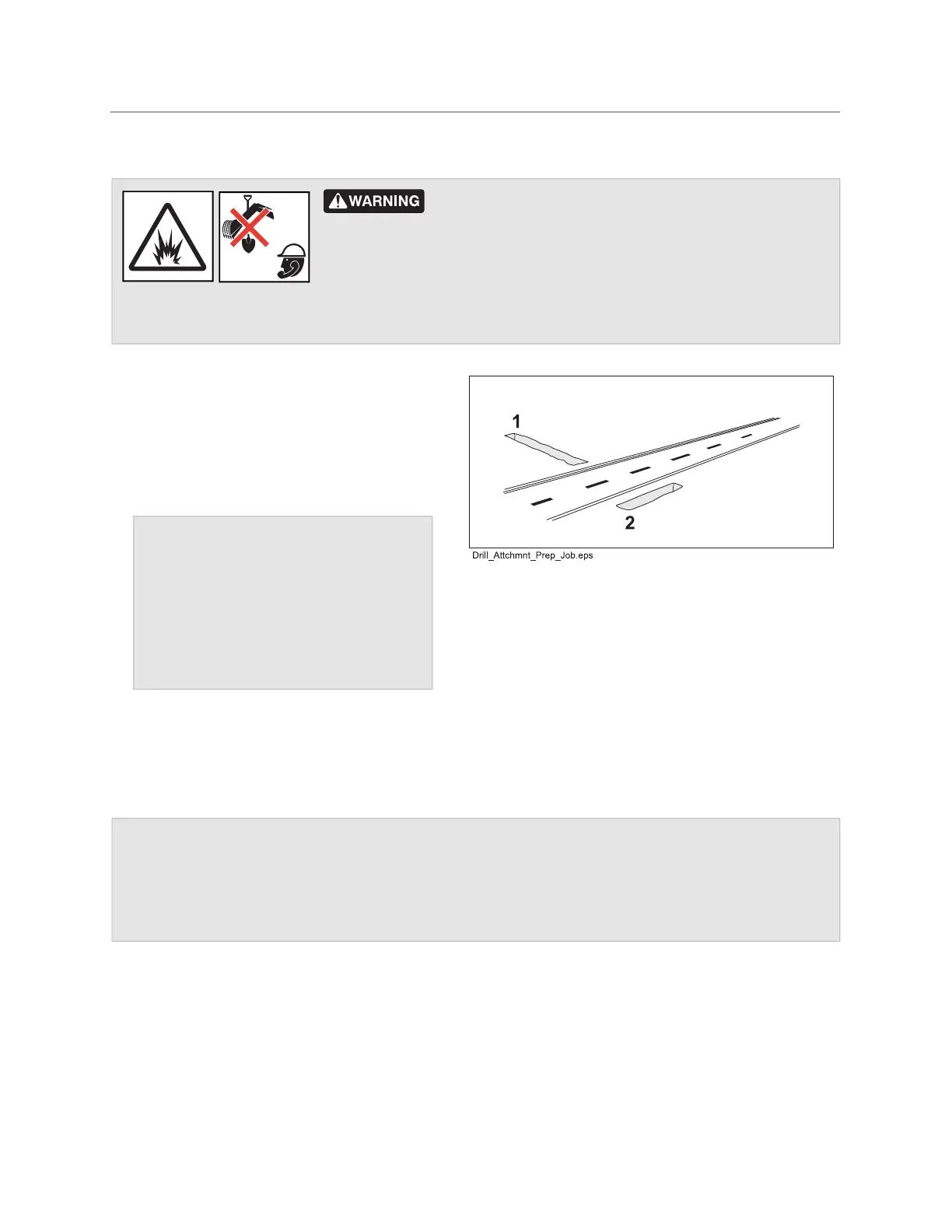

Dig Approach Trench
1. Mark planned bore path and all located
utility lines with flags or paint.
2. Dig approach trench (1) along intended bore
path.
Dig Target Trench
1. Select completion point for the bore.
2. Dig target trench (2) across intended completion point.
Underground utilities. Contact can cause death or serious
injury. Locate and verify underground utilities before digging or drilling.
To help avoid injury: Only operate drilling attachment if bore path is more than 10’ (3m) from any
underground hazard.
IMPORTANT: Ensure approach trench is:
• deep enough for pipe to lay flat and
to enter soil at correct angle,
• at least half the total length of drill
string, and
• at least 4” (10cm) wide.
IMPORTANT: Ensure that trench is:
• deep enough for drill bit to enter slightly above the trench floor, and
• long enough to allow for drift of unguided drill string. Accuracy of bore decreases with length and
varies with soil conditions.
To Next Page
