JT520 Operator’s Manual Specifications - 141
CMW
Specifications

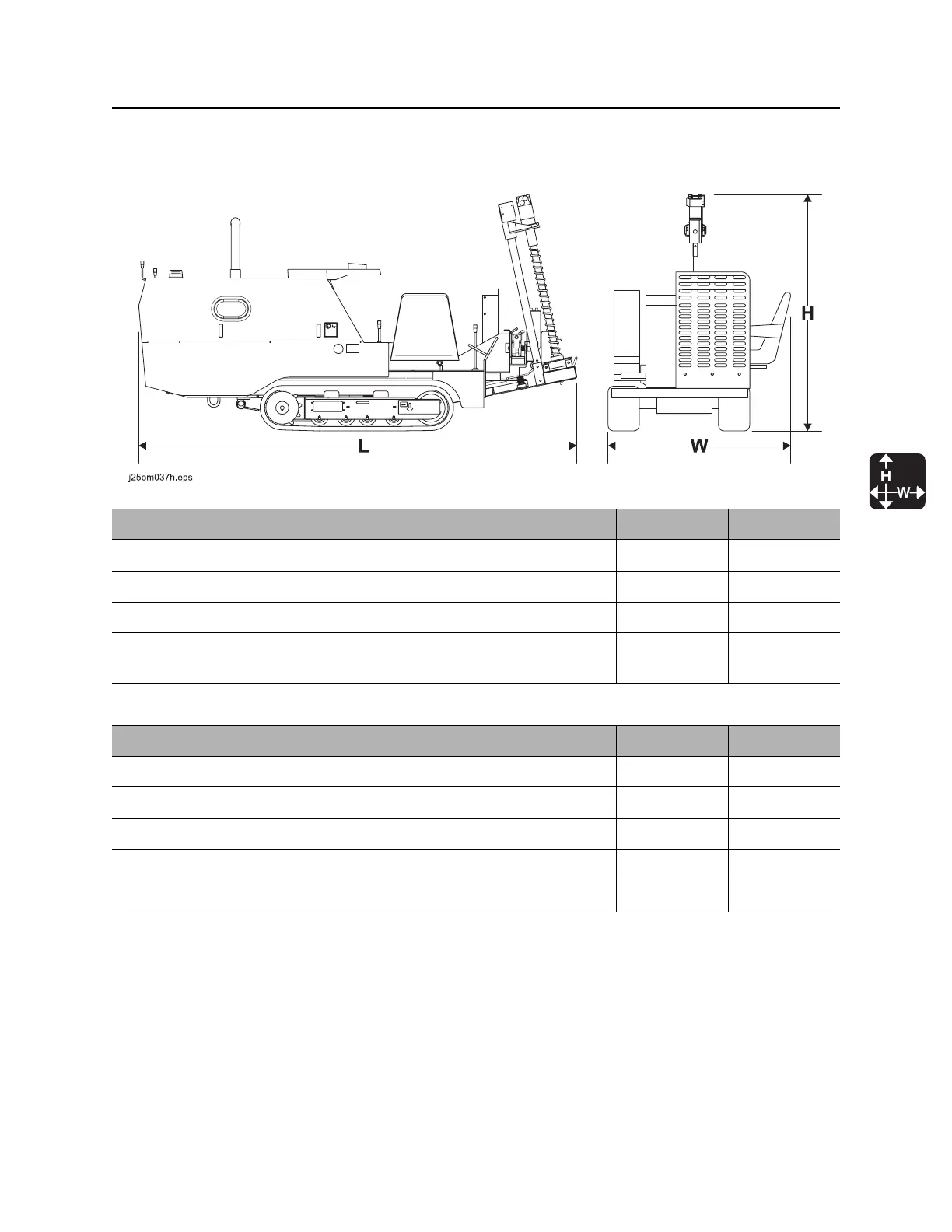

Dimensions U.S. Metric
L, overall machine length 117 in 3 m
W, overall machine width 35.5 in 900 mm
H, overall machine height 66.5 in 1.7 m
Operating weight w/150’/45.7 m of drill pipe, anchoring system and
anchor
2980 lb 1352 kg
UFE Pipe U.S. Metric
Length 59.1 in 1.5 m
Joint diameter 1.75 in 44.5 mm
Tubing diameter 1.1 in 28 mm
Minimum bend radius 70 ft 21.3 m
Weight 16 lb 7.3 kg
