JT520 Operator’s Manual Systems and Equipment - 87
Anchor System
CMW
Anchor System

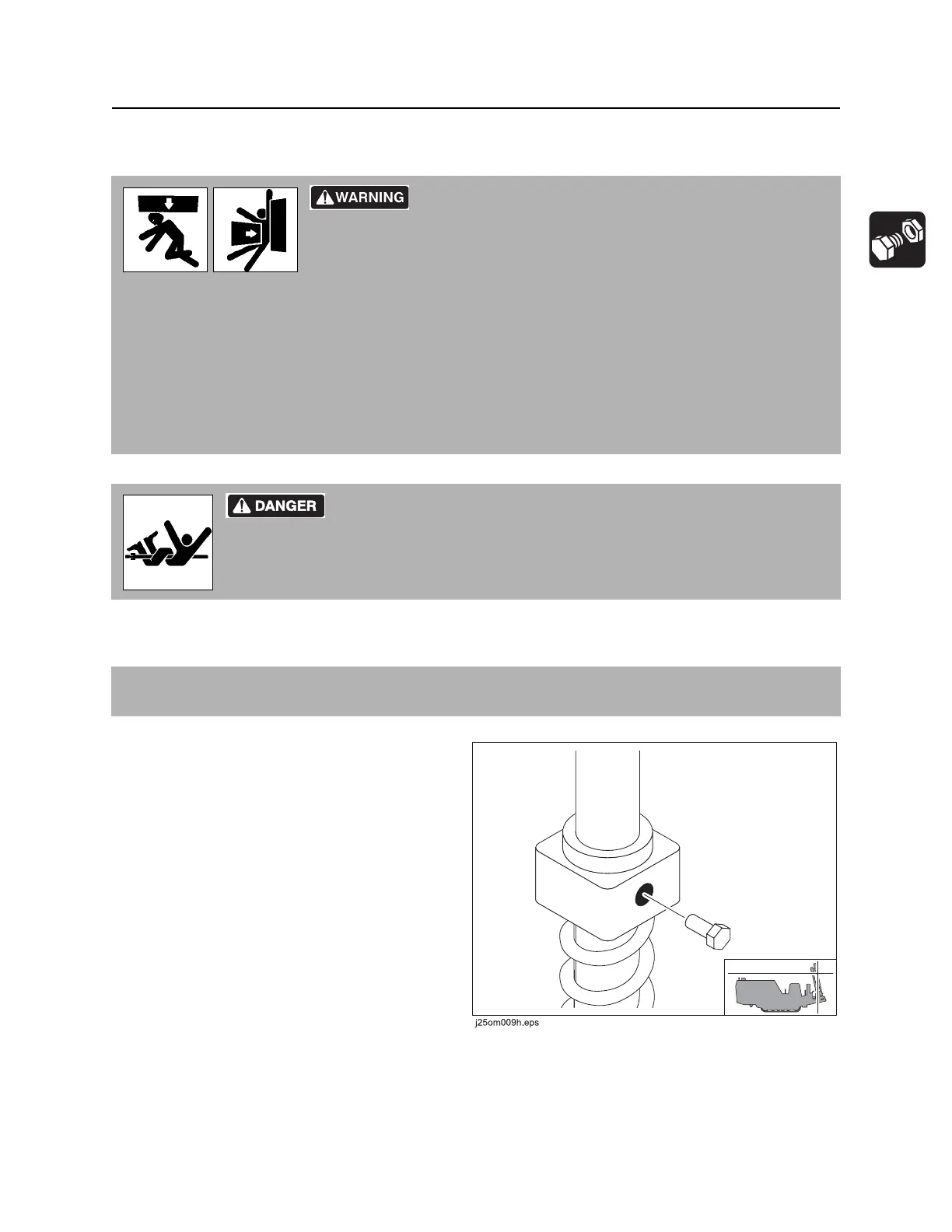

Drive Anchor
1. Use anchor control to drive anchor into
ground.
2. Anchor is set when cap (1) rests firmly on
centering tube (2).
Remove Anchor
Use anchor control to slowly remove anchor
shaft from ground.
Crushing weight. If load falls or moves, it could kill or crush
you. Use proper procedures and equipment or stay away.
NOTICE:
• Drive anchor properly before drilling.
• Wear high-top protective boots with legs of pants completely tucked inside.
• Wear protective gloves.
• If you are not driving anchor to full depth, drive optional ground rod into soil away from drilling unit
and connect ground rod to drilling unit.
Turning shaft can kill you or crush arm or leg. Stay away.
NOTICE: Do not replace anchor collar bolt with one longer than original. Clothing could
catch on turning shaft.
IMPORTANT: Carefully time anchor rotation with anchor movement. Properly driven anchor should not
auger up soil.
