Controls - 22 JT520 Operator’s Manual
Operator’s Station
CMW
Operator’s Station

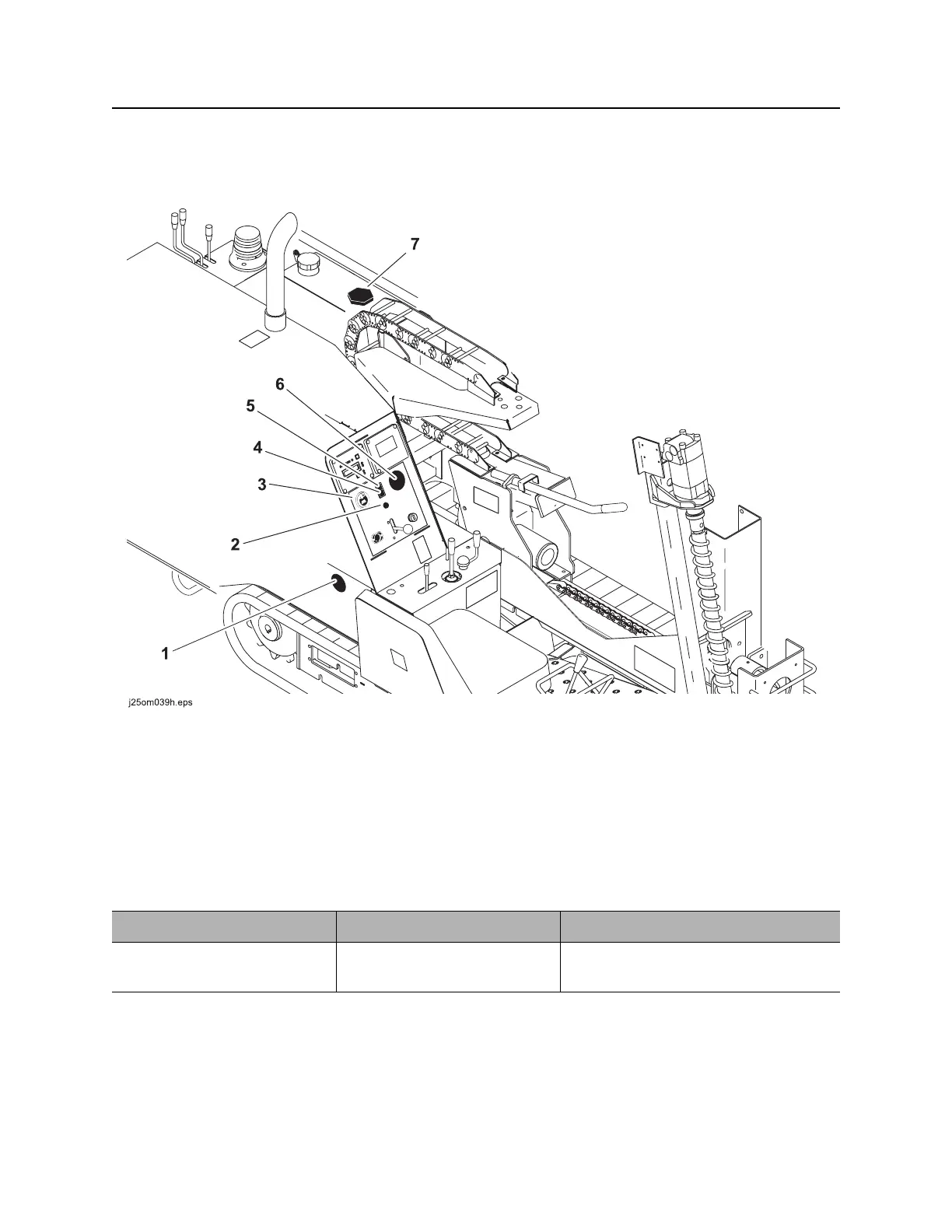

Gauges and Indicators
1. Hydraulic fluid sight glass
2. Glow plug indicator
3. Hourmeter
4. Engine oil pressure indicator
5. Engine temperature indicator
6. Drilling fluid pressure gauge
7. Fuel gauge
Item Description Notes
1. Hydraulic fluid sight
glass
Displays level of hydraulic
fluid.
Maintain level in center of glass.
