JT520 Operator’s Manual Controls - 25

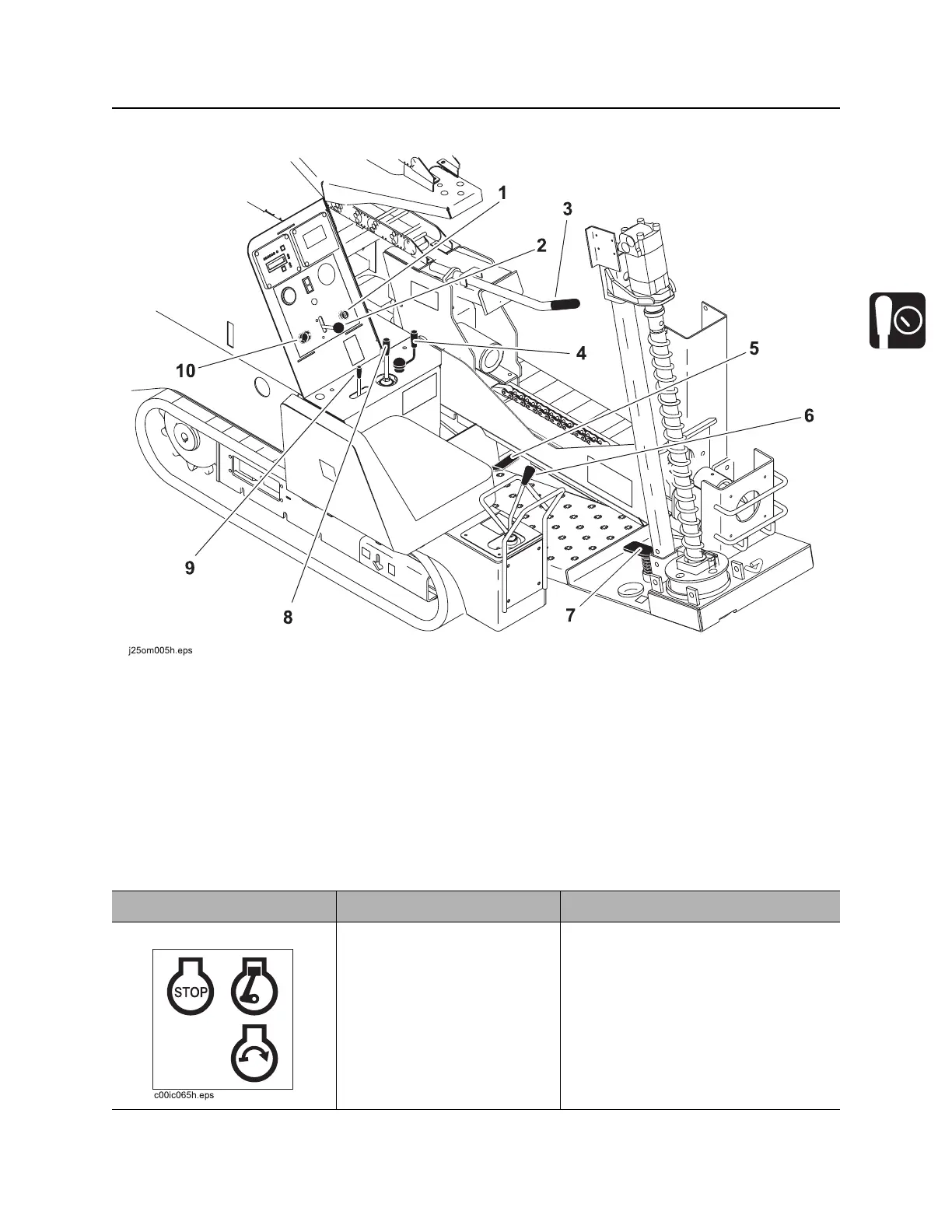

Operator’s Station
CMW
Controls
1. Ignition switch
2. Engine throttle control
3. Auxiliary wrench handle
4. Fluid flow control
5. Pipe lubricator control
6. Carriage control
7. Anchor collar rotation lock control
8. Wrench control
9. Anchor control
10. Auxiliary outlet
Item Description Notes
1. Ignition switch To start engine, insert key and
turn clockwise.
To stop engine, turn key
counterclockwise.
