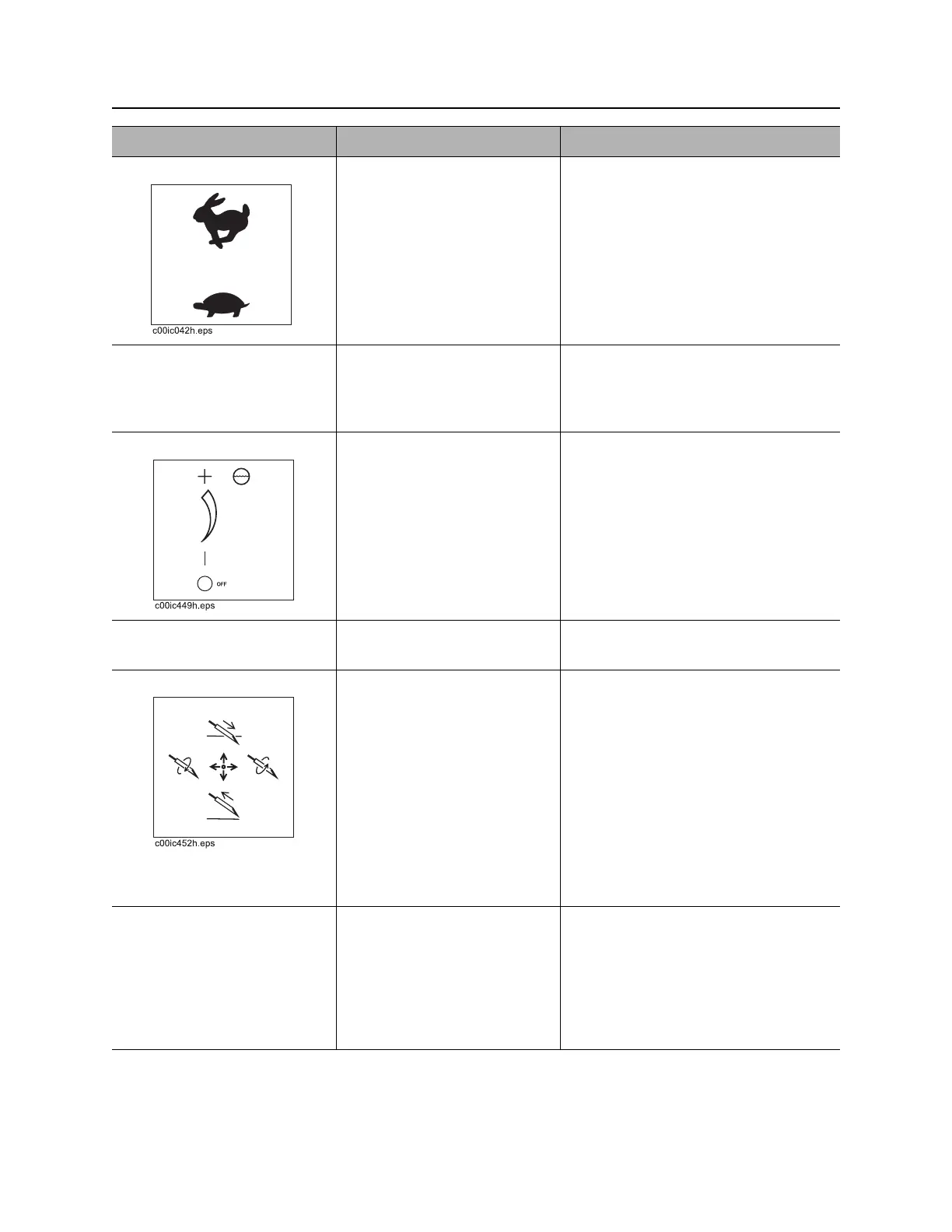

Controls - 26 JT520 Operator’s Manual
Operator’s Station
CMW
2. Engine throttle control To increase engine speed,
push up.
To decrease engine speed,
pull down.
3. Auxiliary wrench
handle
To engage auxiliary wrench,
lower over wrench flats.
To disengage, raise.
4. Fluid flow control To increase flow, turn
counterclockwise.
To decrease flow, turn
clockwise.
To stop flow, turn all the way
clockwise.
5. Pipe lubricator control To apply joint compound a
front wrench, press pedal.
IMPORTANT: Manually apply joint
compound at carriage.
6. Carriage control To move carriage forward,
push.
To move carriage backward,
pull.
To rotate spindle
counterclockwise (breakout),
move right.
To rotate spindle clockwise
(makeup), move left.
7. Anchor collar rotation
lock control
To allow anchor collar to
rotate freely, press pedal.
To prevent anchor collar
rotation, release pedal. Collar
will rotate until pin engages in
hole.
Item Description Notes
