XT1600 Operator’s Manual Controls - 27
Joysticks
CMW

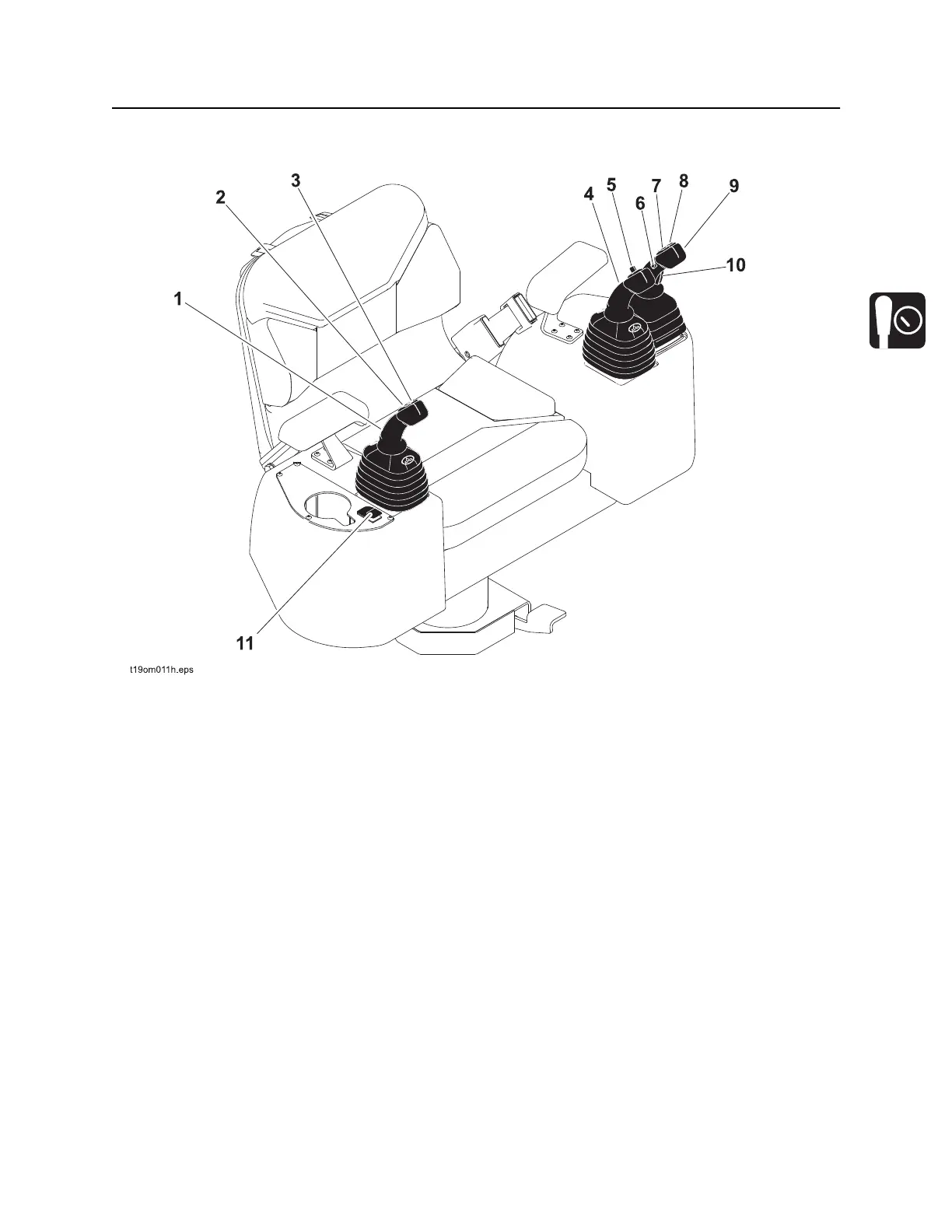

Joysticks
1. Right joystick
2. Attachment drive switch
3. Attachment power switch (optional)
4. Left joystick
5. Boom offset switch
6. 2-Speed ground drive switch
7. Left stabilizer switch
8. Right stabilizer switch
9. Ground drive joystick
10. Operator presence switch
11. Work mode switch
