Controls - 28 XT1600 Operator’s Manual

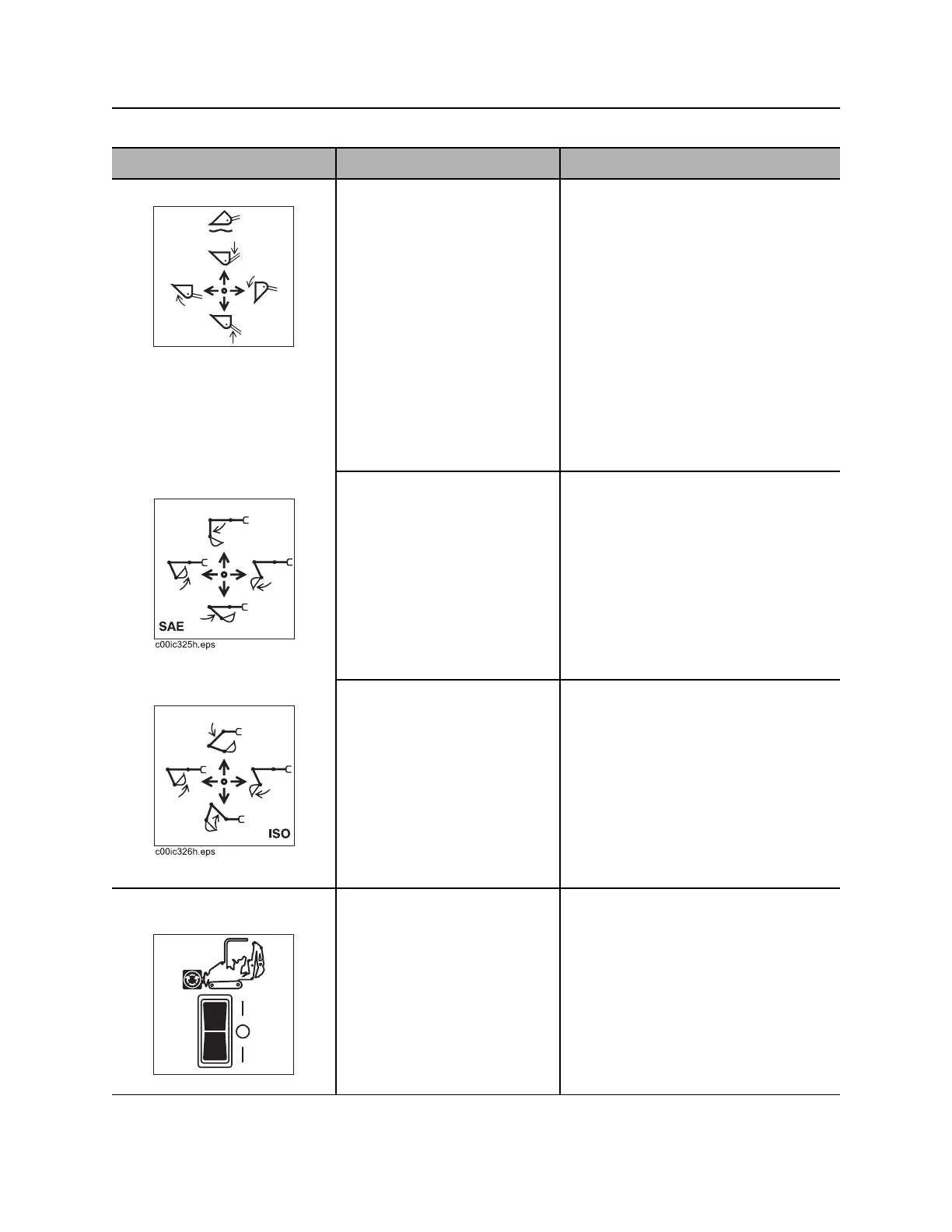

Joysticks
CMW
Item Description Notes
1. Right joystick With work mode switch in
tool carrier mode:
• To move lift arms down,
push.
• To float, push forward to
end. Control will lock into
float position.
• To move lift arms up, pull.
• To curl attachment up,
move to left.
• To curl attachment down,
move to right.
IMPORTANT:
• Control can perform more than
one action at a time. Using them
together, operator can “feather” or
combine operations.
• Do not exceed rated operating
capacity when lifting loads. See
page 91.
With work mode switch in
excavator mode:
• To open bucket, move
right.
• To close bucket, move
left.
• To move dipper in, pull.
• To move dipper out, push.
IMPORTANT:
• SAE excavator control pattern is
shown. To switch from ISO to
SAE mode, see page 26.
• Control can perform more than
one action at a time. Using them
together, operator can “feather” or
combine operations.
With work mode switch in
excavator mode:
• To open bucket, move
right.
• To close bucket, move
left.
• To raise boom, pull.
• To lower boom, push.
IMPORTANT:
• ISO excavator control pattern is
shown. To switch from SAE to
ISO mode, see page 26.
• Control can perform more than
one action at a time. Using them
together, operator can “feather” or
combine operations.
2. Attachment drive
switch
To engage attachment drive
in forward, push top. Switch
will lock into forward position.
To engage attachment drive
in reverse, push and hold
bottom.
c00ic223h.eps
c00ic228h.eps
F
R
