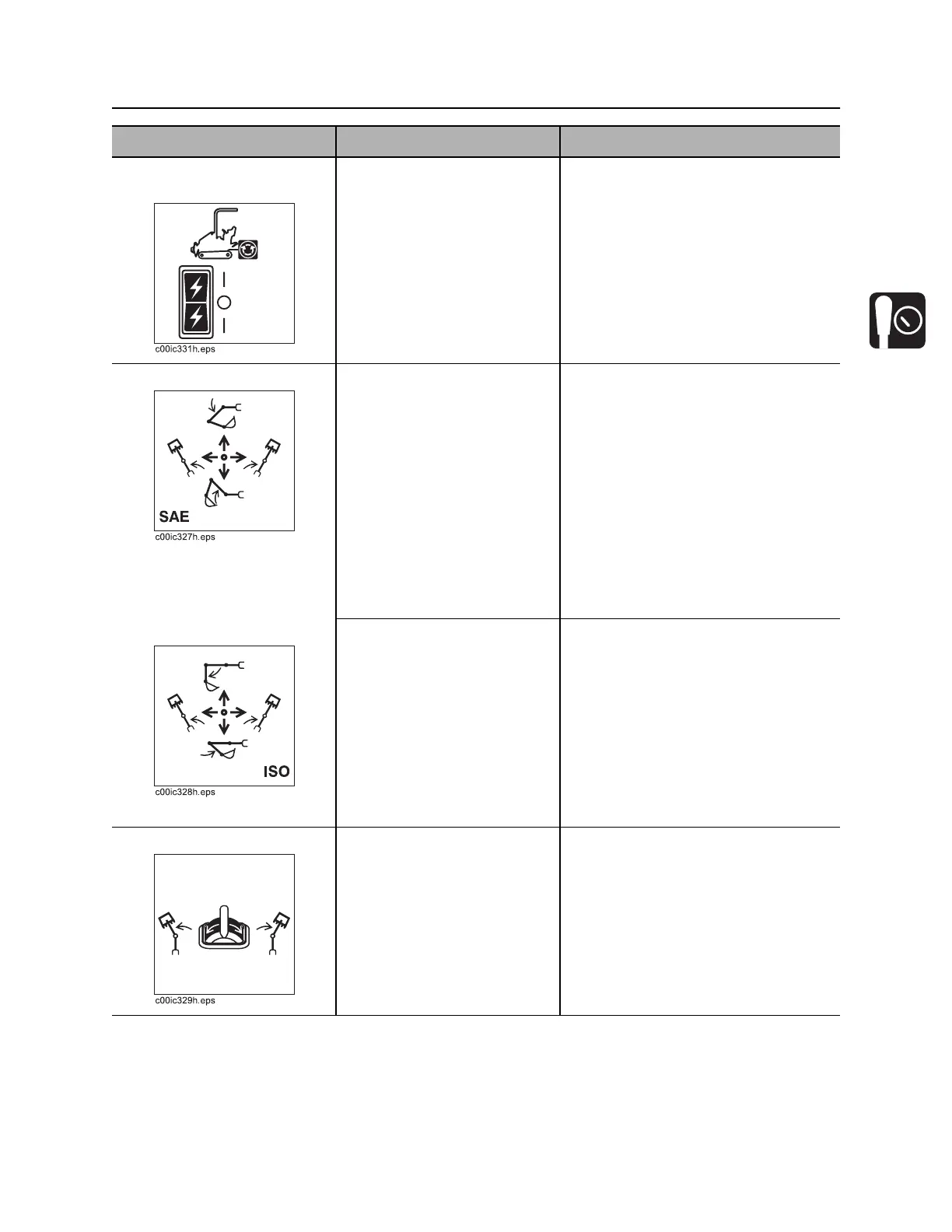

XT1600 Operator’s Manual Controls - 29
Joysticks
CMW
3. Attachment power
switch
To activate attachment
electric power in forward,
push top.
To activate attachment
electric power in reverse,
push bottom.
IMPORTANT: Optional auxiliary
electric kit must be installed for this
switch to function.
4. Left joystick With work mode switch in
excavator mode:
• To swing excavator right,
move right.
• To swing excavator left,
move left.
• To raise boom, pull.
• To lower boom, push.
IMPORTANT:
• SAE excavator control pattern is
shown. To switch from ISO to
SAE mode, see page 26.
• Control can perform more than
one action at a time. Using them
together, operator can “feather” or
combine operations.
• Do not exceed rated operating
capacity when lifting loads. See
page 91.
With work mode switch in
excavator mode:
• To swing excavator to
right, move right.
• To swing excavator to left,
move left.
• To move dipper in, pull.
• To move dipper out, push.
IMPORTANT:
• ISO excavator control pattern is
shown. To switch from SAE to
ISO mode, see page 26.
• Control can perform more than
one action at a time. Using them
together, operator can “feather” or
combine operations.
5. Boom offset switch To swing boom to right, press
right.
To swing boom to left, press
left.
