Controls - 30 XT1600 Operator’s Manual
Joysticks
CMW
6. 2-Speed ground drive
switch
To select high speed, press
top.
To select low speed, press
bottom.
7. Left stabilizer switch While facing the excavator:
• To lower stabilizer on the
operator’s right side,
press top.
• To raise stabilizer, press
bottom.
IMPORTANT: If operator is facing
tool carrier, control operates
stabilizer on operator’s left side.
8. Right stabilizer switch While facing the excavator:
• To lower stabilizer on the
operator’s left side, press
top.
• To raise stabilizer, press
bottom.
IMPORTANT: If operator is facing
tool carrier, control operates
stabilizer on operator’s right side.
9. Ground drive joystick To move forward, push.
To move backward, pull.
To go faster in either
direction, move farther from
neutral.
To stop, return to neutral.
IMPORTANT:
• If operator is facing excavator,
control functions are reversed.
• For steering instructions, see
page 47.

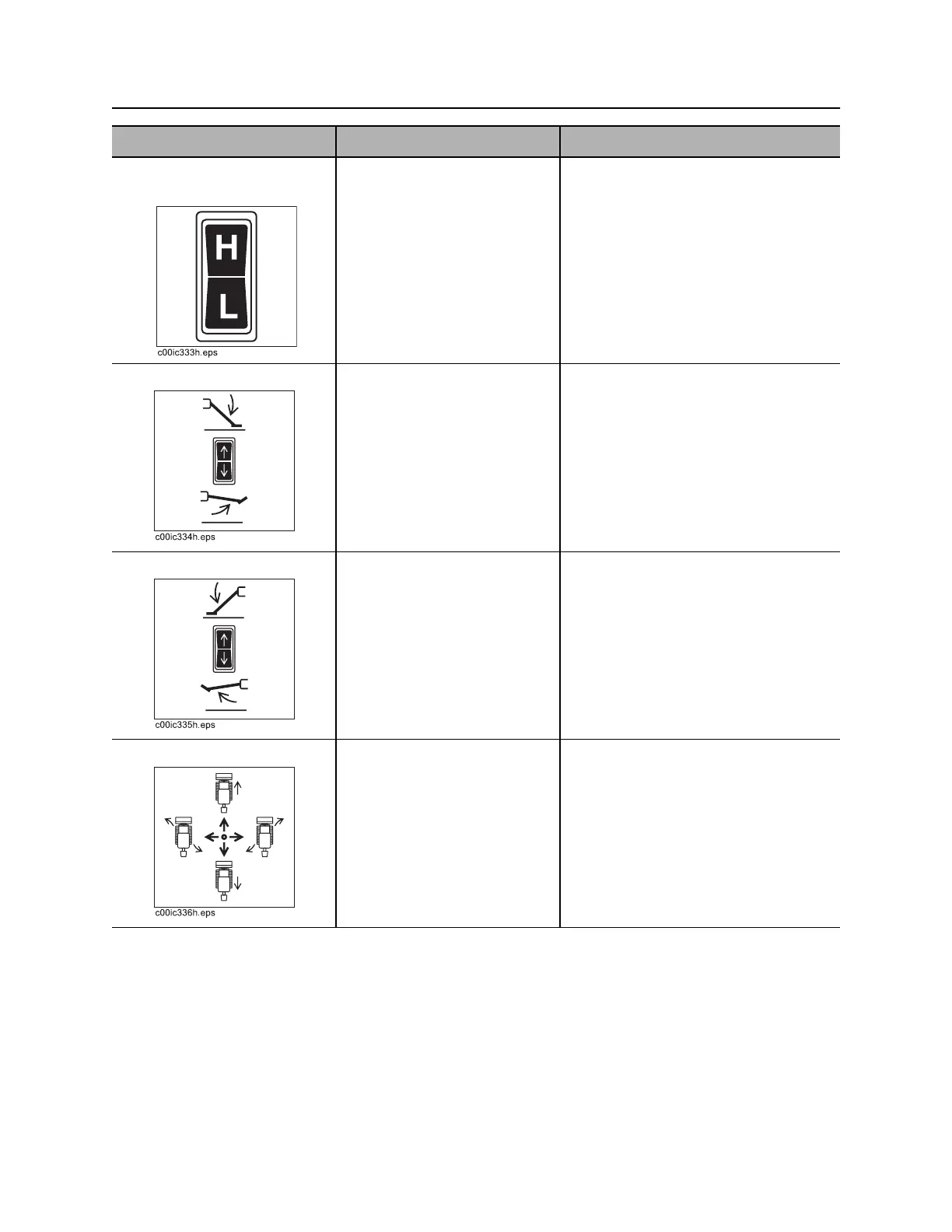

Item Description Notes
