Systems and Equipment - 64 XT1600 Operator’s Manual
Front Attachments
Front Attachments

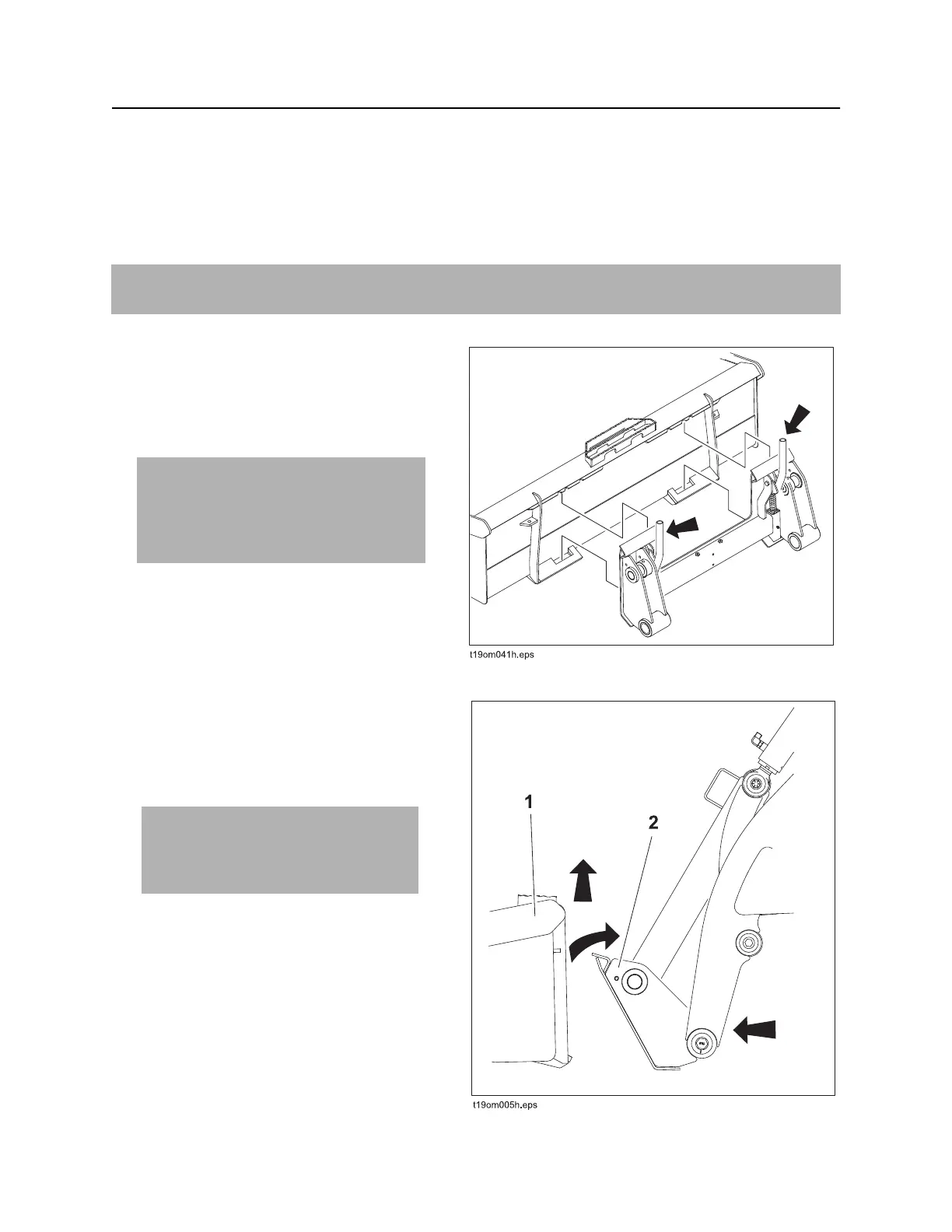

Connect Attachment
Attachment
1. Position attachment on level surface with
enough space behind it to accommodate
unit.
2. Ensure that lock pin handles on mount plate
are turned up, as shown.
3. Start engine.
4. Tilt mount plate (2) forward.
5. Position mount plate in the upper lip of the
receiver plate (1) on attachment.
6. Raise lift arms while tilting back mount plate.
IMPORTANT: Before connecting attachment to unit, ensure that mount and receiver plates are free of
dirt and debris.
Note: If unit is equipped with hydraulic
attachment lock option, move
attachment lock switch to the unlock
position. For information on this
control, see page 21.
IMPORTANT: Attachment should be
raised enough to clear the ground.
Mount plate should be tilted back
fully.
