Specifications - 92 XT1600 Operator’s Manual
CMW

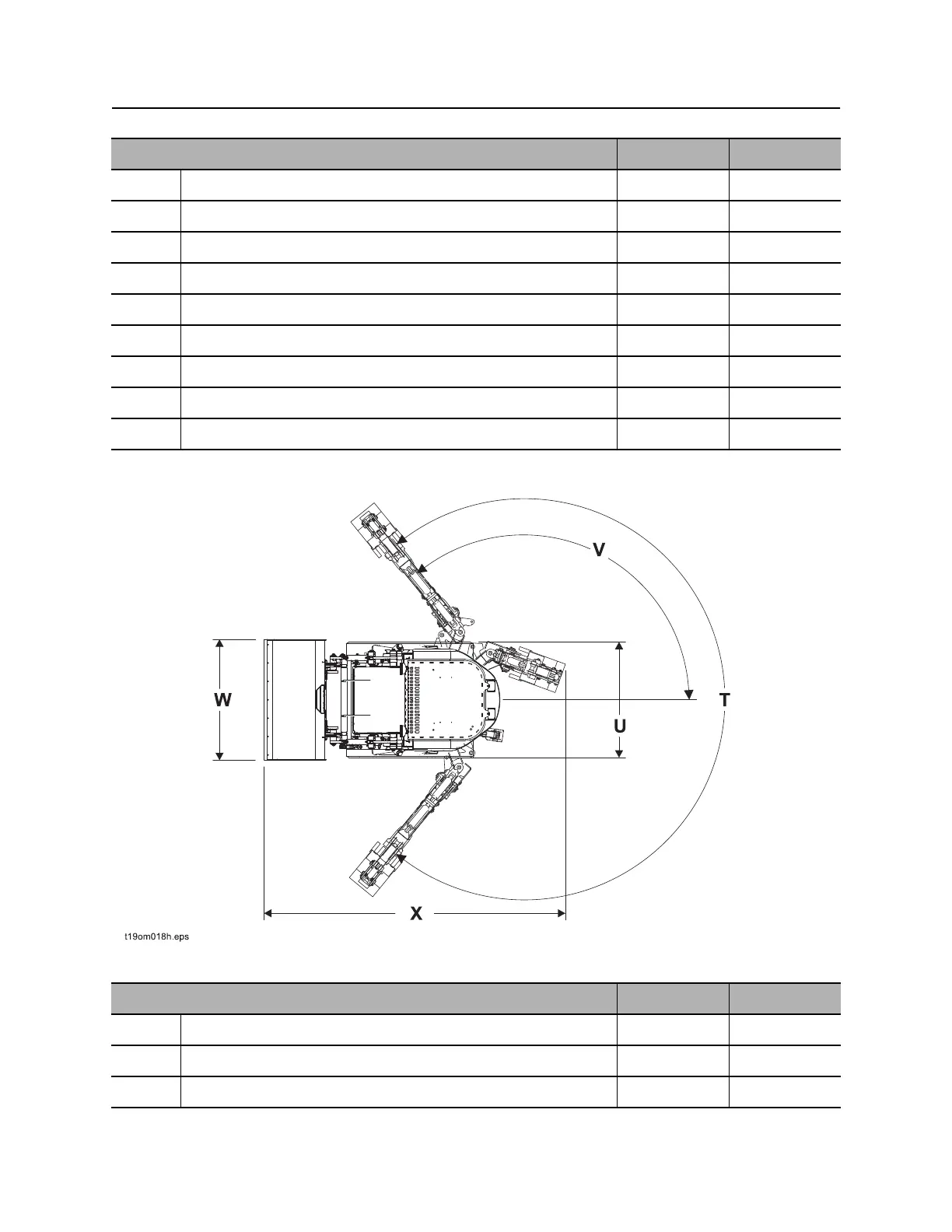

Excavator Dimensions U.S. Metric
K Reach from main swing joint 219” 5.6 m
L Max reach from swing post 177” 4.5 m
M Reach from swing post at grade 176” 4.5 m
N Vertical wall depth, max. 77” 1.9 m
O Dig depth, 2’ (.6-m) flat bottom 133” 3.4 m
P Dig depth, max. 134” 3.4 m
Q Dump height, min. 117” 2.9 m
R Dump height, max. 122” 3.1 m
S Excavator operating height, max. 170” 4.3 m
General Dimensions U.S. Metric
U Machine width 69 in 1.8 m
X Overall machine length, excavator stowed 179 in 4.5 m
Weight 9420 lb 4273 kg
