Remote Controller
1
3
4
5
2
6
7
8 13
10
9
12
14
11

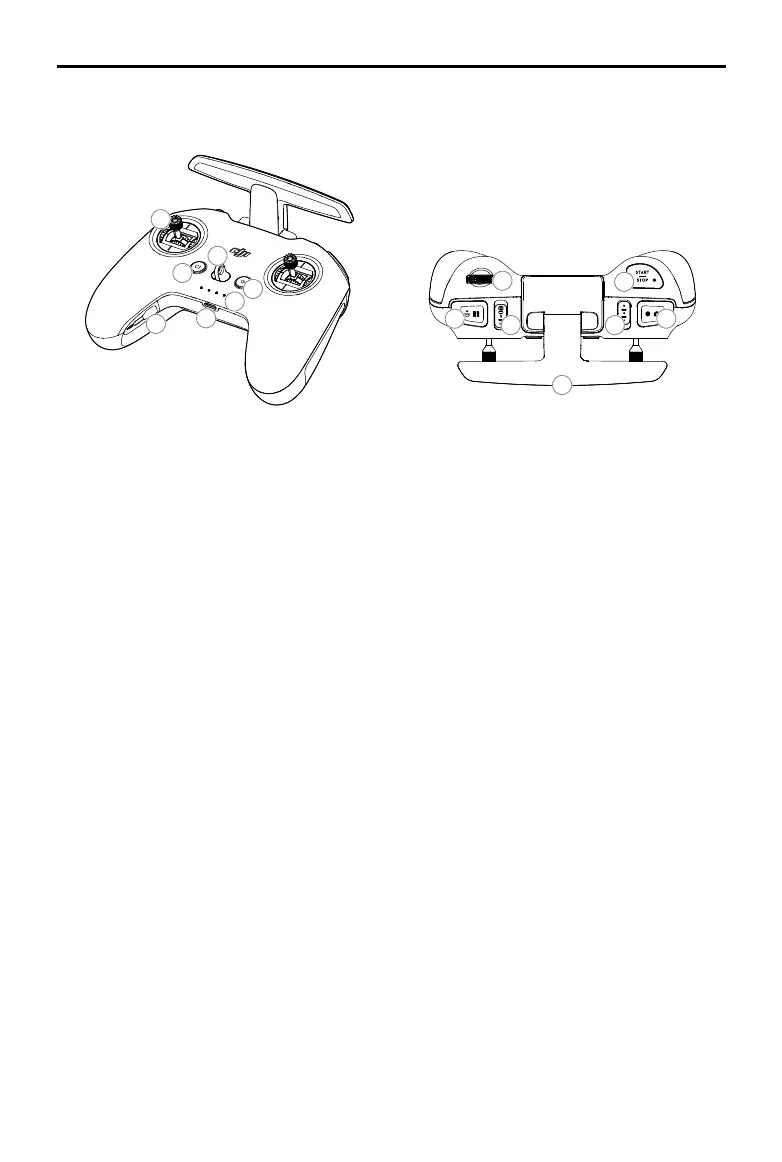

1. Power Button
Press once to check the current battery level. Press once, then again, and hold to power the remote
controller on or o.
2. Battery Level LEDs
Displays the current battery level of the remote controller.
3. Lanyard Attachment
4. C1 Button (Customizable)
The function of this button can be adjusted in the goggles. By default, press once to adjust or disable
Coordinated Turn (S Mode). Press twice to enable or disable ESC Beeping.
5. Control Sticks
Used to control the movements of the aircraft. The control sticks mode can be set in the goggles. The control
sticks are removable and easy to store.
6. USB-C Port
For charging and connecting the remote controller to the computer.
7. Control Sticks Storage Slot
For storing the control sticks.
8. Flight Pause/RTH Button
Press once to make the aircraft brake and hover in place (only when GPS or Downward Vision System are
available). Press and hold the button to initiate RTH. The aircraft returns to the last recorded Home Point.
Press again to cancel RTH.
9. Gimbal Dial
Controls the tilt of the camera.
10. Flight Mode Switch
Switch between Normal, Sport, and Manual mode. Manual mode is disabled by default and must be enabled
in the goggles.
11. C2 Switch (Customizable)
The function of this switch can be adjusted in the goggles. By default, toggle the switch to recenter the
gimbal and adjust up and down.
1
3
4
5
2
6
7
8 13
10
9
12
14
11

dji FPV Specifications

General

Product type	Battery
Compatibility	FPV Drone
Product color	Black
Brand compatibility	DJI
Battery voltage	22.2 V
Battery capacity	2000 mAh
Battery LED indicator	Yes
Minimum operating temperature	5 °C
Quantity per pack	1 pc(s)

Weight and Dimensions

Weight	295 g
