1.2 Surface Mount Only
Surface mount units can be mounted directly to a wall or pilaster, or can be post mounted using a
DoorKing mounting post (p/n 1200-045 and 1200-046). Be sure the unit is mounted securely and is
not subject to vibration from closing doors or gates.
WARNING! If this entry system is used to control a vehicular gate with an
automatic gate operator, the entry system must be mounted a minimum of
ten (10) feet away from the gate and gate operator, or in such a way that a
person cannot operate the entry system and touch the gate or gate operator
at the same time.
1.75
.875
12
6.50
.875 D
5.0
3.375
1.625
1.75
.875 D

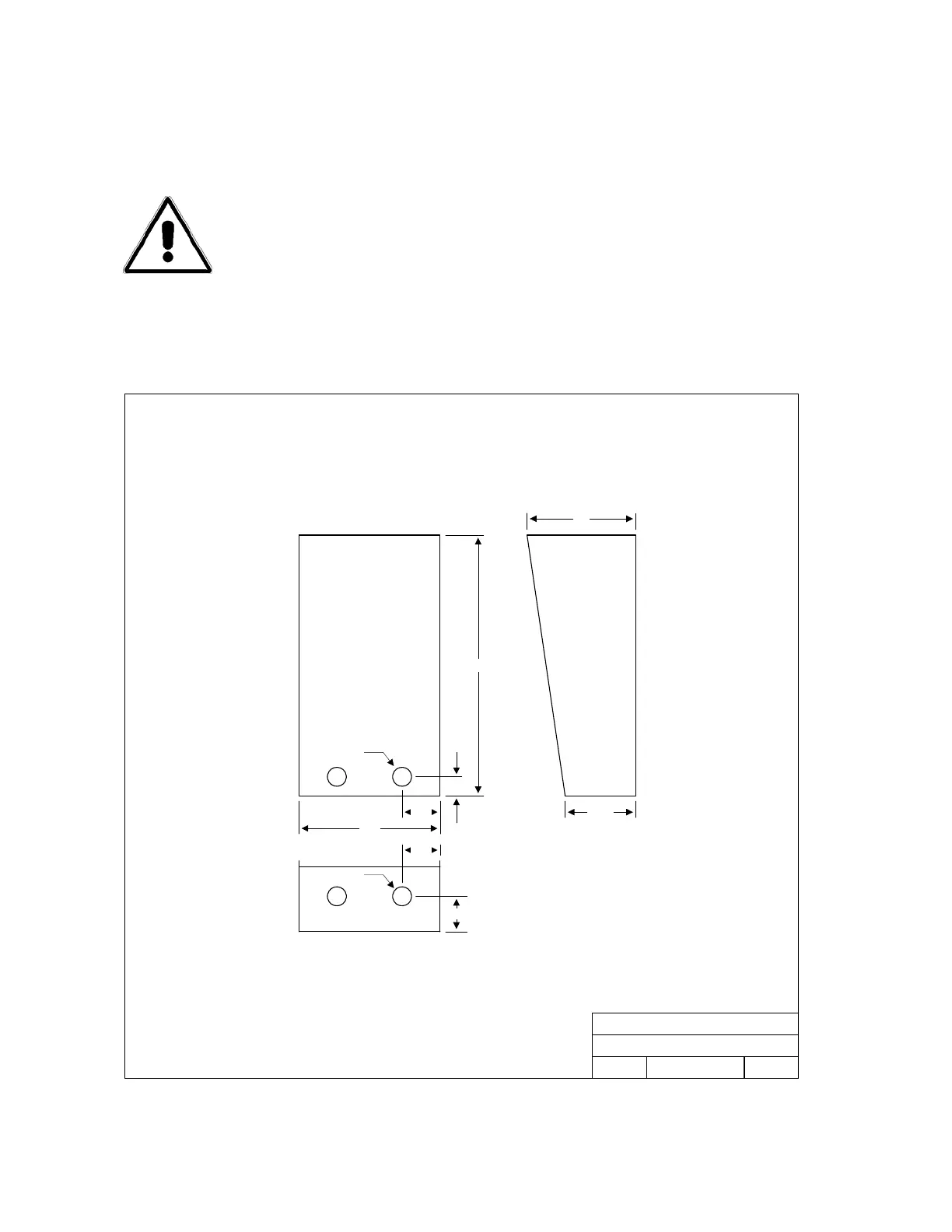

1802 Surface Mount Housing
DOORKING, INC., INGLEWOOD, CA 90301
Date: Dwg. No.
1802 Surface Mount Case
Rev.
Title:
9/03
A
M1800-065-9
To Next Page
