aIr 2.2 INSTaLLING aN aIr SYSTEm
INCLUDED WITH YOUR LUXE® IS A BOTTOM-LINE style integrated air on/off ASA for use with screw-in
style compressed air systems. The grip integrated ASA can be mounted directly to the Luxe® grip frame,
or mounted with forward (included) or reverse (optional) grip integrated air rails.

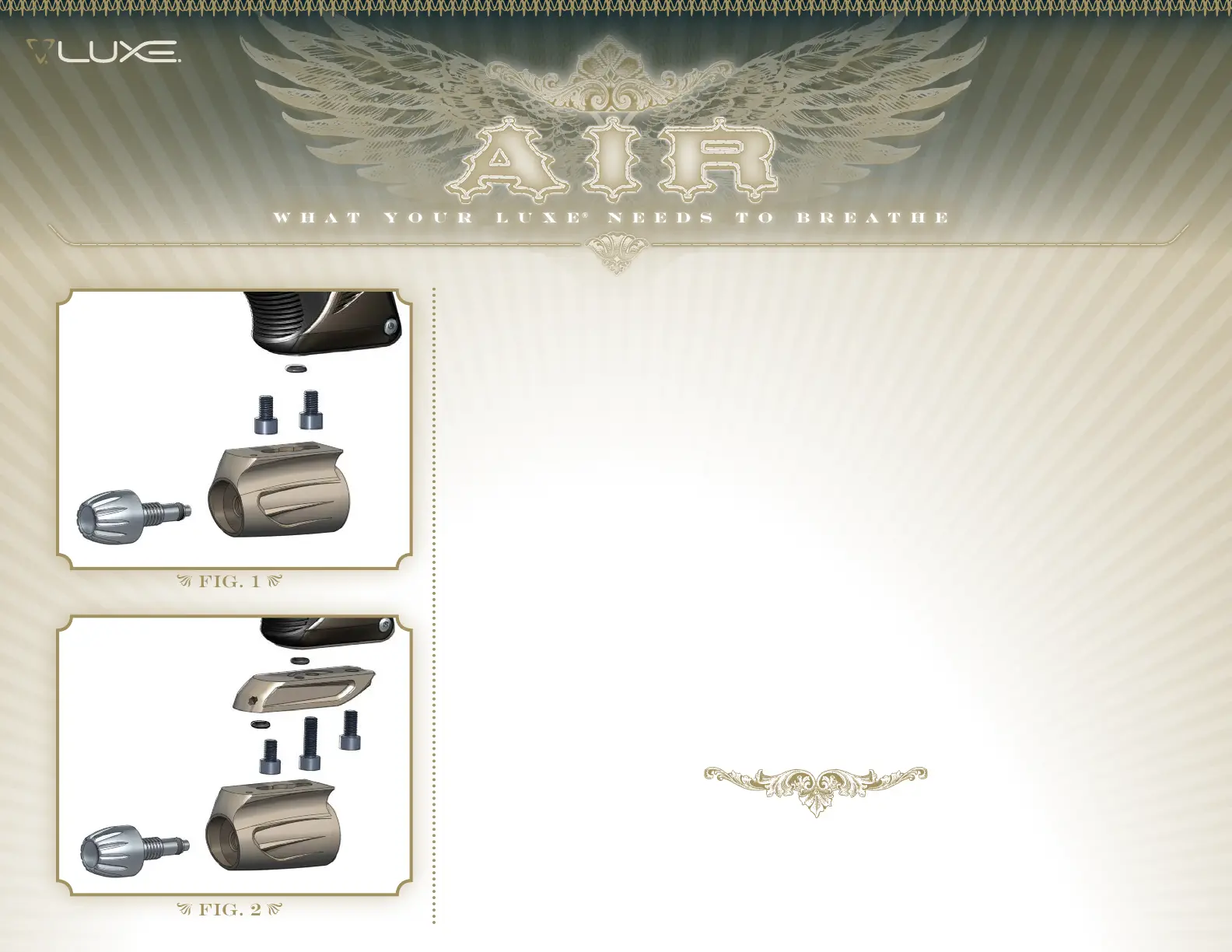

When mounting the bottom-line adapter directly to the grip frame, it must first be disassembled by
unscrewing and removing its control knob. Each of the short 10-32 socket head cap screws are inserted
in the center slot in the top of the bottom-line adapter [FIG. 1,] then slid to the front or back. A 5/32-inch
allen wrench is guided up through holes in the bottom of the adapter to tighten the screws. If needed, the
control-knob's o-ring may be lightly lubricated with GR33SE™ before it is reinstalled.
The Air Integrated Rail offers an alternative configuration with a slightly lower and forward placement of
the HPA system. A short socket head cap screw is used through the rail’s rear hole to secure it to the grip
frame [FIG 2.] A long socket head cap screw is slid into the bottom-line's rear mount point while a short
socket head cap screw is used in the front, installing with the same procedure as direct-mounting.
When installing a new air system, accessory or mount, the grip must be removed and the battery removed
from the Luxe® (see HARDWARE 3.6.) Only use mounting screws which will reach through the air system,
accessory or mount, and fully engage the screw threads in the grip frame, but not extend into the open
space of the grip frame far enough that they interfere with the placement of the battery. Installing mount
screws while the battery is removed will ensure that a screw which is too long does not accidentally
damage the lithium-polymer battery [FIG. 3.]
In addition to grip integrated air systems, the Luxe® may also use standard hose based air systems and
accessories, bypassing the grip integrated air system. Such accessories are mounted the same way, but
will require the use of a vertical regulator (see ADVANCED MAINTENANCE 6.2 for removal instructions) which
accepts input via macroline or steel braided hose and provides output in the range of 170-220 psi [FIG. 4.]
 FIG. 2 
