FIG. 1
aDVaNCED maINTENaNCE 6.5 QUICk-STrIP PLUG DISaSSEmBLY
IT MAY OCCASIONALLY BECOME NECESSARY to disassemble the Luxe® Power Core’s quick strip plug.
First, remove and disassemble the Power Core, following the instructions in MAINTENANCE 5.1.
Unscrew the bolt guide from the quick strip plug and remove it [FIG. 1.] Lift the quick-strip latch and use a
3-32-inch allen wrench to remove the screw that secures its cover [FIG. 2.] The quick-strip latch cover will
then lift off of the latch. You will now be able to see the latch return o-ring. This o-ring does not create a
seal, instead it acts as a spring to keep the quick-strip latch closed. It may be removed with an o-ring pick
[FIG. 3.] Using a 0.050-inch allen-wrench, unscrew and remove the quick-strip latch pivot pin from the rear
of the quick-strip plug [FIG. 4.]
QUICK-STRIP LATCH COVER
LATCH COVER SCREW
LATCH RETURN O-RING
QUICK-STRIP LATCH
PIVOT PIN
DEGASSING VALVE CORE PIN
QUICK- STR IP PLUG
FIRING CHAMBER
BOLT
BOLT GUIDE
1
2
3
4
6
5
7
10
9
8
1
2
3
4
5
6
7
8
9
10

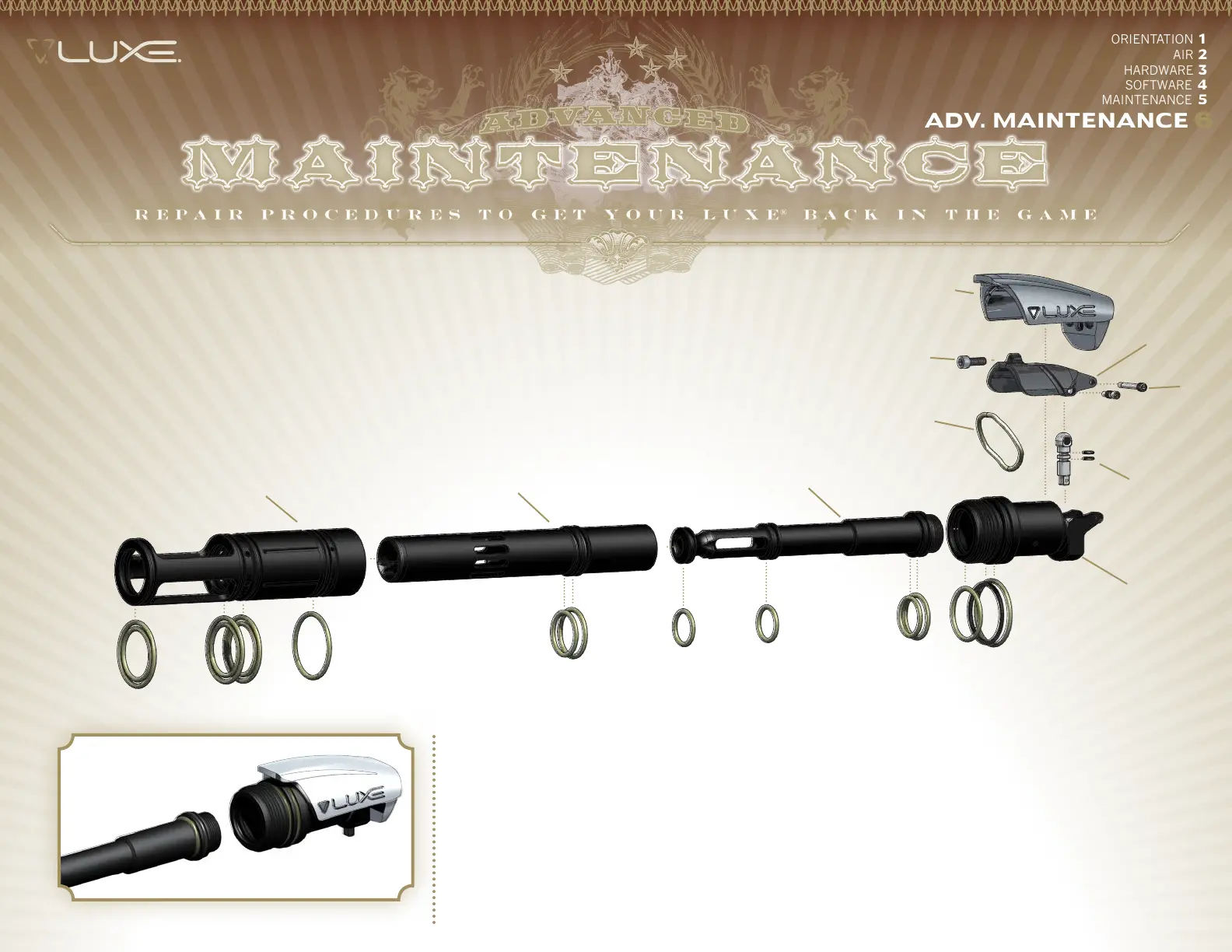

maIN LUXE® POWEr COrE COmPONENTS
