PaGE 35

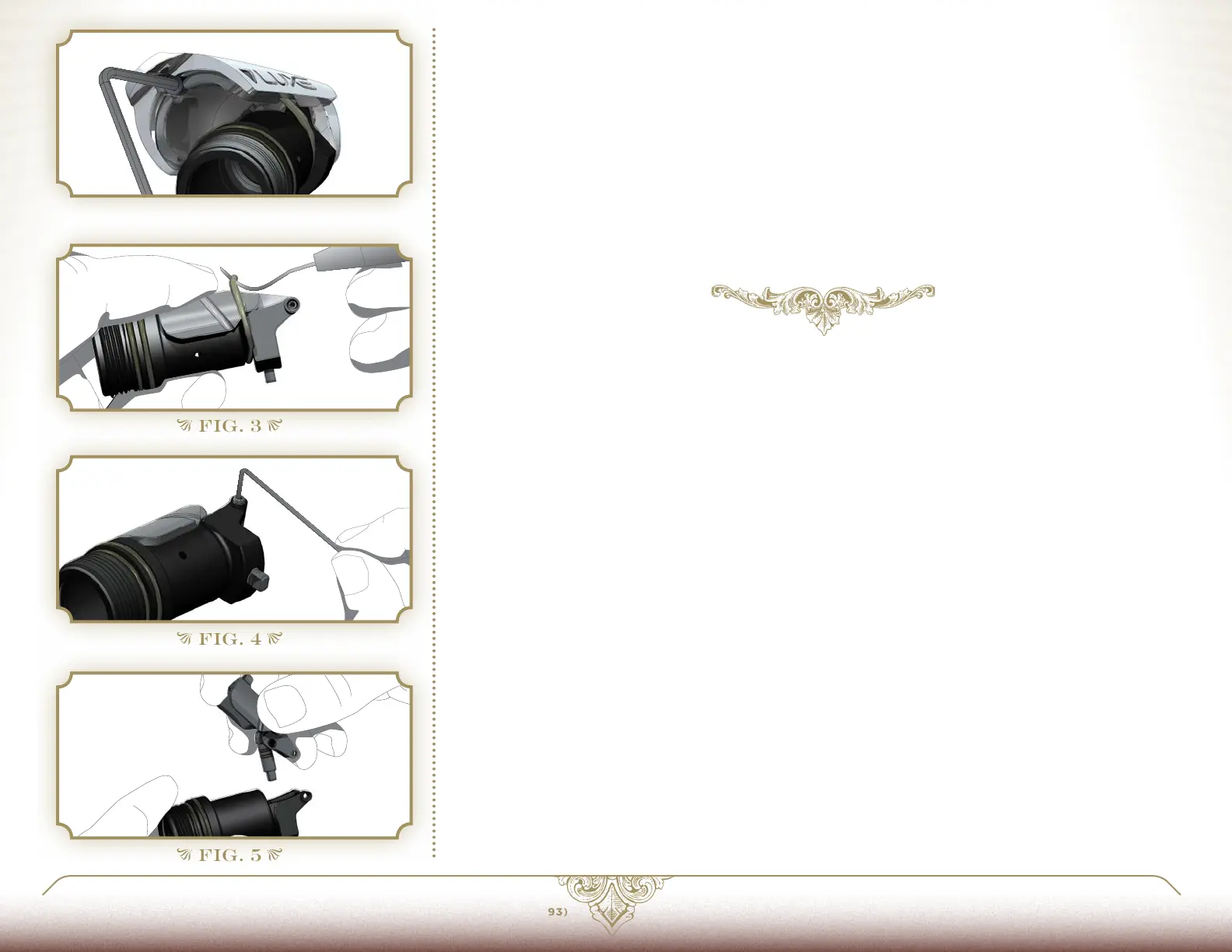

6.5 QUICk-STrIP PLUG DISaSSEmBLY
With the pin removed, the latch can be lifted upward, exposing the degassing valve core and its black o-rings
[FIG. 5.] If the quick-strip latch was closed while your Luxe® was still connected to a gas supply, and has
developed a leak, these are the o-rings likely to have been damaged. To replace, simply remove them with an
o-ring pick and slide new o-rings into place, lubricating them lightly with GR33SE™.
The degassing valve core pin also serves as the locking pin which secures the Power Core in the Luxe® body.
Inspect the lower end of the degassing valve core pin for signs of wear or bending, its edges should be
square and undamaged.
Reassembly of the Power Core is performed in reverse of disassembly. Lower the cleaned and GR33SE™
lubricated degassing valve core down into the quick-strip plug, and align the rear of the quick-strip latch.
Slide the quick-strip latch pivot pin into place, and screw it in, taking care not to over-tighten. Use a small
amount of Blue Loctite® 242 or equivalent threadlocker (if unavailable, clear nail polish may substitute) on
the threads of the latch cover screw and pivot pin. Lift up the latch, set the latch cover in place, and secure
it with its screw. Next screw the bolt guide back into the quick-strip plug, and re-assemble the Power Core.
