maINTENaNCE 5.2 BaLL DETENTS & VISION EYES
THE LUXE® QUICK-SNAP BALL DETENT ASSEMBLIES serve both to prevent double-feeding of paint, and
to protect the Vision anti-chop eye system. Their unique magnetic and physical latch systems keeps them
secure, while allowing for easy tool-free maintenance. There is a ball detent assembly on each side of the
marker, and both should be cleaned and inspected in the same manner.

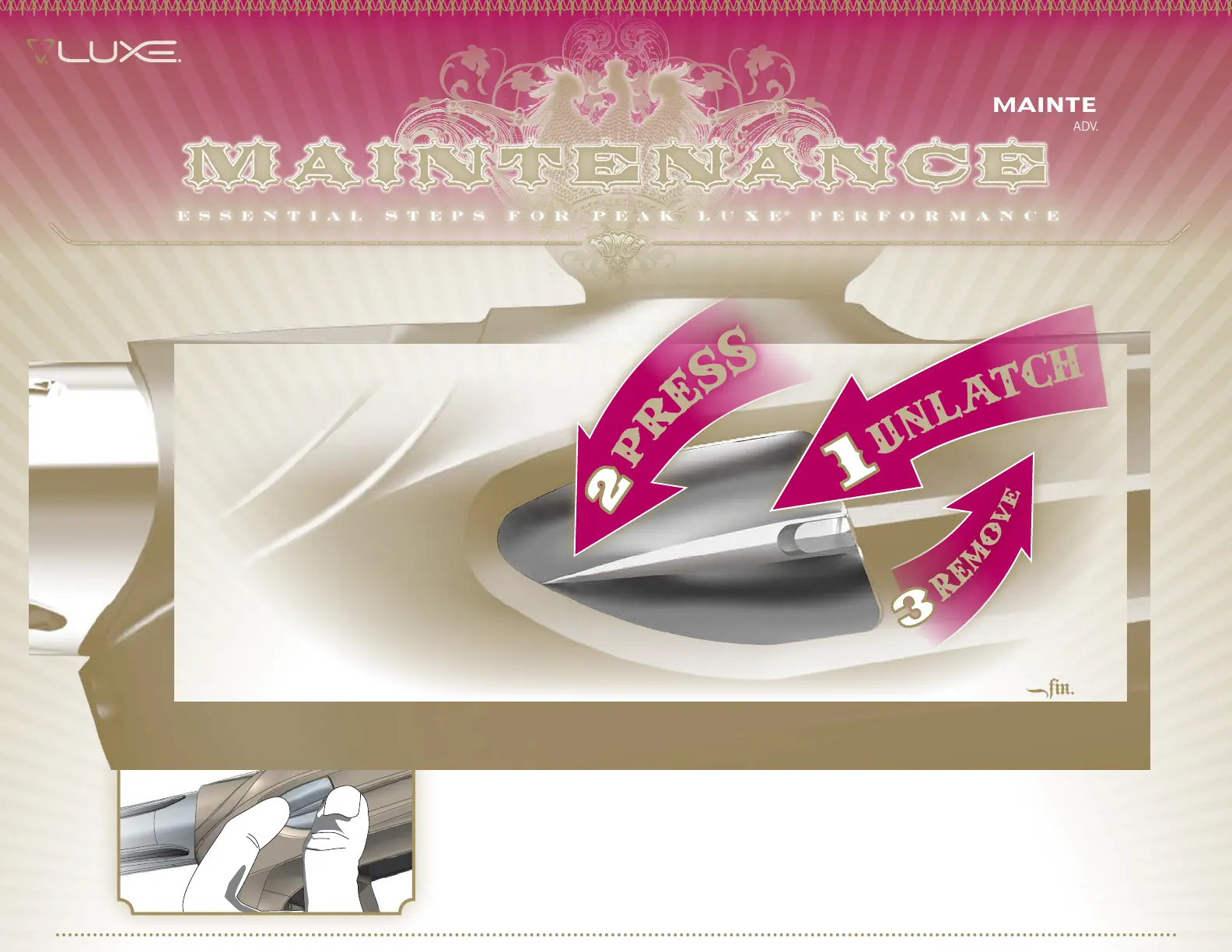

STEP ONE PrESS DETENT aSSEmBLY
PRESS ON THE FORWARD POINT OF THE BALL DETENT ASSEMBLY while sliding the Quick-Snap latch
forward. This will separate the magnets at the rear, pushing the assembly’s back edge out from the Luxe®
body.
THE LUXE® BALL DETENT ASSEMBLIES PROVIDE INSTANT TOOL-FREE ACCESS
FOR CLEANING THE BALL DETENTS AND VISION SYSTEM IN THE FIELD.
Basic Guide to REMOVING the
LUXE
®
QUICK-SNAP DETENT ASSEMBLIES
