5
STEP FOUr CLEaN THE POWEr COrE
USING A CLEAN, SOFT CLOTH, wipe dirt, paint debris and old grease from all of the Power Core surfaces.
Inspect all o-rings and replace any which show significant signs of wear, or have rips, tears or other damage.
The windows milled into the side of the fire chamber allow easy access for inspecting internal o-rings and
changing them if necessary. Make sure the gas vents in the sides and front of the fire chamber and bolt are
clean and clear.
STEP FIVE LUBrICaTE & rEINSErT THE POWEr COrE
LUBRICATE ALL O-RINGS WITH A LIGHT COATING of GR33SE™ marker grease. Take care to ensure that
grease is applied to inner o-rings at the front and middle of the fire chamber. Slide the bolt and fire chamber
onto the bolt guide, and screw the fire chamber to the quick-strip plug. Insert the Power Core into the rear of the
Luxe® body, with the quick strip latch lifted up. Once the Power Core is in position, close the quick strip latch.
4
PaGE 25
5.1 LUXE® POWEr COrE
2
3

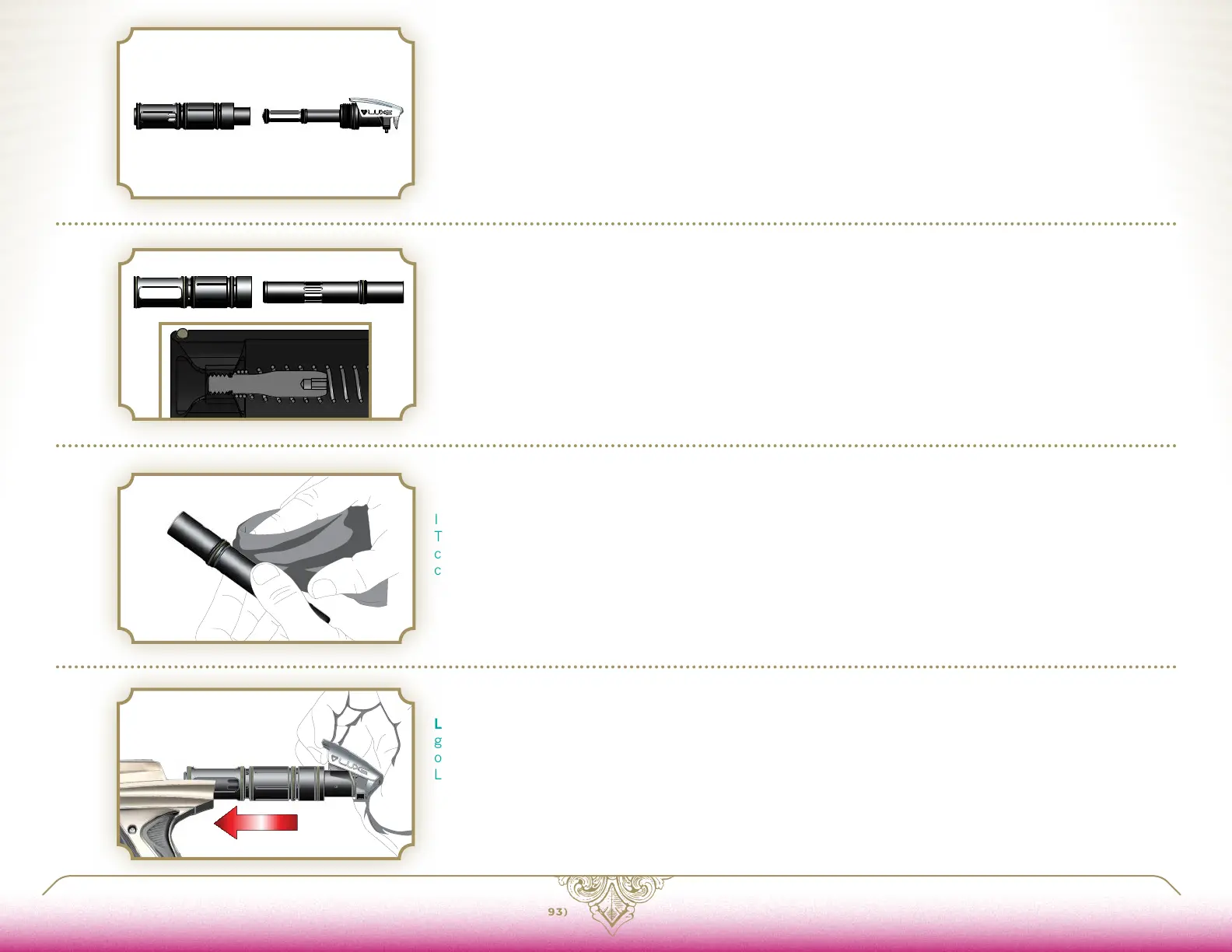

STEP TWO rEmOVE THE FIrE CHamBEr
BEGIN DISASSEMBLING THE LUXE® POWER CORE by unscrewing the fire chamber from the quick strip plug,
then slide the bolt and fire chamber off of the bolt guide.
STEP THrEE rEmOVE THE BOLT
SLIDE THE BOLT OUT of the fire chamber. Note the bolt spring mounted inside the bolt. The bolt spring
eliminates bolt stick problems (extra friction causing the bolt to move slowly or delaying bolt movement) for
improved performance in dirty or cold conditions. If the bolt spring is damaged, it may be removed and the Luxe
may safely be operated without it until a replacement can be obtained from DLX. If the Luxe is operated without
a bolt-spring, it may be necessary to increase the value of the first shot drop setting (see
SOFTWARE 4.6). The bolt
spring screw in the center of the bolt spring may be removed through the back of the bolt or reinstalled using
the t-handle allen-wrench included with the Luxe. The bolt spring screw is secured with Loctite® 271 (red) or
equivalent, so the bolt face must be heated with a heat gun or lighter before removal. When reinstalling the bolt
spring screw, it must be secured in place with thread locking compound. The screw must not be over-tightened.
Its end should be just below the surface of the bolt face.
Loctite is a registered trademark of Henkle
