maINTENaNCE 5.1 LUXE® POWEr COrE
THE HEART OF YOUR LUXE® is the Luxe® Power Core. This single module comprises both the marker's
bolt and exhaust valve system. Its compact, tool-free design makes the Luxe® incredibly fast and simple to
maintain. The Luxe® should be disassembled and cleaned any time it shows erratic performance, becomes
contaminated with paint, dirt or other debris, or for preventative maintenance after 3 or 4 days of use.
STEP ONE UNLOaD aND DEGaS YOUr LUXE®
UNLOAD AND DEGAS YOUR LUXE® (see HARDWARE 3.2.) Turn off and or remove the gas supply. Remove the barrel
then lift the quick-strip latch at the rear of the marker and pull out the Power Core. If the Power Core has not been
removed recently it may need to be wiggled slightly to break o-ring friction.
PULL

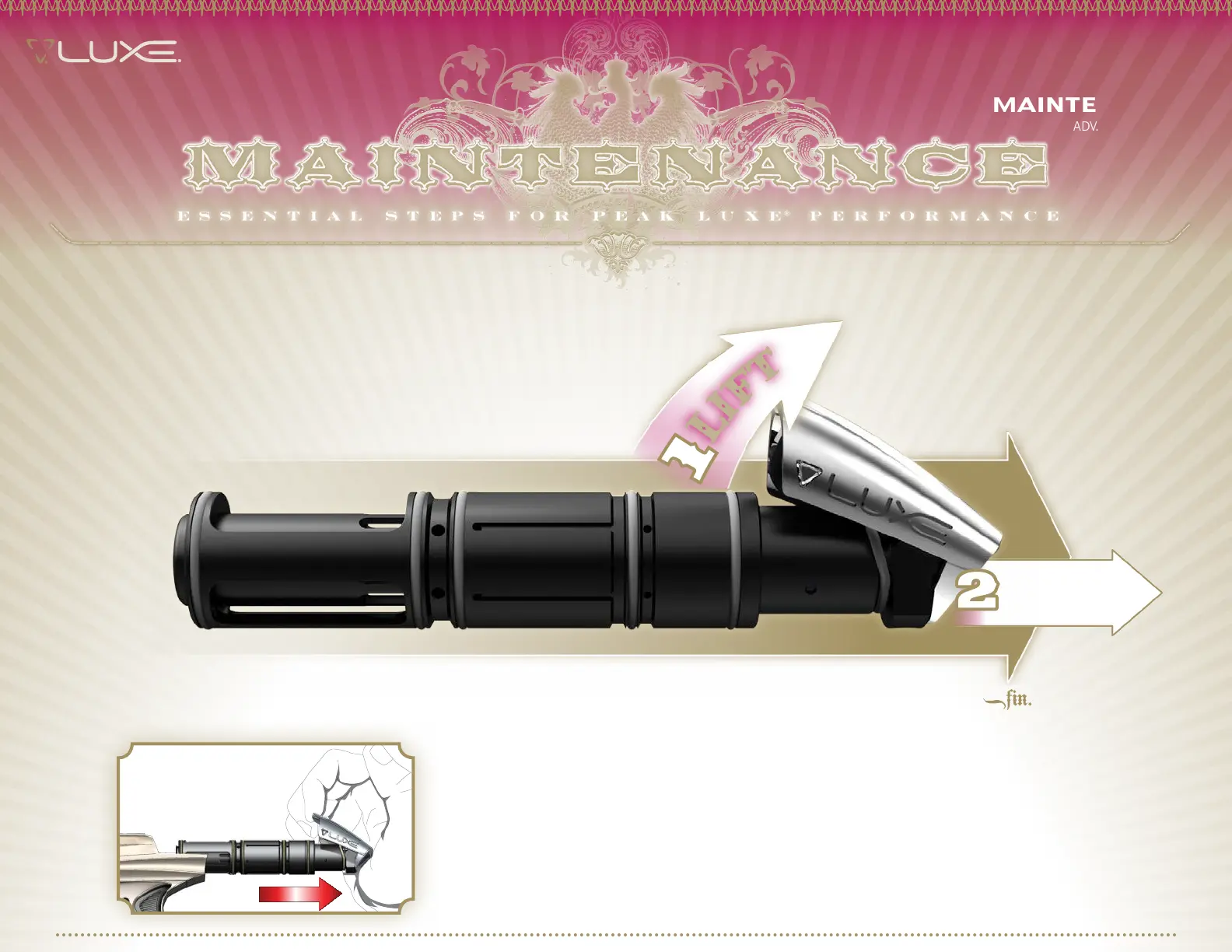

THE INNOVATIVE LUXE® POWER CORE CAN BE REMOVED IN
SECONDS, NO TOOLS REQUIRED.
Basic Guide to RELEASING the
LUXE
®
POWER CORE QUICK-STRIP LATCH
